Specifications
1.Standard: RoHS Compliance2.HS Code: 8544200000
3.Small Orders Accepted
4.Customized specifications are accepted
RG8 A/U Coaxial Cable with High Quality
1. RG8 A/U Coaxial Cable specification:
Sample: 7*0.72mm BC +7.25mmFPE + Al-foil + 64x 0.12mm BC +10.24mm PVC
RG58/U Coaxial Cable UL approved with 18AWG Conductor and 75Ω Impedance
Conductor: 0.81mm bare copper/copper clad steel
Dielectric: 3.0mm foam polyethylene
First shield: Al-foil
Second shield: aluminum wire braid 60 or 90% coverage
Jacket: 5.0mm black/white PVC
Flame retardant (CM, CMX, CL2, CL2X, CATV, CATVX Type) &UV Resistant is available.
Applications:Used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required
2. RG8 A/U Coaxial Cable Performance:
| Construction | |||
| Center Conductor: | 7*0.724mm Bare Copper/ CCS | ||
| Dielectric: | 7.25+0.05mm PE | ||
| Braid Coverage: | 80%192 x0.12 AL/ BC/ TC | ||
| Jacket: | 10.3+0.05mm PE | ||
| Jelly/APD | Per Customers' Special Requirement | ||
| Characteristics | |||
| Sparker Test: | 3000VAC | ||
| Impedance: | 75+3 Ohm | ||
| Capacitance: | 81+3pF/m | ||
| Velocity of Propagation: | 85% | ||
| Return Loss: | 20dB min (5-2300MHz) | ||
| Attenuation | |||
| Attenuation | [@68o F. (20o C.)] | ||
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) | |
| 5 | 0.4 | 1.31 | |
| 10 | 0.5 | 1.64 | |
| 50 | 1 | 3.28 | |
| 100 | 1.4 | 4.59 | |
| 200 | 1.8 | 5.9 | |
| 400 | 2.6 | 8.52 | |
| 700 | 3.6 | 11.8 | |
| 900 | 4.1 | 13.44 | |
| 1000 | 4.4 | 14.43 | |
| 1500 | 5.5 | 18.03 | |
| 1800 | 6.1 | 20 | |
| 2000 | 6.5 | 21.31 | |
| 2500 | 7.5 | 24.59 | |
| 3000 | 8.3 | 27.21 | |
| 4000 | 9.9 | 32.46 | |

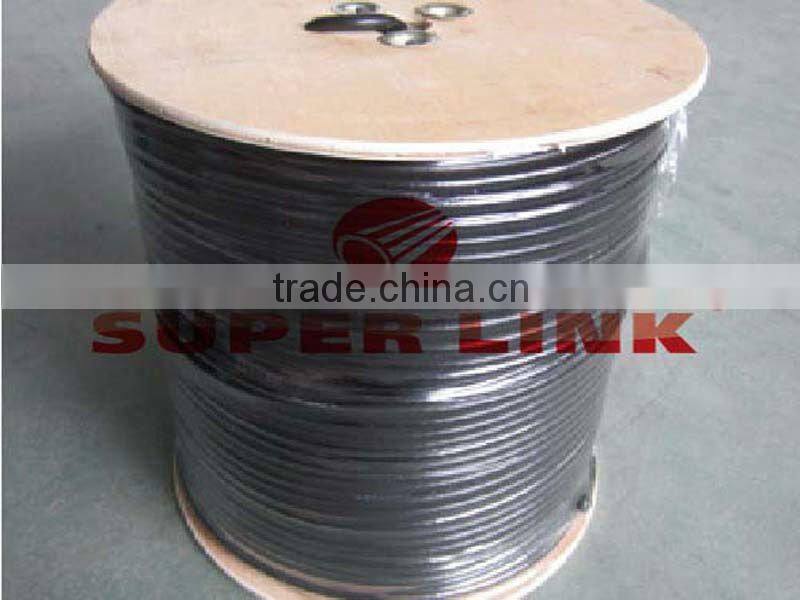

3. RG8 A/U Coaxial Cable Product Show

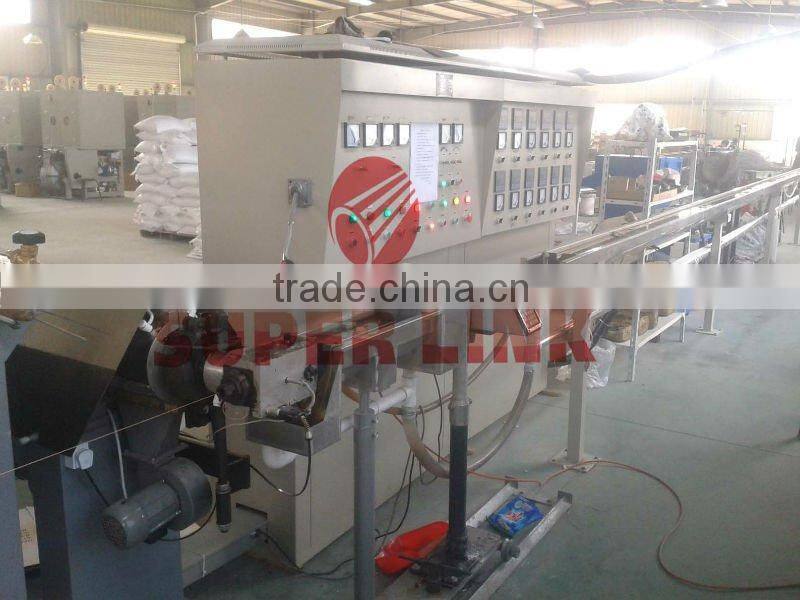

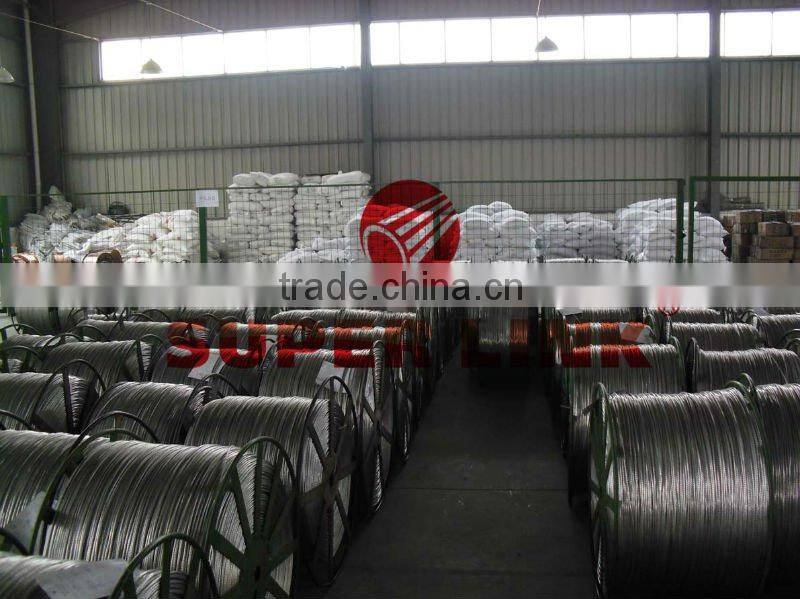

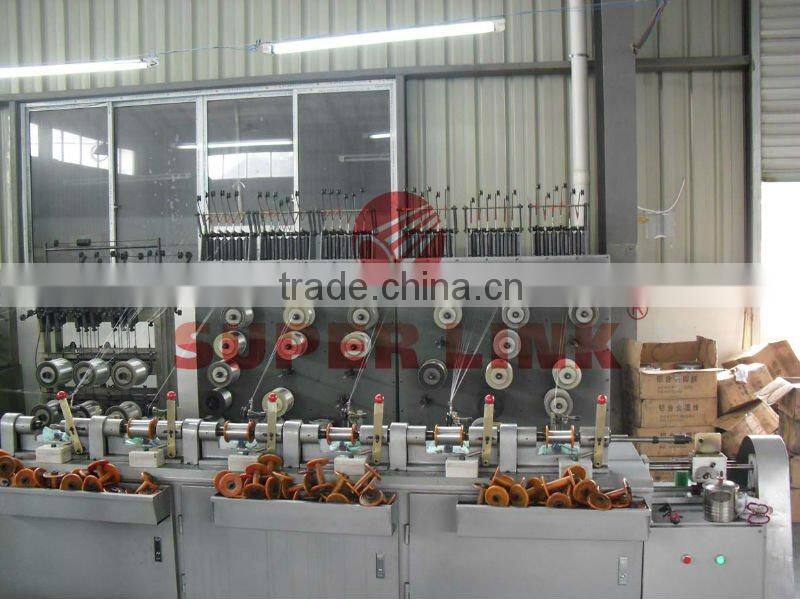

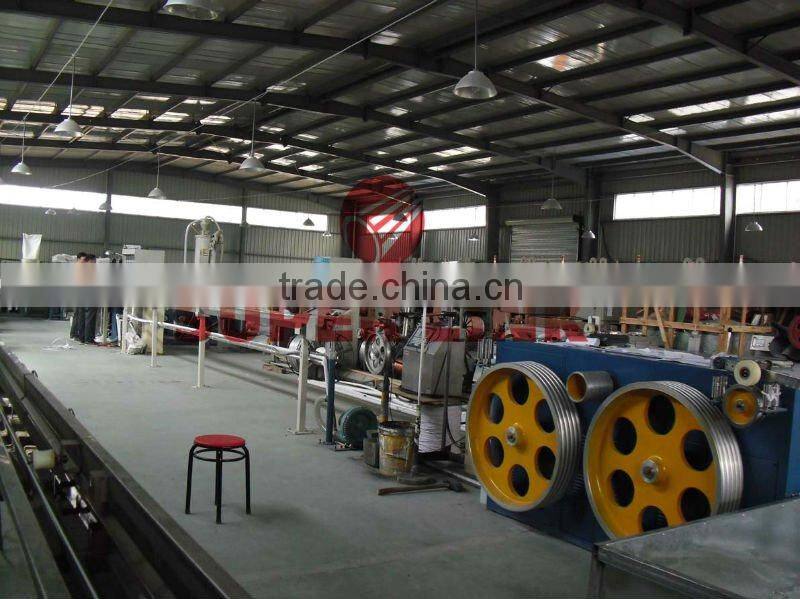

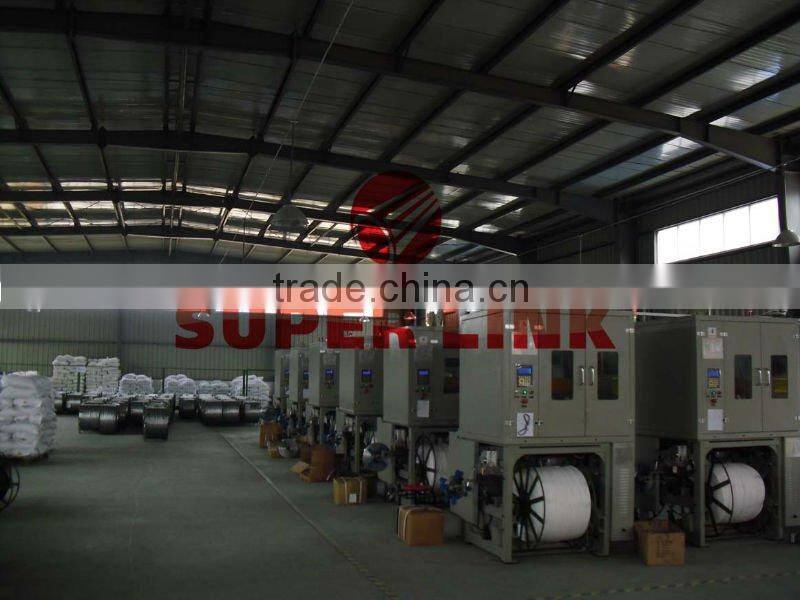

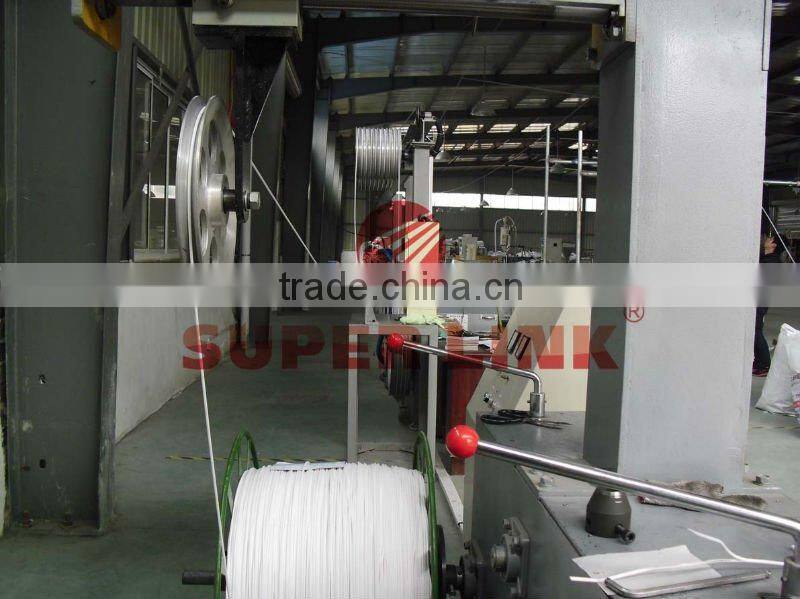

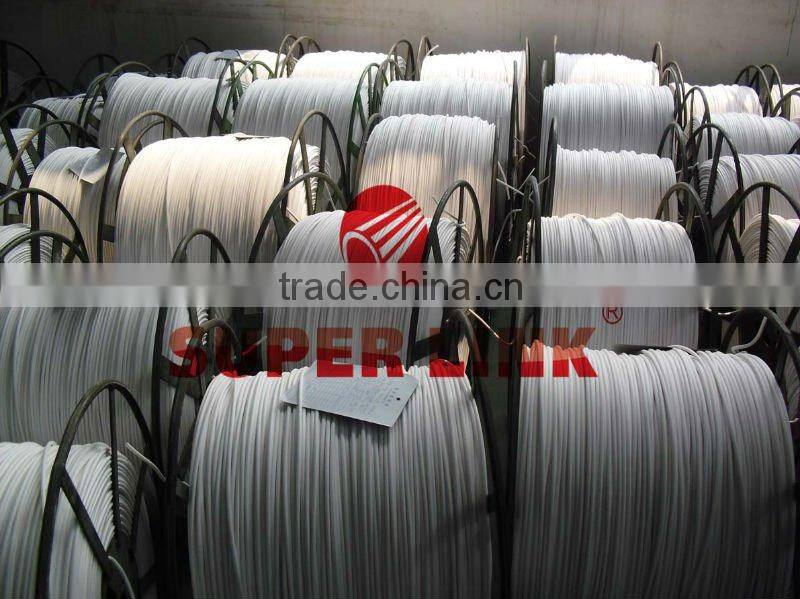

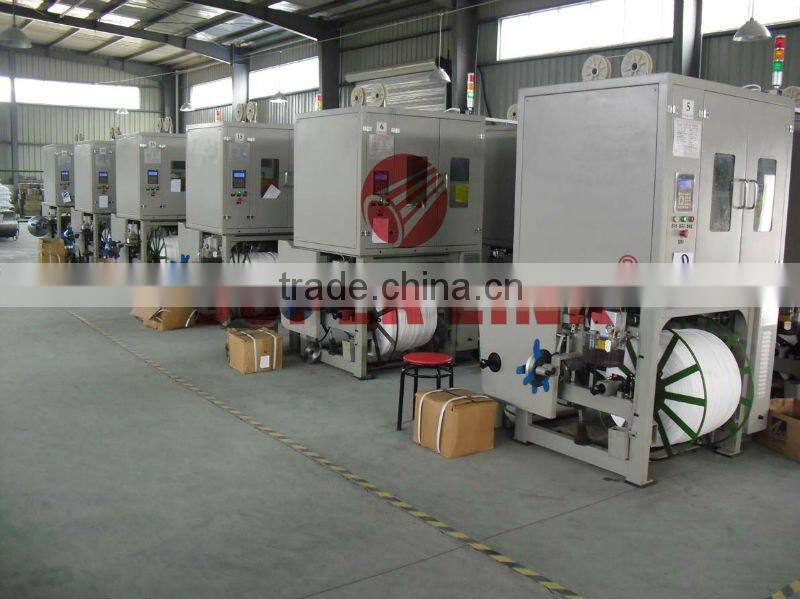

4. RG8 A/U Coaxial Cable Factory Show

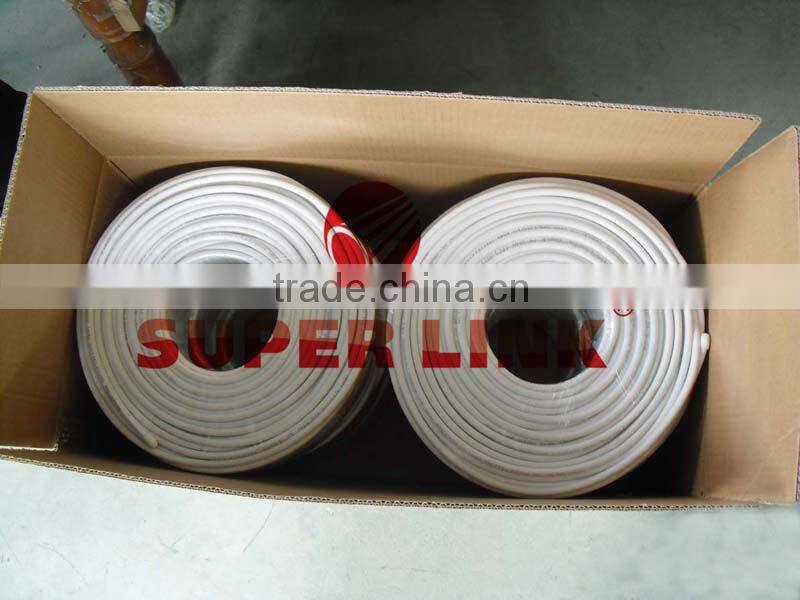

5. RG8 A/U Coaxial Cable Packaging Show

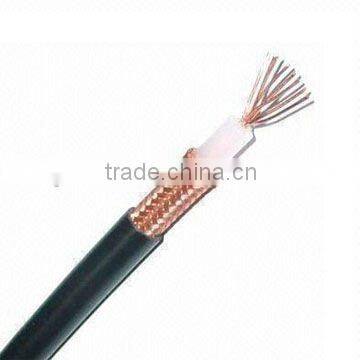

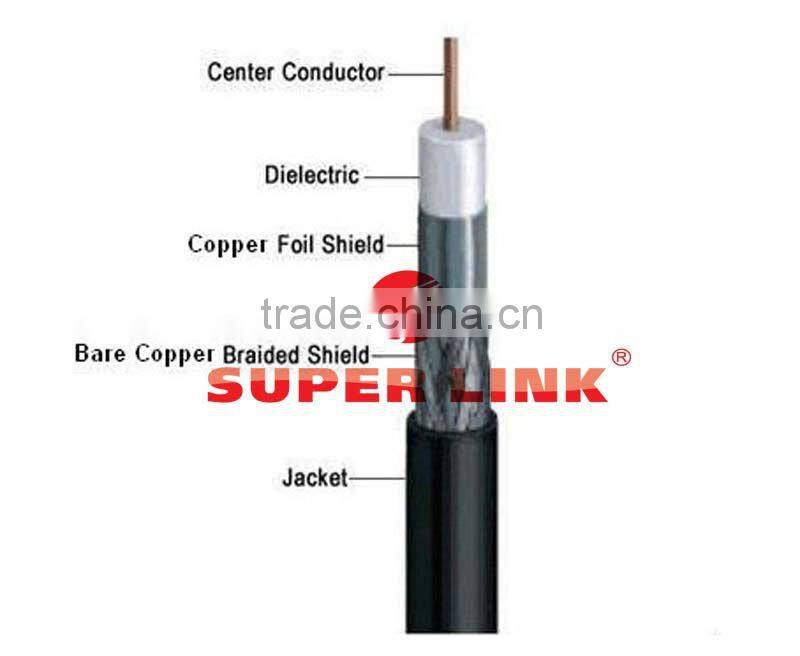

6. RG8 A/U Coaxial Cable Construction Show
