Specifications
Hot Sell Factory CCTV CATV LMR200 Coaxial Cable1.CE ROHS ISO Certification
2.Copper CCS Material
3.Free Sample

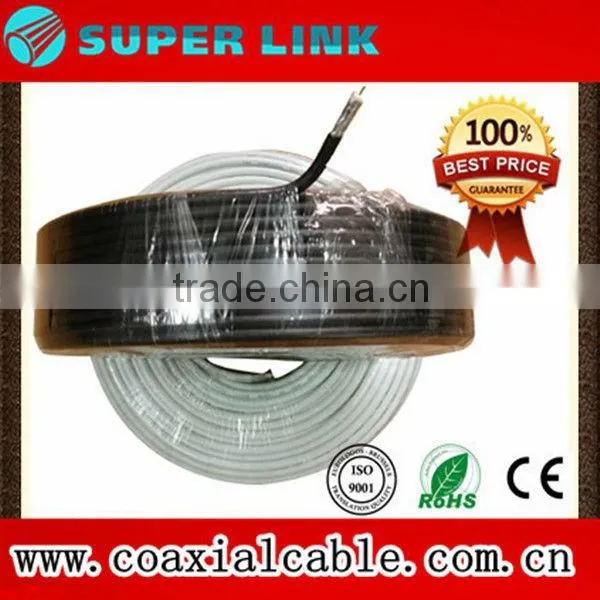

Hot Sell Factory CCTV CATV LMR200 Coaxial Cable
Specification :
Conductor: 1/0.64 Copper
Dielectric: 3.7mm,Solid PE
Shield: Aluminum Foil
Braid: Bare Copper, 95% braid coverage.
Sheath: PVC (Polyvinyl Chloride)
Overall Diameter(mm±0.1): 6.0mm
Sheath Color: Black, White, Any Color
Package: 100 Mtr’s ,300 M tr’s and 500 Mtr’s per spool.
Options: Any braid coverage, any material of copper and sheath are available.
Characteristics :
Impedance: 75 Ohm
Capacitance (pF/M):67
Velocity of Propagation(%):66
Temperature Range: -20+80°C
Attenuation[@68°F. (20°C)] | ||
Frequency(MHz) |
Maximum(dB/100ft) |
Maximum(dB/100m) |
5 |
0.86 |
2.82 |
55 |
2.05 |
6.73 |
83 |
2.45 |
8.04 |
187 |
3.60 |
11.81 |
211 |
3.80 |
12.47 |
250 |
4.10 |
13.45 |
300 |
4.45 |
14.6 |
350 |
4.80 |
15.75 |
400 |
5.10 |
16.73 |
450 |
5.40 |
17.72 |
500 |
5.70 |
18.70 |
550 |
5.95 |
19.52 |
600 |
6.20 |
20.34 |
750 |
6.97 |
22.87 |
865 |
7.52 |
24.67 |
1000 |
8.12 |
26.64 |
