Help CenterWood Floor UV Conveyer
Related Products
Specifications
Wood Floor UV Conveyer1.The effective conveying width is 600mm
2.CE qualification
3.The airframe is sprayed by electrostat

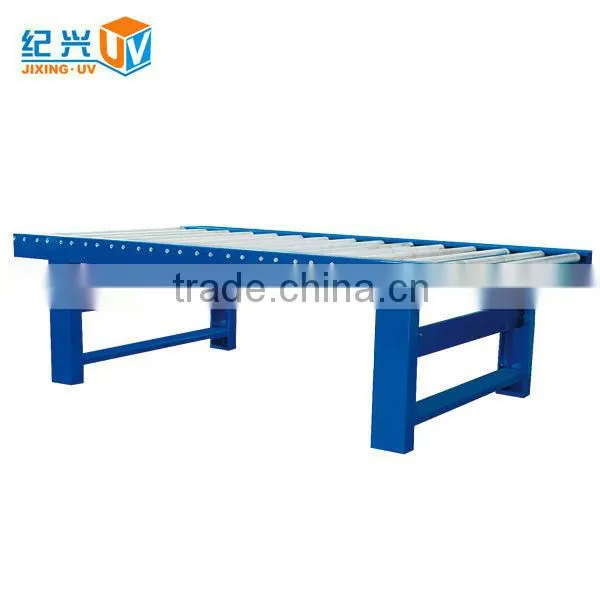

Wood Floor UV Conveyer Automatic Convey Machine for 600mm/1000mm/1300mm
Description:
1. Suitable for conveying all kinds of panel.
2. the conveyor is adjusted by inverter
3. Conveying speed adopt frequency conversion adjustment, uniform, and stable.
4. Conveyed by import belt (optional stainless steel net belt or roller)
Parameters:
1. The effective conveying width is 600mm
2. convey speed is 5-20m/min
3. convey power is 0.4-0.75kw
4. machine size: 2500*950*800mm
5. Voltage is 380V
6. Weight is 160kg
7. minimum working length:300mm
Model |
JXC-600 |
JXC-1000 |
JXC-1300 |
Working Width(mm) |
600 |
1000 |
1300 |
Feeding Speed (m/min) |
5~20 |
5~20 |
5~20 |
Shortest Convey Length(mm) |
300 |
300 |
300 |
Convey Power(kw) |
0.4~0.75 |
||
Machine Size(mm) |
2500×950×800 |
2500×1450×800 |
3000×1750×800 |
Machine Weight(kg) |
160 |
210 |
380 |
