Specifications
laser engraving cutting machine for leaser1,apply:Acrylic Board, Clothing,Wood Board, Bamboo, Leather, Fabric Clothing, Marble

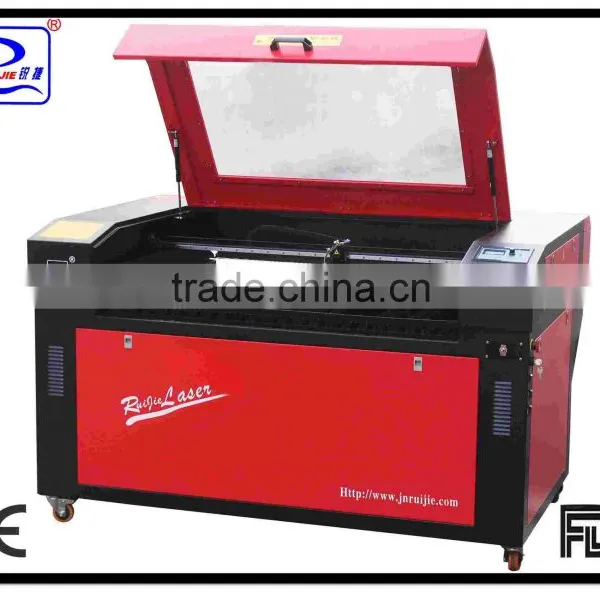

laser engraving cutting machine for leaser S Series RJ6040, RJ1060, RJ1280
(With Up-down Working Table)
Features of Laser Engraving and Cutting Machine S Series:
1 . Widely Laser Tube Power Using: 60W, 80w, 100w and 130w
Can be installed with Motorized Up-Down Working Table according to customer inquiry
2 . Strong Laser Head with easy adjusting
3 . CE standard switches design
4 . 1:4 Wheel Speed to keep high quality cutting effect
5 . 3 Phase motors works higher speed than common motor
Optional Parts:
Red Light Position
Motorized Up Down Working Table
Rotary Attachment
Circulating Cooling System (Water Compressor)
USB Interface
Vacuum Table (Special for Soft Material)
Technical Parameters of S Series :
Model |
RJ6040 |
RJ1060 |
RJ1280 |
Laser Type |
Glass Sealed-off CO2 Laser Tube;Wavelength10.6 |
||
Laser power |
40W/60W |
60W/80W/100W/150W |
|
Laser Tube Cooling |
Purified recycling water cooling |
||
Laser Output Control |
0-100% No section controls. Soft inner 0-100% Adjustable |
||
Control System and Driver |
High Speed DSP control ,High subdivision driver, stepper motor(option: servo motor) |
||
Engraving Speed |
0-900mm/s |
0-1000mm/s |
0-1200mm/s |
Cutting Speed |
0-400mm/s |
0-500mm/s |
0-600mm/s |
Working voltage |
220V 50HZ |
||
Reposition Accuracy |
<=±0.01mm |
||
Minimum Letter Size |
Chinese character:1.5mm, English letter:1mm |
||
Machine Power: |
<=1000W |
<=1200W |
<=1500W |
Working Area |
600*400mm |
1000*600mm |
1200*800mm |
Working table lifting scope |
Auto high precision ball screw Electrical:300mm |
||
Working Environment |
Temperature:0-45 Humidity:5%-95%(no condensate) |
||
Supported Format and Software |
PLT, DST, DXF, DWG, AI, LAS Support AutoCAD, CorelDRAW output directly |
||
