Specifications

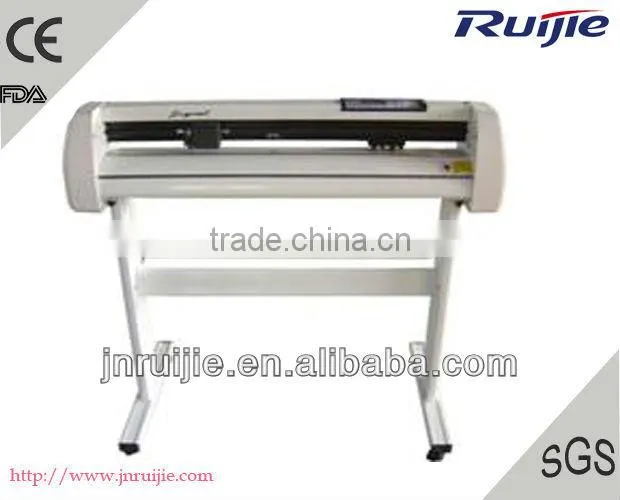

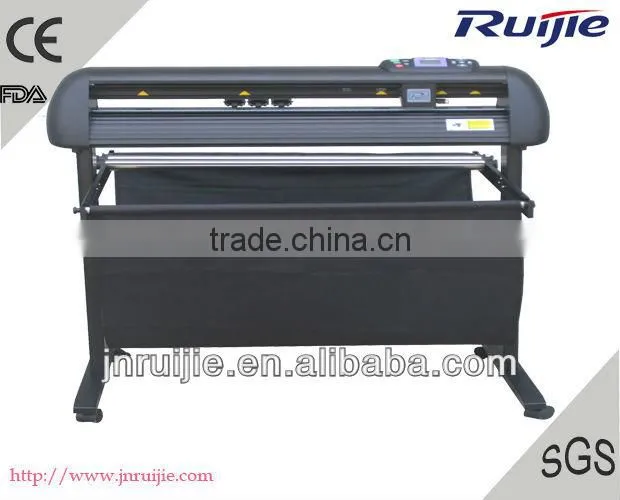

Advanced design and high accuracy machine structure allows smaller cut letters without distortion.RJ880Cutting Plotter
Features:
*Super English LCD display screen, adjust easily.
*Build-in power stabilizing power supply to keep machine steady. Unique electric circuit design, working without interference by voltage fluctuation. , Main board works in stable position even under the circumstance of 180V-250V.
*Advanced design and high accuracy machine structure allows smaller cut letters without distortion.
*Precisely machined rollers ensure paper feeding and running accuracy.
*Big capacity memory 1 M(option 4M) realizes rapid data copy with high speed, improving working efficiency.
*Adjustable blade pressure and real soft landing of blade make drawing or cutting the material with extra thickness easily.
*Regulating speed and blade pressure at any time and setting original point at any place. Emergency switch used during work.
*Low noise, same cutting speed of straight and curve line. Curve line more smoothly.
*USB interface fixed on new type of machine increase the convenience.
Parameter
|
Model Parameter |
RJ-880 |
RJ-980 |
RJ-1180 |
RJ-1380 |
RJ-1680 |
Maximum Media |
850mm |
950mm |
1130mm |
1330mm |
1630mm |
Maximum Cutting |
720mm |
820mm |
1020mm |
1220mm |
1520mm |
Pressure |
50-500g |
||||
Speed |
50-800mm/s |
||||
Capability Memory |
1M |
||||
Power Supply |
Built-in 90 to 260V |
||||
Interface |
RS232, USB |
||||
Driver |
Digital DC ,Step motor , |
||||
Drawing instruction |
HPGL ,DMPL |
||||
Applications:
*Cutting nice graphics and patterns out of self-adhesive sheet, sunlight proof film and stickers in stead of manual cutting or printing.
*Compatible with various design software, Ucancam, CAD, CorelDraw, direct output, with database if icons, image, graphics and patterns, English script and other optional language to be provided at request of customers.
*Easy to learn and quick to operate, for cutting designs if ad poster, window paper-cut, shop front sticker and showcase decoration items.
*It is necessary machine for printing shop, stationer shop, supermarket, store, hotel and restaurant and so on.

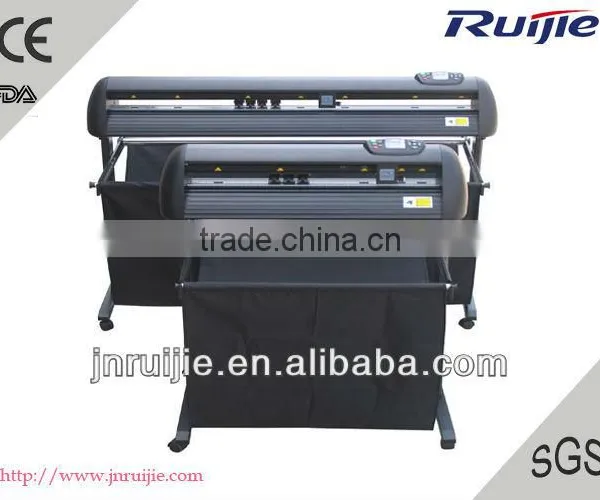

Optional types
