Specifications
Metal laser cutting machineFast cutting speed
High precision
Cost-effective
Cutting carbon steel, S.S. metal material

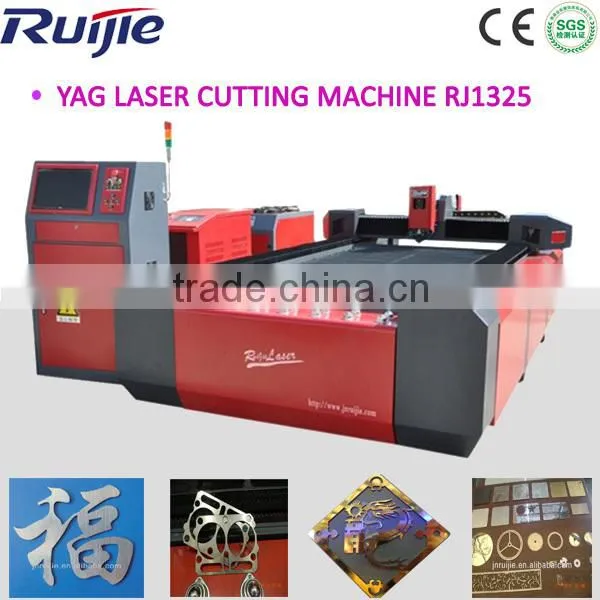

Metal laser cutting machine RJ1325-YAG500W
Advantages:
1.High precision: suitable for precise parts cutting and all kinds of process words, pictures subtle cutting.
2.High cutting speed: nearly 100 times than the wire-electrode cutting.
3.The heat affected zone is small, easy to distort, with smooth cutting seam, and no need further processing.
4.Cost-effective, stable performance, ensure continued production.
5.Solid YAG laser is one of the most stable and mature products in the laser field.
Applications:
The highprecision cutting of carbon steel, stainless steel, alloy steel, spring steel, copper and other metal plate and pipe.
Industrial applications:
Widely used in advertising signs, sheet metal structures, high and low voltage electrical cabinet making, textile machinery parts,
kitchen utensils, automobile, machinery, elevators, electrical parts, spring, metro parts and other metal parts processing industry.
Technical parameter:
Model |
RJ1325 |
Working Size |
1300*2500mm |
Laser Type |
YAG laser |
Laser Wavelength |
1064 nm |
Laser Output Power |
500W |
Cutting Thickness |
0.2-4mm Carbon steel 0.2-3mm Stainless steel |
Max Cutting Speed |
2100mm/min |
Position Accuracy |
<±0.05mm |
Minimum Line width |
0. 2mm |
Cooling System Power |
5.1 KW |
Controlling System |
Imported Fagor System |
Driving System |
Japan YASKAWA Servo motor and drivers |
Working Voltage |
AC220V/110V±10% 50Hz/60Hz |

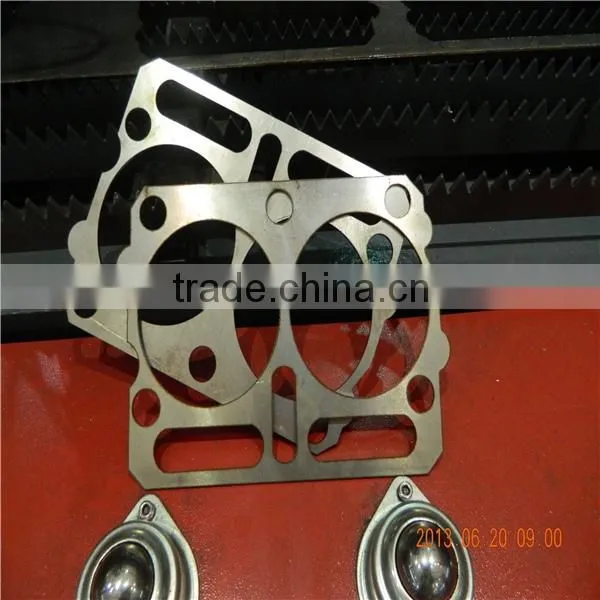

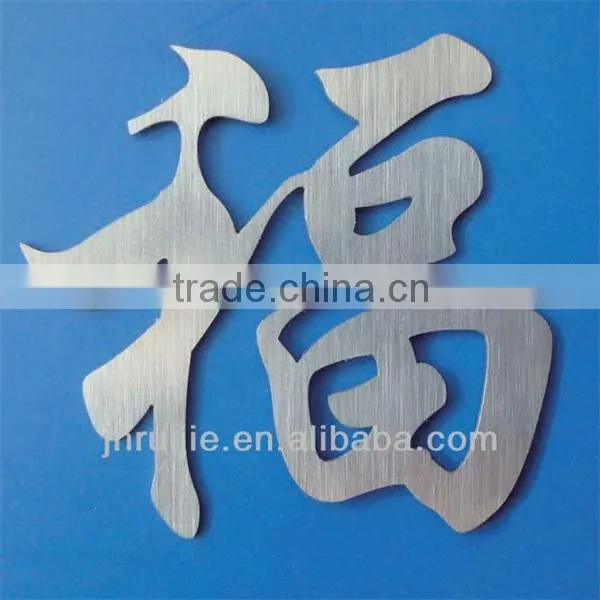

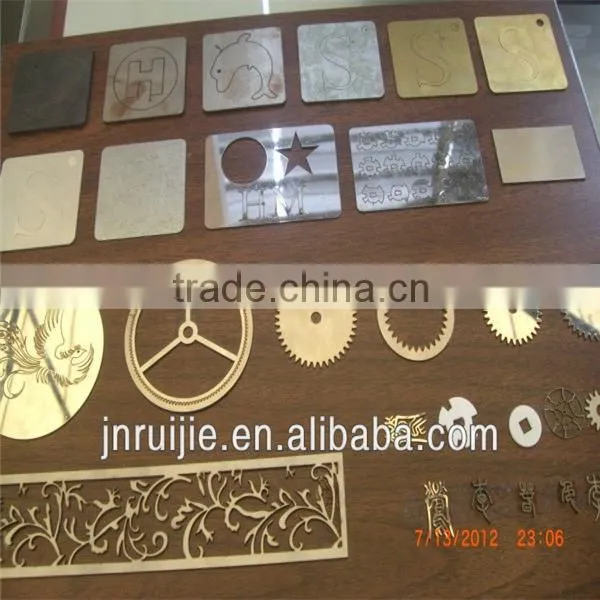

Samples:

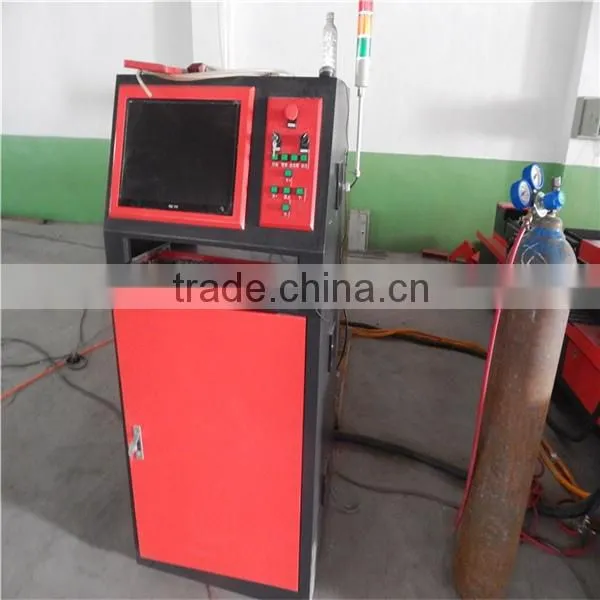

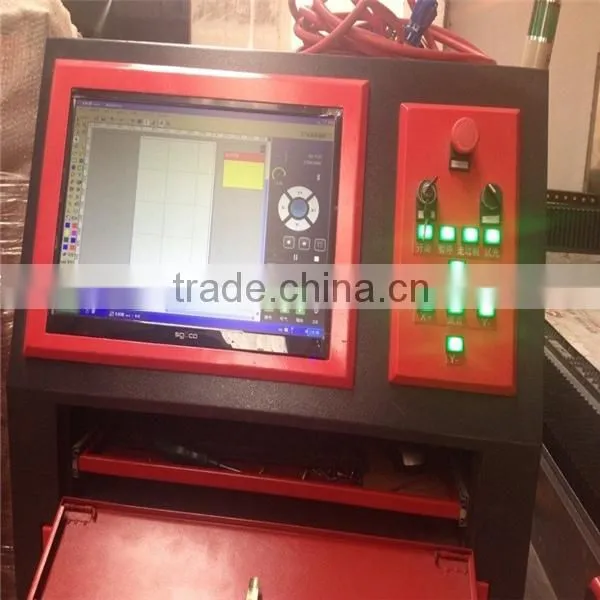

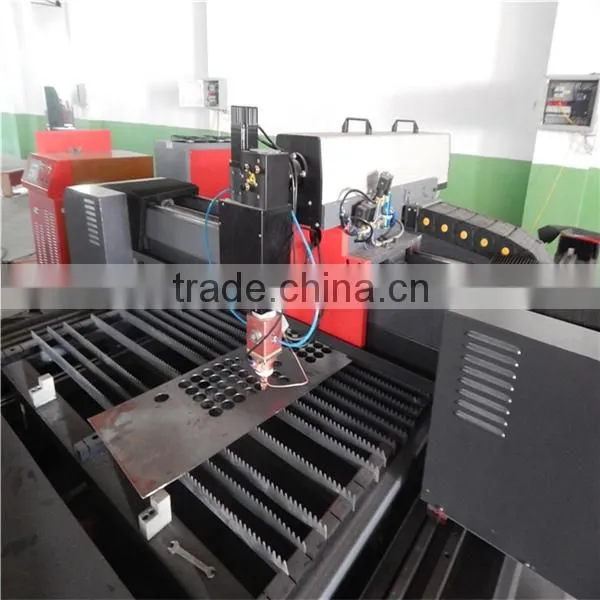

Detailed parts of machine:

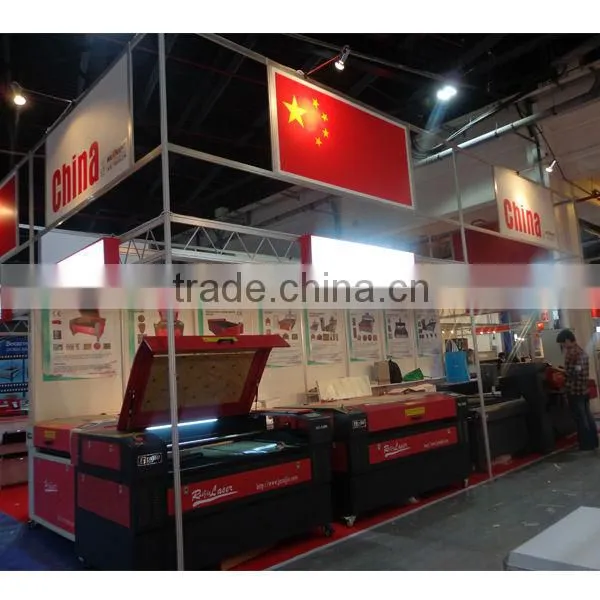

Exhibition Pic:
