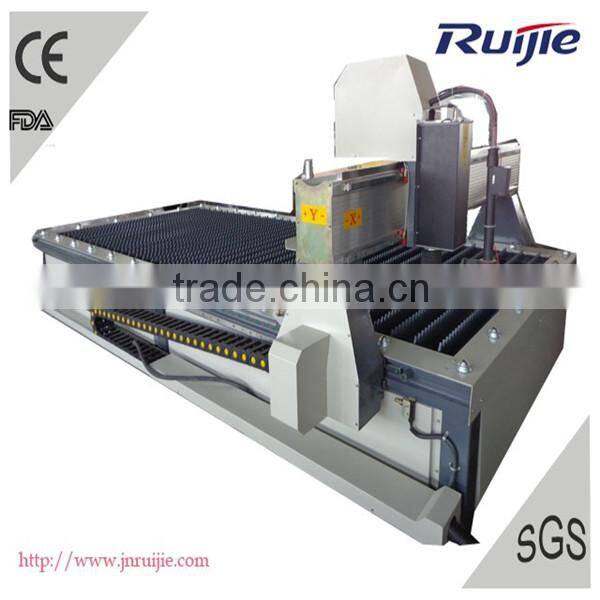

Plasma Cutting machine for mental RJ1325/1530/2040
Apllications
Parts cutting, thickness material and heterotypic sheet cutting.
Features
1.Reasonable platform design,10mm thickness steel plates fixed on the table covered by cast sheath with spikes. Steel plastes will not be damaged even under raging flame.
2.The level difference of whole double-deck platform remains in 0-1.5mm.
3.Panasonic servo motor,Taiwan servo reducer device and high accuracy rack gear transmissIon
4.Starfire control systerm made in Sino-US joint venture and Germany Design Software FastCAW with auto material saving function.

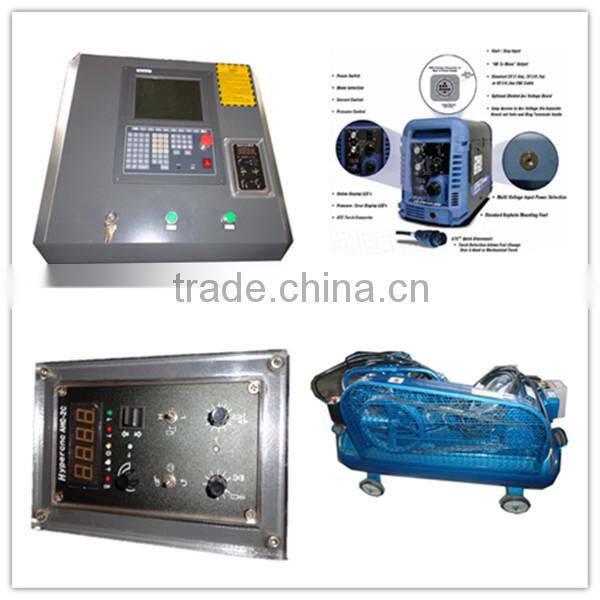

5.American Cut-Master plasma power supply (40A/120A/200A) together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma gun and working piece automatically in order to ensure cutting accuracy.
6.Self-adjusting to choose the best distance between plasma gun and working piece automatically in order to ensure cutting accuracy.
Parameters
Model |
RJ1325 / RJ1530 / RJ2040 |
Processing Materials |
Iron,aluminum,galvanized sheet,white steel plate,titanium plate |
Working Area |
1300*2500mm / 1500*3000mm / 2000*4000mm |
Cutting Thickness |
40A(0.5-10mm) 120A(3-16mm) 200A(3-35mm) |
Cutting Speed |
8000mm/min |
Moving Speed |
50000mm/min |
Power |
8.5KW-10.5KW |
Input Voltage |
3 phase 380V |
Power Frequency |
50HZ |
Flies Transfer |
USB interface |
Arc |
Untouched Arc Striking Arc Pressure Adjuster |

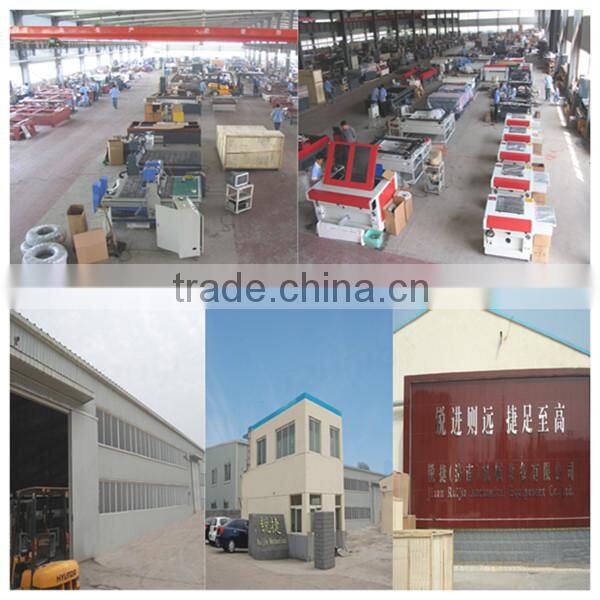

*Jinan Ruijie Mechanical Equipment Co., Ltd. was established in 2002.We are well known for our superior quality and service in the field of engineering and manufacturing of CNC and Laser Equipment that includes:CNC Router,Laser Engraving Machine,Laser Engraving and Cutting Machine,Cutting Plotter,Marble CNC Router,Plasma Metal Cutting Machine and so on.
*Jinan Ruijie Mechanical Equipment Co., Ltd. imports the high quality manufacture technology to improve our products for our customers.
*Our company is famous for high quality and better after-sale service as the competitive price.
*Our products are widely used in the following industry, such as Woodworking, Advertising, Artmaking, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.
