5mm steel cutting plasma cnc metal cutting 60A 100A plasma cutter
Features of 5mm steel cutting plasma
- Welded lathe bed of thick-wall profiled steel, artificial prescription, more solid and stable.
- Reasonable platform design, 10mm thickness steel plates fixed on the table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame.
- The level difference of whole double-decked platform remains in 0-1.5mm.
- Reasonable material inclined leakage design. All finished working pieces and fragments slide into both sides of tunnel for safe and convenient collection.

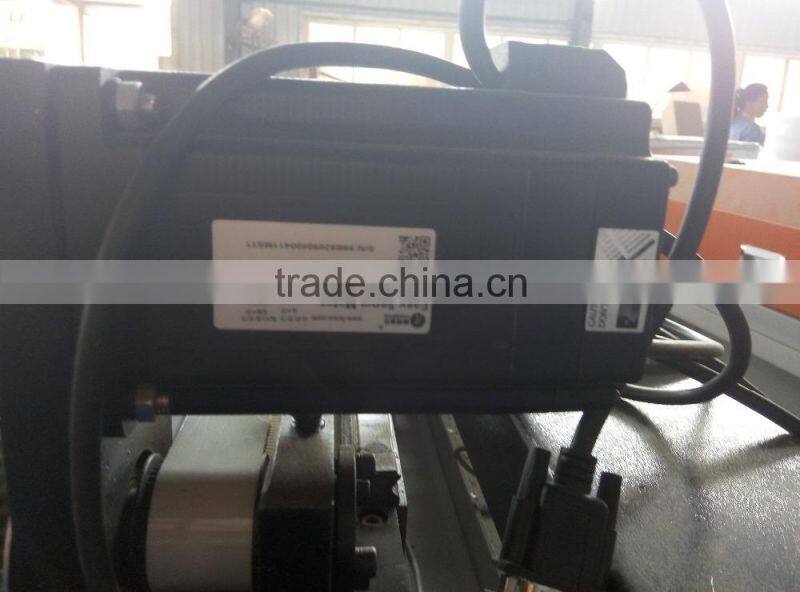

- Panasonic servo motor, Taiwan servo reducer device and high accuracy rack gear transmission. Lower noises, stable and accurate coordinate movement.

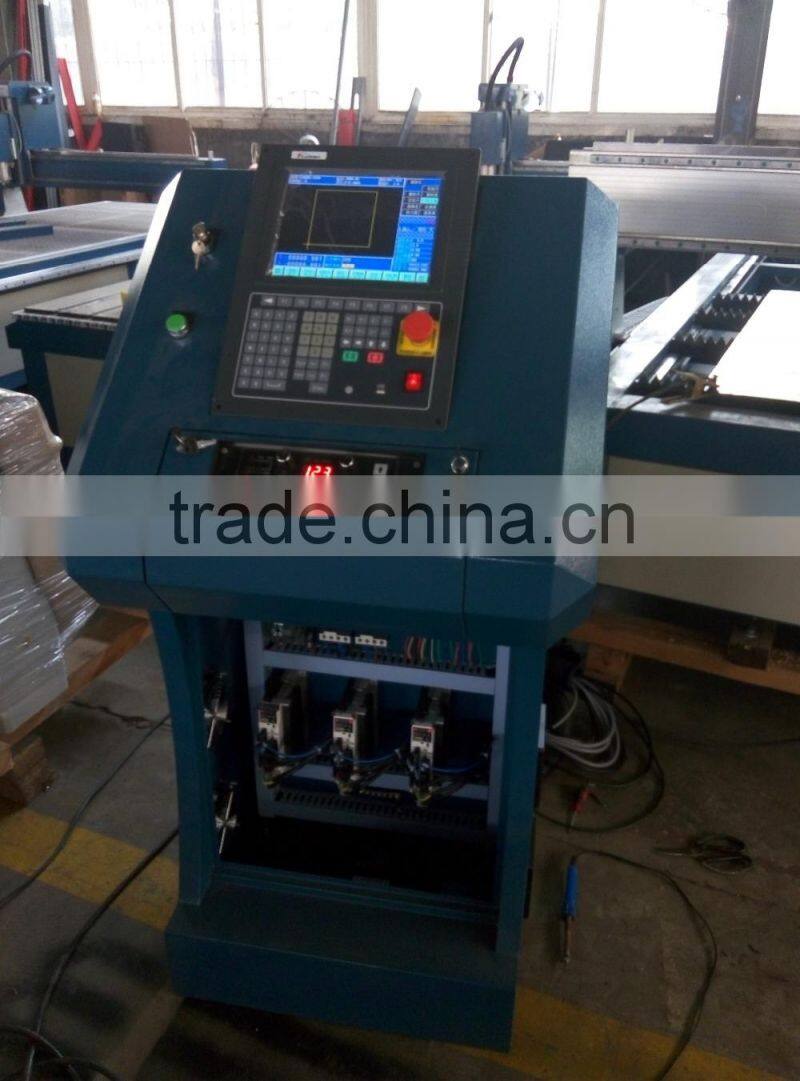

- Starfire control system made in Sino-US joint venture and Germany Design Software FastCAM with auto material saving function
- American Cut-Maste plasma power supply (40A/120A/200A) together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma gun and working piece automatically in order to ensure cutting accuracy.
Technical Parameter of 5mm steel cutting plasma
Model |
1325 |
1330 |
1530 |
Working Area |
1300 × 2500mm |
1300 X 3000mm |
1500 × 3000mm |
Cutting Thickness |
(40A) 0.5-10mm (120A)3-16mm (200A)3-25mm |
||
Cutting Speed |
0-8m/min |
||
Moving Speed |
0-50m/min |
||
Power |
8.5KW-10.5KW |
||
Input Voltage |
3 phase 380V |
||
Power Frequency |
50Hz |
||
Flies Transfer |
USB Interface |
||
Arc |
Untouched Arc Striking |
||

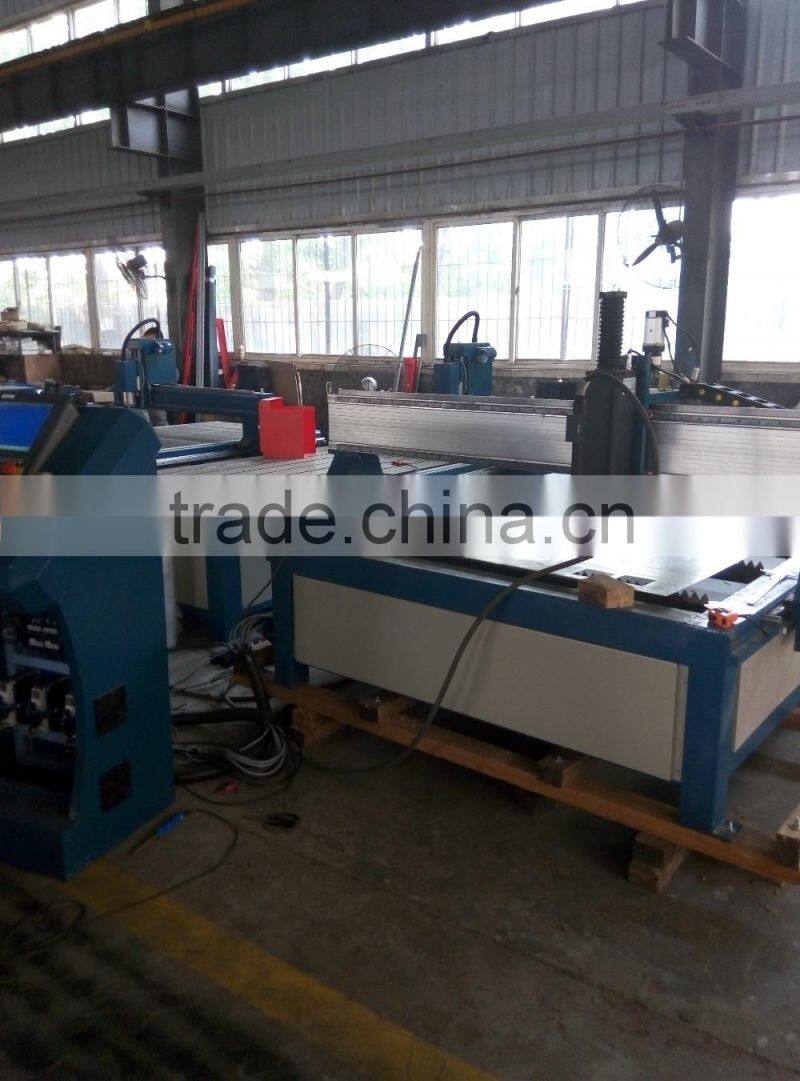

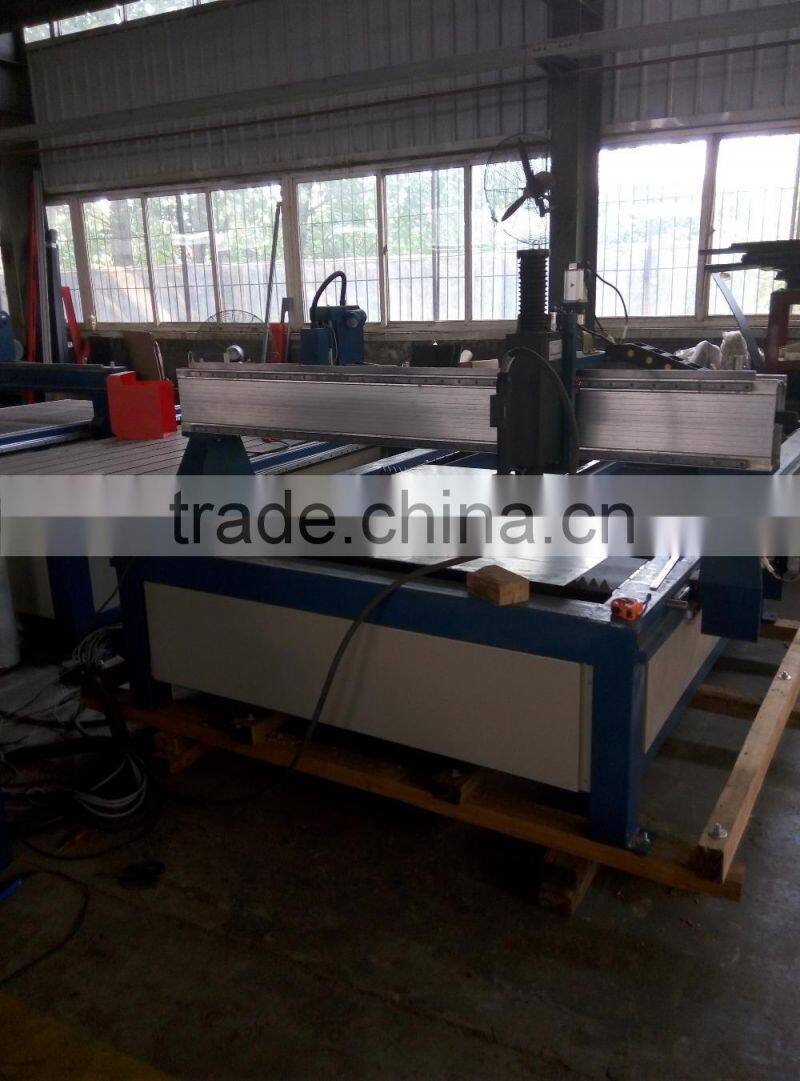

Details of 5mm steel cutting plasma

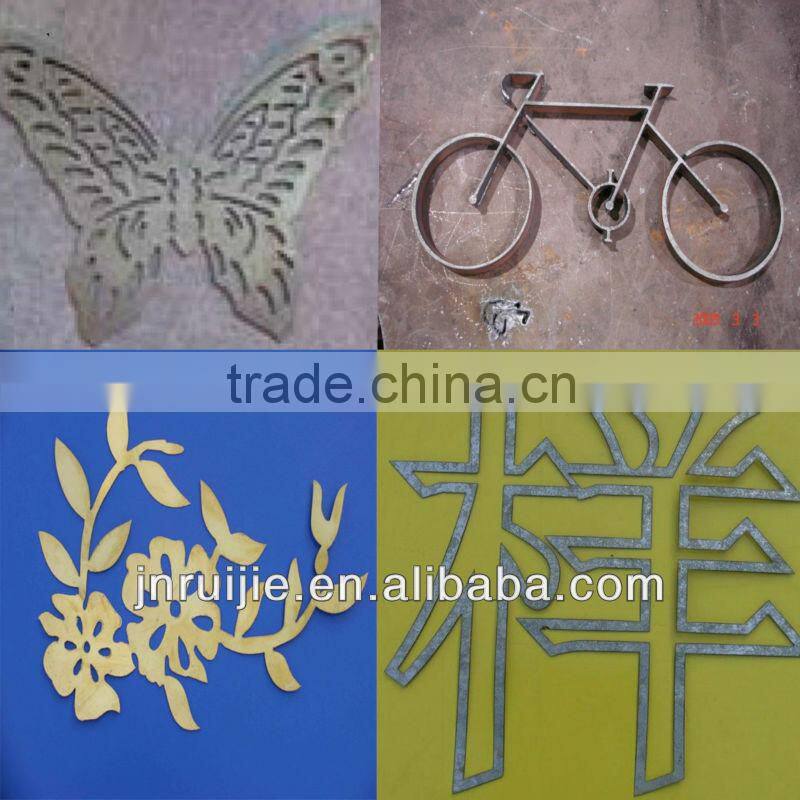

Samples of 5mm steel cutting plasma
Warranty and After Sales Service:
1).Life time free maintenance service.
2).One year free warranty
3).Free training course at our factory with professional engineers.
4).We provide the consumable parts at agent price when you need replacement
5).24 hours online service each day, free technical support with different languages.
6).We provide door to door technical support to agents, if necessary.
