RUIJIE Round Square Rectangular Triangular Tube Pipe Fiber Laser Cutting Machine

Name: RUIJIE Round Square Rectangular Triangular Tube Pipe Fiber Laser Cutting Machine
Brand: RUIJIE Laser
Availability: InStock

FOB Price

US$ 23,999 - 59,999 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	Fiber Laser
Applicable Material	Metal, Other, Metal, Stainless Steel, Carbon Steel, Iron, Titanium alloy, Galvanized Sheet	Cutting Thickness	14mm carbon steel
Cutting Area	13002500mm,15003000mm or optional	Cutting Speed	30m/min
CNC or Not	Yes	Cooling Mode	Water Cooling
Control Software	Cypcut	Graphic Format Supported	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin	Shandong, China	Brand Name	RUIJIE Laser
Model Number	RJ1530 Tube and Sheet fiber laser cutting machine	Certification	CE, ISO, SGS
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

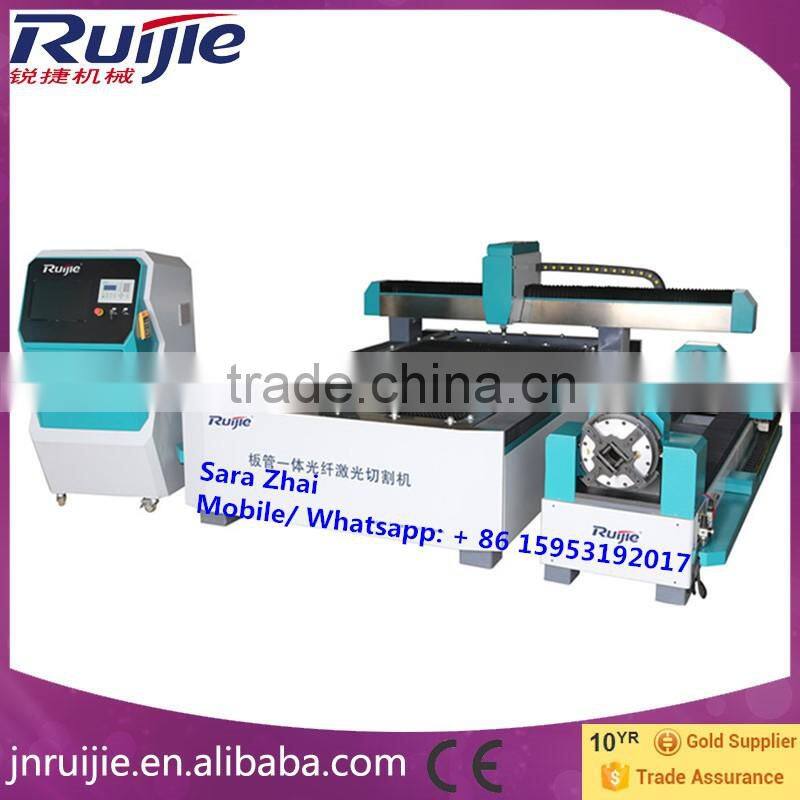

Round square pipe fiber laser cutting machine

1. Brief Introduction of Round square pipe fiber laser cutting machine

Jinan Ruijie Fiber laser cutting machin CNC Fiber laser metal cutting machine price e adopts the most sophisticated Germany IPG laser or Raycus Laser of China, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine. It has good rigidity and stability with precision ball screws, linear guide drive run.

Jinan Ruijie Fiber laser cutting machine adopts international advanced 500w /1000W/2000W/3000W power fiber laser from IPG, or Raycus from China, imported high-precision ball screw, linear guide way and other high efficient and high precise drive mechanism. The precise CNC fiber laser cutting machine integrates imported servo motor with advanced CNC system, is high new tech product with a collection made of laser cutting, precise machinery, CNC technology and other subjects. It is applied for cutting and shaping of carton steel plate, stainless steel plate, aluminum plate and other metal materials. With high speed, high precision, high efficiency, high cost performance and other features, it’s the first choice in cutting machines for industrial metal processing.

2. Application Materials of Round square pipe fiber laser cutting machine

Mainly for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

3. Applicable industries of Round square pipe fiber laser cutting machine

Jewelry,kitchen ware,chassis and cabinet,metal pipe,lamp&lanterns,metal ware,hardware,precision machinery,auto parts,elevator,nameplate,advertisement,electronics,toys and other industries.

4. Function Advantages of Round square pipe fiber laser cutting machine

1). Excellent quality of light beam

2). Highly cutting speed: the 2 times by co2 laser cutting machine under the same power.

3). Very high stability and Very high efficiency of photoelectric conversion

4). Very low using cost and Very low maintenance cost

5). Convenient product operation and maintenance

6). Very strong soft optical effects: compact volume and structure

7). Gantry double driving structure, high damping machine tool bed, good rigid,

8).This model adopts imported servo system driver and imported transmission system, the moving structure of machine tool adopts imported gear and rack transmission, linear guide track for guiding, ensuring the high speed,high precision and high reliability of equipment.

9). Rack and guide adopt fullly enclosed protective device, which prevents oil free friction movement and dust pollution, enhances using life of transmission parts and ensures the precision of machine tool movement.

10). Professional laser cutting machine, cnc control system, computer operation, can ensure the cutting quality, and more convenient for cutting work.

11). Automatic swiching table configuration, which shortens the standby time, and effectively enhances the working efficiency more than 30%.

12). Fully enclosed protective cover,using safety.

5. Techinical parameters of Round square pipe fiber laser cutting machine

Model	RJ Fiber Laser cutting machine
Laser Type	Imported Original Fiber Laser or Raycus
Laser Wavelength	1060nm
Laser Maximum Power	500W	1000W	2000W	3000W
Max. Cutting thickness	≤8mm	≤12mm	≤16mm	≤18mm
Total Power Consumption	<14KW	<18KW	<22KW	<26KW
Working Size	1500X2500mm/1500X3000mm/2000X4000mm
Max.cutting speed	0-30m/min(Depending on the material and thickness)
X, Y, Z Axis Orientation Precision	≤±0.05mm/m
X, Y, Z Axis Repeat Precision	≤±0.03mm /m
Min line width	≤0.15mm
Maximum Empty Running Speed	120m/min
Driving way	Imported servo motor
Tranmission way	Y-axis importe gear rack double driver,X-axis imported ball screw
Worktable Max Load	1600 KGS
Cooling System	Water Cooling
Continous working time	24 Hours
Environment temperature	0-35°C
Power requirements	380V/3 Phases /50Hz or 60Hz
Power requirements Outer size (LWH)	4500x2000x1800mm

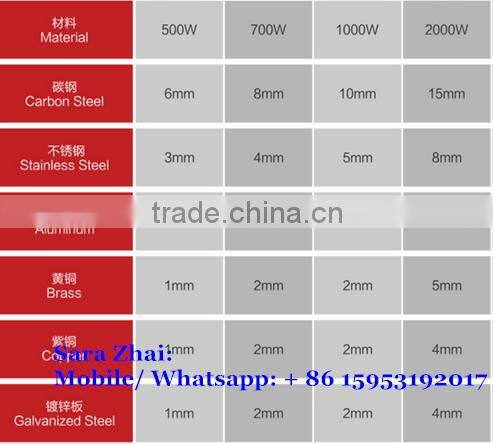

6. Cutting ability of Round square pipe fiber laser cutting machine

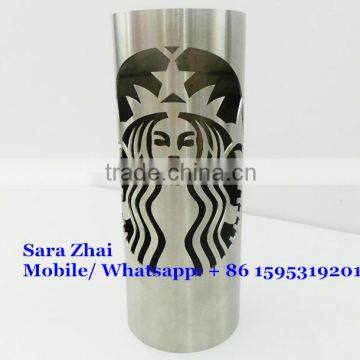

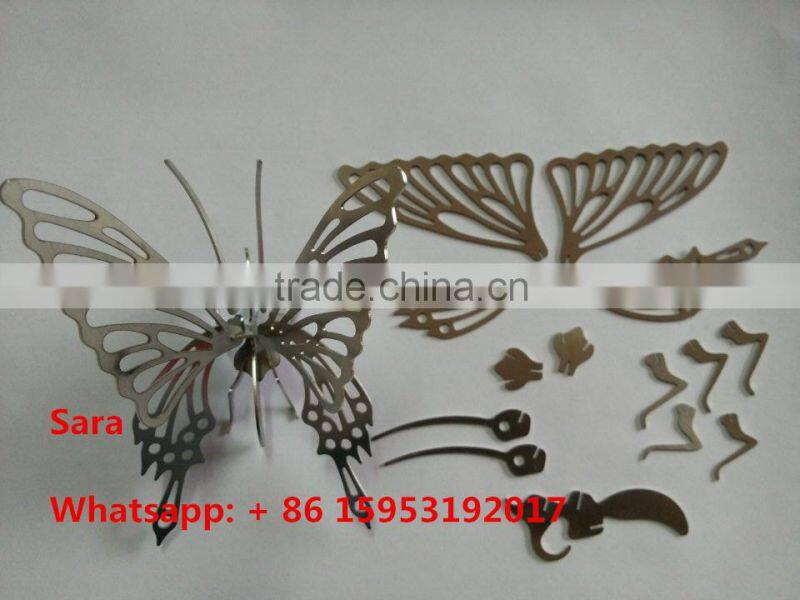

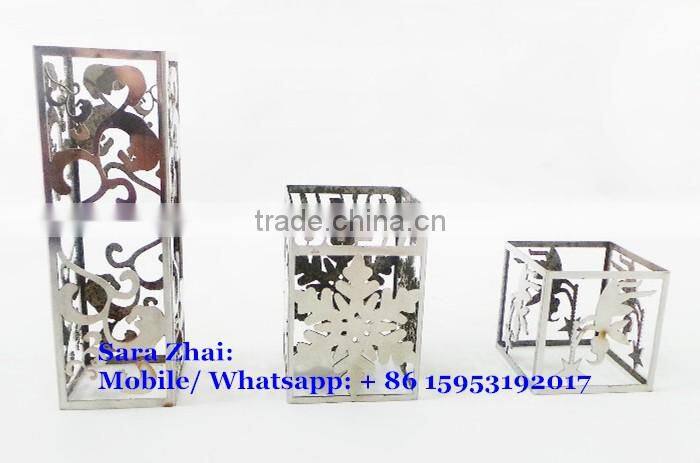

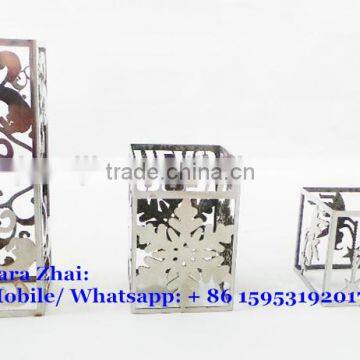

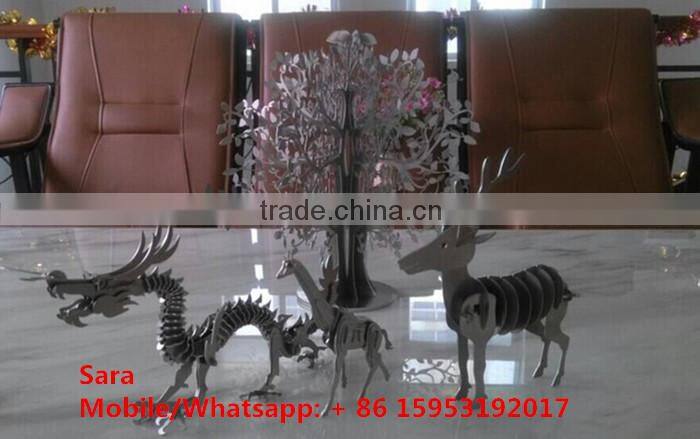

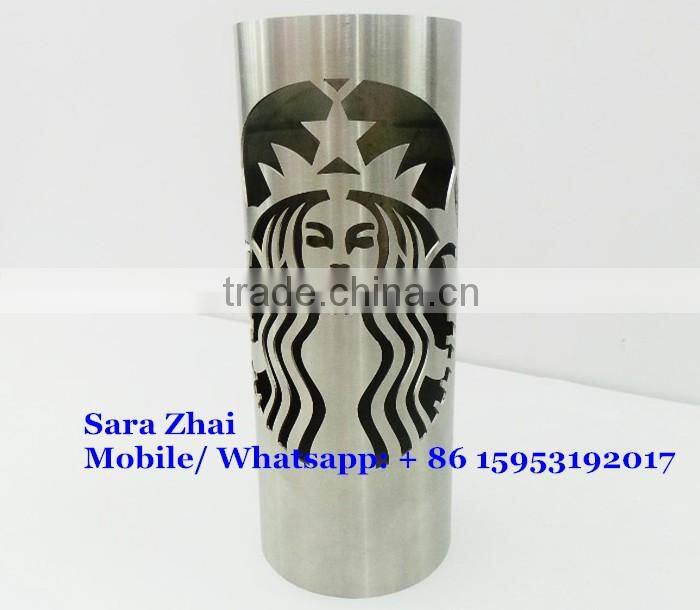

7. Samples:

8.Photo of us:

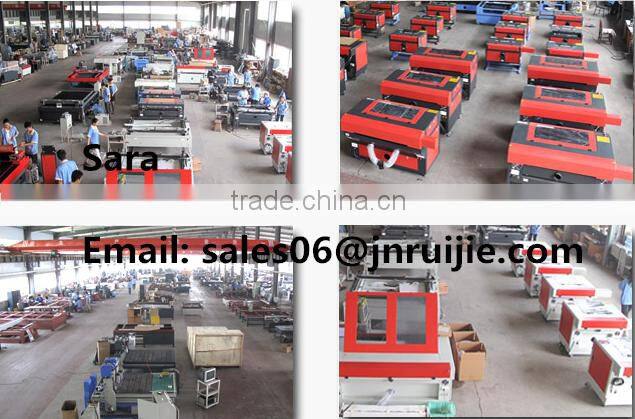

9.Factory:

10. Service:

# In case any problem, Engineers available to service machinery overseas

# Warranty: 2 years Parts for replacement are available for free (no human damage)
# Service response time: within 2 hours
# 24 hours technology online support (skype,whatsapp,viber,QQ,Wechat)
# 24 hours service phone
# With CD explanation, support technician online
