ASTM A333 Seamless and Welded Steel Pipe for Low Temperature Service

ASTM A333 Seamless and Welded Steel Pipe for Low Temperature Service thumbnail-1
ASTM A333 Seamless and Welded Steel Pipe for Low Temperature Service thumbnail-2
ASTM A333 Seamless and Welded Steel Pipe for Low Temperature Service thumbnail-3
ASTM A333 Seamless and Welded Steel Pipe for Low Temperature Service thumbnail-4
ASTM A333 Seamless and Welded Steel Pipe for Low Temperature Service thumbnail-5
ASTM A333 Seamless and Welded Steel Pipe for Low Temperature Service photo-1
ASTM A333 Seamless and Welded Steel Pipe for Low Temperature Service photo-2
ASTM A333 Seamless and Welded Steel Pipe for Low Temperature Service photo-3
ASTM A333 Seamless and Welded Steel Pipe for Low Temperature Service photo-4
ASTM A333 Seamless and Welded Steel Pipe for Low Temperature Service photo-5
US$ 600 - 880 MOQ: 2 Tons
Key Specifications
Get Latest Price
Standard:
Thickness:
2.0, 60
Section Shape:
Round
Contact Supplier Request Quote Chat Now
Hunan Fushun Metal Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Thickness 2.0, 60
Section Shape Round
Outer Diameter 19.05 - 457 mm
Place of Origin Hubei, China
Secondary Or Not Non-secondary
Application Other, Low Temperature Service
Certification Other
Surface Treatment Other, Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.
Alloy Or Not Non-alloy
Product Description

ASTM A333 Seamless and Welded Steel Pipe for Low Temperature Service

The pipe shall be made by the seamless or welding process with the addition of no filler metal in the welding operation.

Detailed Images

Specification:

Grades
Grade 1, Grade 3, Grade 4, Grade 6, Grade 7, Grade 8, Grade 9, Grade 10, Grade 11
Outer Dimensions
19.05mm-457mm
Wall Thickness
2.0mm-60mm
Lengths
Lengths required shall be specified on order.If no definite lengths required, following practice applies:
Single Random — 17′ ~ 24′ lengths
Double Random — 36′ ~ 44′ lengths
Surface treatment
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.
Marking
Markings will adhere to prescribed specifications in A 999/A999M and be: Rolled, Stamped, or Stenciled (Mfrs. Option), including:
Hot Finished or Cold Drawn Manufacture Name
Specification / Grade Hydro or NDE
Seamless or Welded
Schedule Number
Packing
Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.
Delivery
Pipes are supplied in hexagonal bundles or round bundles tied with steel strip.
Weight of bundle – up to 5000 kg upon request of customer.
Each bundle is furnished with three tags.

Chemical Composition(%)


Grade
C
Mn
Si
P
S
Cr
Grade 1
0.30 max
0.40-1.06
/
0.025 max
0.025 max
/
Grade 3
0.19 max
0.31-0.64
0.18-0.37
0.025 max
0.025 max
/
Grade 4
0.12 max
0.50-1.05
0.08-0.37
0.025 max
0.025 max
0.44-1.01
Grade 6
0.30 max
0.29-1.06
0.10 min
0.025 max
0.025 max
/
Grade 7
0.19 max
0.90 max
0.13-0.32
0.025 max
0.025 max
/
Grade 8
0.13 max
0.90 max
0.13-0.32
0.025 max
0.025 max
/
Grade 9
0.20 max
0.40-1.06
/
0.025 max
0.025 max
/
Grade 10
0.20 max
1.15-1.50
0.10-0.35
0.035 max
0.015 max
0.15 max
Grade 11
0.10 max
0.60 max
0.35 max
0.025 max
0.025 max
0.50 max
Grade
Ni
Mo
Cu
V
Co
Nb
Al
Grade 1
/
/
/
/
/
/
/
Grade 3
3.18-3.82
/
/
/
/
/
/
Grade 4
0.47-0.98
/
/
0.40-0.75
/
/
0.04-0.30
Grade 6
/
/
/
/
/
/
/
Grade 7
2.03-2.57
/
/
/
/
/
/
Grade 8
8.40-9.60
/
/
/
/
/
/
Grade 9
1.60-2.24
/
0.75-1.25
/
/
/
/
Grade 10
0.25 max
0.05 max
0.15 max
0.12 max
/
0.05 max
0.06 max
Grade 11
35.0-37.0
0.50 max
/
/
0.50 max
/
/

Heat Treatment Requirements:

All seamless and welded pipe shall be treated to control their microstructure by the following methods:

Normalizing per ASTM A333 Standard Specification for Seamless and Welded Steel Pipe for Low Temperature Service section 4.2.1.1; section 4.2.1.2 or section 4.2.1.3
Quenched and Tempered per A 333/A 333M – 05 section 4.2.2.1
Double Normalized and Tempered per A 333/A 333M – 05 section 4.2.2.2

Referenced Documents:

ASTM A 370 Test Methods and Definitions for Mechanical testing of Steel Products
ASTM A999/A 999M Specification for General requirements for Alloy and Stainless Steel Pipe.
ASTM A 671 Specification for General requirements for Alloy and Stainless Steel Pipe
ASTM E 23 Test Methods for Notched bar Impact testing of Metallic Materials

Testing:

1.Inspection and Test: Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.

2.For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot.
3.For small lots, at least one pipe shall be tested.
4.For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe.
5.Hydrostatic Test
6.Impact Test One notched bar impact test, consisting of breaking three specimens shall be made from each heat represtented in a heat-treatment load on specimens taken from the finished pipe.

Packing & Delivery

Packing:

Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.

Delivery:

Pipes are supplied in hexagonal bundles or round bundles tied with steel strip.
Weight of bundle – up to 5000 kg upon request of customer.
Each bundle is furnished with three tags.

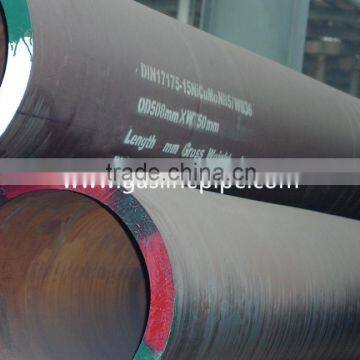

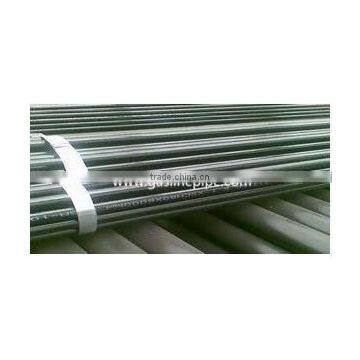

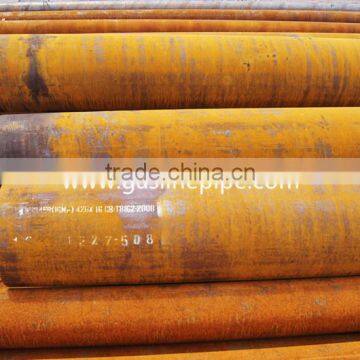

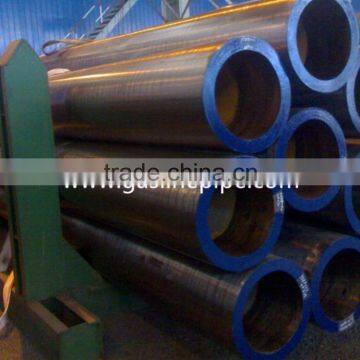

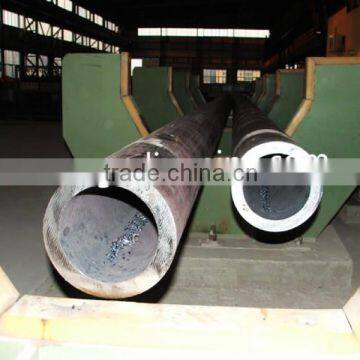

Product Pictures
