Specifications
support id/em card, 15693 card and 1443A,1443B card;international standard wiegand,RS232/485 interface;
High quality RFID access control reader OCS-RF005
Specification:
Working Voltage: DC 9V-16V
Static Current: ≤80mA
Reading Range: 5~10CM
Support EM-ID, MIFARE® card,15693card,and 1443A,1443B Card
Ambient Temperature: -10°C~50°C
Ambient Humidity: 10%~90%
International Standard Wiegand Interface
small than 100M Communication Distance
Installation:
Using “+”type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.
Wire Connection:

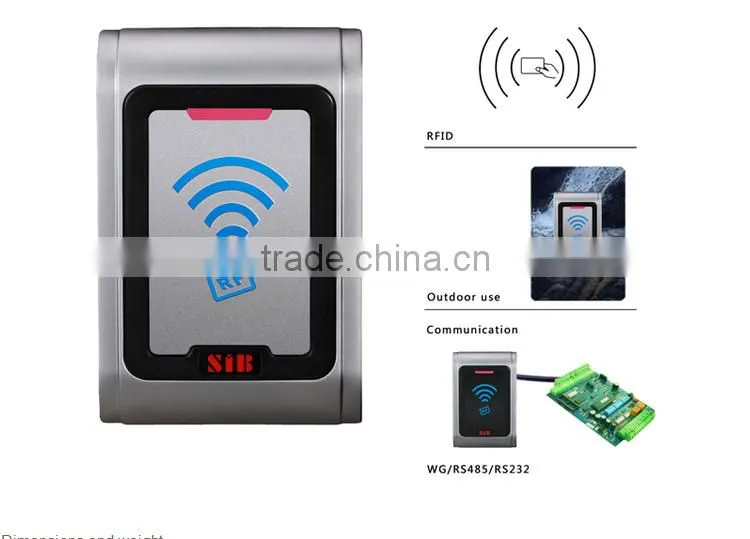

WG26/34 RS485 RS232
Red: DC 9V-16V Red: DC 9V-16V Red: DC 9V-16V
Black: GND Black: GND Black: GND
Green: D0 Green: 4R+ Green: RX
White: D1 White: 4R- White: TX
Notice:
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them, three strands are spare, if no need reader show illegal card s by sound and light, LED wire can not be used, data wire Data1 Data0 are twisted pair would be better, we suggest sectional area are 0.22 square millimeter at least. The length should not exceed 100meters.
shielded wire connect to GND .
