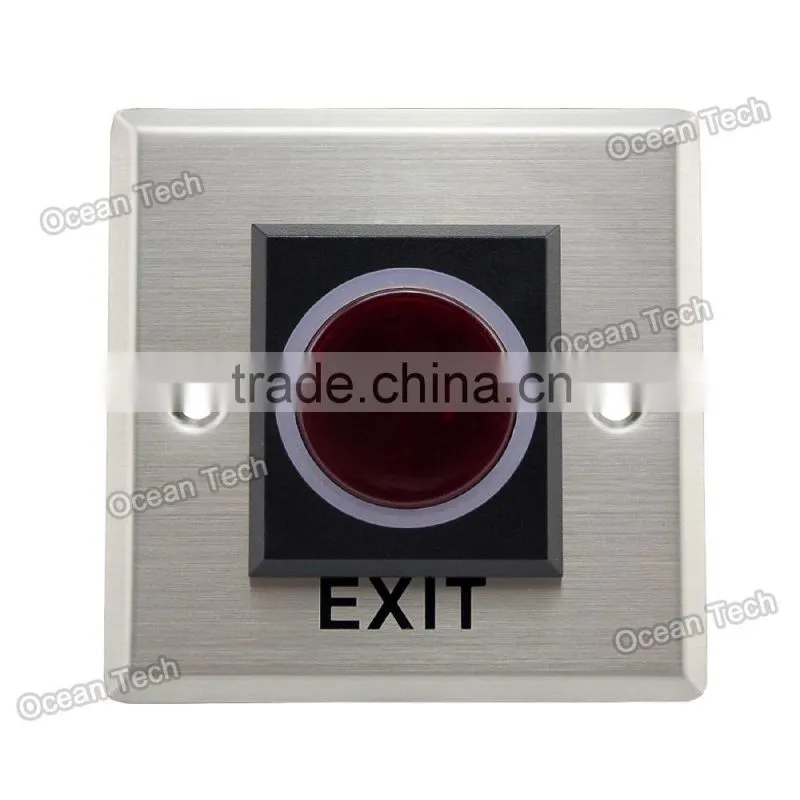

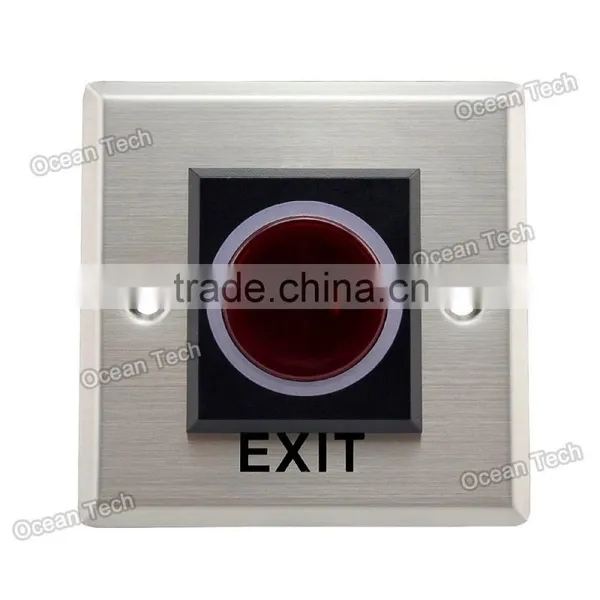

Help Center12V Aluminum Panel Infrared no Touch Exit Button for Access Control
Related Products
-
Infrared Sensor Exit Button for Access ControlNegotiableMOQ: 1 Piece -
Infrared No Touch Access Control Door Release Exit ButtonNegotiableMOQ: 1 Piece
-
No Touch Door Exit Button for Access ControlNegotiableMOQ: 1 Piece
-
Infrared Sensor Exit Button(Stainless Steel) for Door Access ControllerNegotiableMOQ: 1 Piece
-
Hot Sell Usb Fingerprint Reader Price OC060-18NegotiableMOQ: 1 Set
Specifications
Infrared exit button1.no touch exit button
2.Stainless steel plate
3.LED indication
4.IR switch button
"No Touch" Request-To-Exit Sensor uses IR technology to open a door or activate a device with the simple wave of a hand. The trigger distance is up to 4 inches. Since it is no touch, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination) or for use in schools, factories, or offices (anywhere an easy way to exit is required). FEATURES: Attractive "ring" illuminator turns from green to red when the sensor is activated. Durable stainless-steel plate. Quick-connect screwless terminal block. SPDT 3A relay output.
Specification
Dimensions: 86Lx86Wmm
Input voltage: DC12V

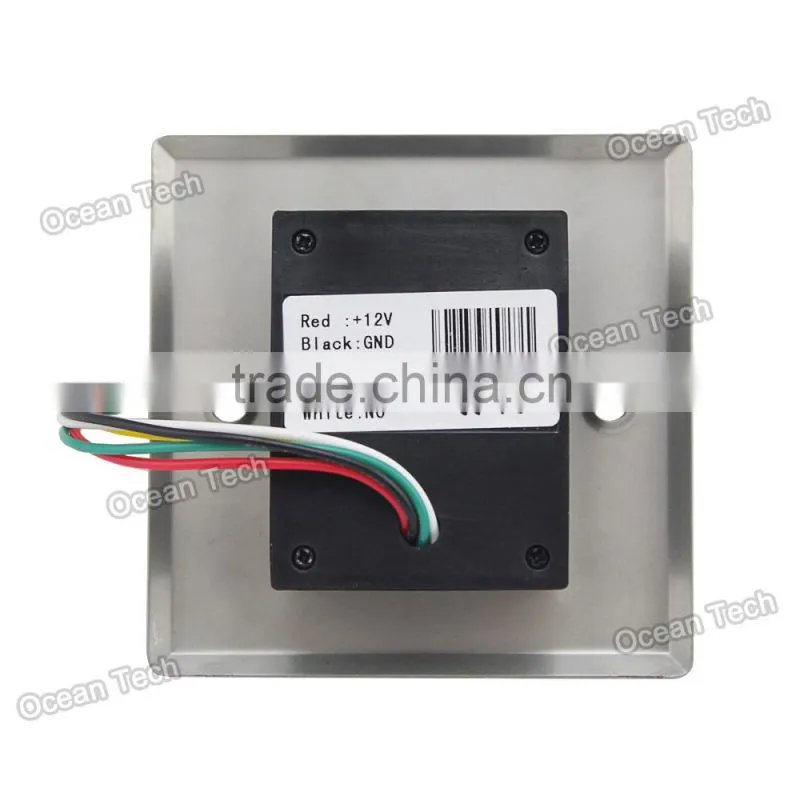

Contact output: NO NC COM contacts
Applicable Type: application of various narrow door frames
Operating Temperature: -20 ~ +50 °C
Operating Humidity: 0 ~ 95% (relative humidity)
Sensing distance :0.1~10cm
LED indicator status:
Round white LED: power off
Round blue LED: power on(standard)
Round red LED: Power ON(sensation)
Weight: 0.085kg
Features
- Featured with infrared technology, touch free, more convenient to use.
- Contactless, free from contagious disease spread.
- The switch responds agilely and quickly. IP55 industrial protection level.
- LED indication.Stainless steel plate, very durable to use.
- Suitable for doors, gates, or other exit automation control systems.
