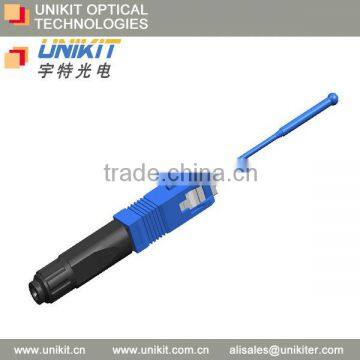

field installable fusion splicer-on connector

Specifications

1. field installable fusion splicer-on connector
2. ISO9001:2008, RoHs, TLC ,Own Patents

field installable fusion splicer-on connector



 Operation video:

/watch?v=yCiNAcVteo8





/watch?v=EmUgU2Vaquc





Item Parameters
Application 3.0 x 2.0 mm butterfly drop cable
Cladding Diameter 125μm ( 657A & 657B )
Coating Diameter 250μm
Insertion Loss ≤ 0.3dB(1310nm & 1550nm)
Reflection Loss > 50dB
Rate of success >95%
Clamping Force >5 N
Tension >20 N
Temperature Range -40~+75°C
Tension Test when installed (20 N)  IL ≤ 0.2dB  RL ≤ 5dB
Mechanical Endurance (500 times)  IL ≤ 0.2dB  RL ≤ 5dB
Fall-down Test (4 meters height, 3 time each direction)  IL ≤ 0.2dB  RL ≤ 5dB
