Help CenterWaterproof Fiber Optic Mechanical Splice FC Connector
Related Products
-
SC/PC FTTx Mechanical ConnectorUS$ 1.1 - 1.7MOQ: 100 Pieces -
Fiber Optic Splicing MachineUS$ 1 - 1.15MOQ: 100 Pieces
-
Fiber Optic Passive-Telecommunication EquipmentNegotiableMOQ: 100 Pieces
-
SC-PC Fast Fiber Optic ConnectorNegotiableMOQ: 100 Pieces
-
SC-UPC Fast Fiber Optic ConnectorNegotiableMOQ: 100 Pieces
Specifications
1 Waterproof Fiber Optic Mechanical Splice FC Connector2 Manufacuture, RoHs, ISO9001

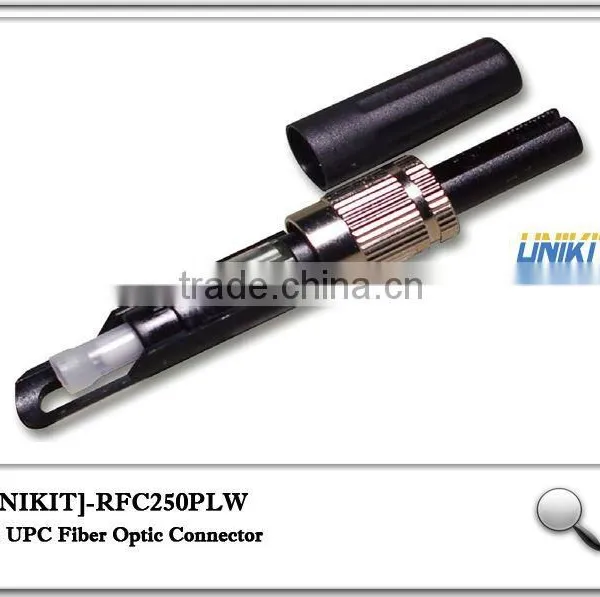

Waterproof Fiber Optic Mechanical Splice FC Connector
Company video:
/watch?v=EmUgU2Vaquc
Product Performance:
Technical specification
Item |
Parameter |
|
Cable Scope |
3.0 x 2.0 mm Bow-type Drop Cable 2.0/3.0 Indoor Cable Telecom Cable |
|
Fiber Diameter |
125μm ( 652 & 657 ) |
|
Coating Diameter |
250μm |
|
Mode |
SM |
|
Operation Time |
about 15s(exclude fiber presetting) |
|
Insertion Loss |
≤ 0.25dB(1310nm & 1550nm) |
|
Return Loss |
≤ -40dB |
|
Success Rate |
>98% |
|
Reusable Times |
>10 times |
|
Tighten Strength of Naked Fiber |
>5 N |
|
Tensile Strength |
>50 N |
|
Temperature |
-40~+85°C |
|
2 Improvement of the dust cap with optical fiber preset positioning device which reduce or avoid the use of complex tools.
3 A practical design with simple tools and easy operation in 15 seconds.
4 With reusable operation(over 5 times), Unikit Product is adopted by the three telecoms operators in China(China Mobile, China Telecom, China Unicom) and leading ahead in domestic market. In the first half of 2001, the sales of fiber optic connector and mechanical splicer has reached 4 million sets.
5 Product Technical Parameters:
Insert loss <0.3dB
Return loss >45dB
V groove clamping force variety <0.2dB(Insert loss variety)
4M height dropping test (3 times) <0.2dB(Insert loss variety)
temperature cycle test <0.2dB(Insert loss variety)
High temperature test <0.2dB(3000 hours 85°C)(Insert loss variety)
Low temperature test <0.2dB(3000 hours --40°C)
Wet and hot test <0.2dB(120 hours -40°C~85°C)
Vibration test, 10-55Hz in three direction, three hours in each direction <0.2dB(3000 hours 85%RH 85°C)
Marinated test <0.2dB(10-55Hz in three direction)
Wet and hot test <0.2dB(3000 43°C PH=5.5±0.5)
6 Company Perforance:
7 Unikit participated several important exhibitions worldwide.
8 Unikit Production Workshop:
9 Product Showcase:
10 Certificate of High-Tech Enterprise, Quality Management System Certificate, Certificate of TLC Test, National and International Patents of Invention and Patents of Ultility Model
