Specifications
1 ISO9001:2008 ROHs TLC Patents2 R&D Manufacture 0.25dB 45dB

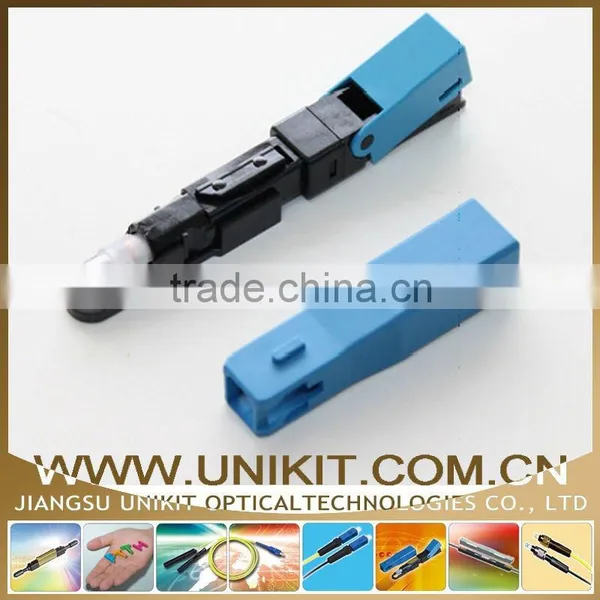

3 SC/UPC field assembly fast Connector
SC/UPC field assembly fast Connector
Application FTTx,Data Room Transformation
Patent NO. ZL 2007 1 0160602.3
Description
Without matching liquid, the connection point is on the surface of the ceramic ferrule. After connection, it is visual to inspect the result of operation, witch is fast and economic. The connector is applicable to SM and MM fiber cable and reusable times are over 100.
Technical specification
Item |
Parameter |
|
Insertion Loss |
≤ 0.30dB |
|
Return Loss |
≤ -40dB |
|
V-groove Clamping Force Variety (4N/30s) |
<0.2 dB |
|
4M Drop Test(3 times) |
<0.2 dB |
|
Temperature Cycle Test (-40~+85°C) |
<0.2 dB |
|
High Temperature Test |
<0.2 dB(3000 hours 85°C) |
|
Low Temperature Test |
<0.2 dB(3000 hours -40°C) |
|
Temperature Cycle Test |
<0.2 dB(120 hours -40°C~ 85°C) |
|
Wet and Hot Test |
<0.2 dB(3000 hours 85%RH,85°C) |
|
Vibration Test |
<0.2 dB(10~ 55Hz, 3 directions ,2 hours each direction) |
|
Submerging Test |
<0.2 dB(3000H 43°C,PH=5.5±0.5) 56mm |
|
