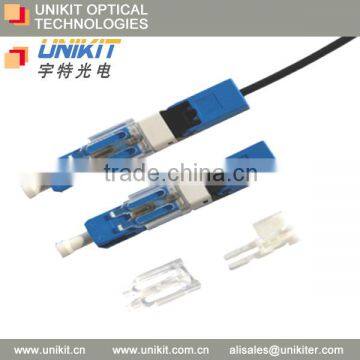

SC/UPC Optical Fiber Field assembly fast connector

FOB Price

USD $0.8 - $1.2 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Unikit
Model Number	ESC250D

1 ISO9001:2008 ROHs TLC Patents
2 SC/UPC Optical Fiber Field assembly fast connector
3 R&D Manufacture 0.25dB 45dB

SC/UPC Optical Fiber Field Splice Connector

Operation video weblink:

Item	Parameter
Cable Scope		3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter		125μm ( 652 & 657 )
Coating Diameter		250μm
Mode		SM
Operation Time		about 15s(exclude fiber presetting)
Insertion Loss		≤ 0.25dB(1310nm & 1550nm)
Return Loss		≤ -45dB
Success Rate		>98%
Reusable Times		>10 times
Tighten Strength of Naked Fiber		>5 N
Tensile Strength		>50 N
Temperature		-40~+85°C
On-line Tensile Strength Test (20 N)		IL ≤ 0.3dB
Mechanical Durability(500 times)		IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)		IL ≤ 0.3dB
