Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Low Insertion Loss FTTx Sc/apc Fast Connector ,fast Field Assembly Connector ,fiber Optic Assembly

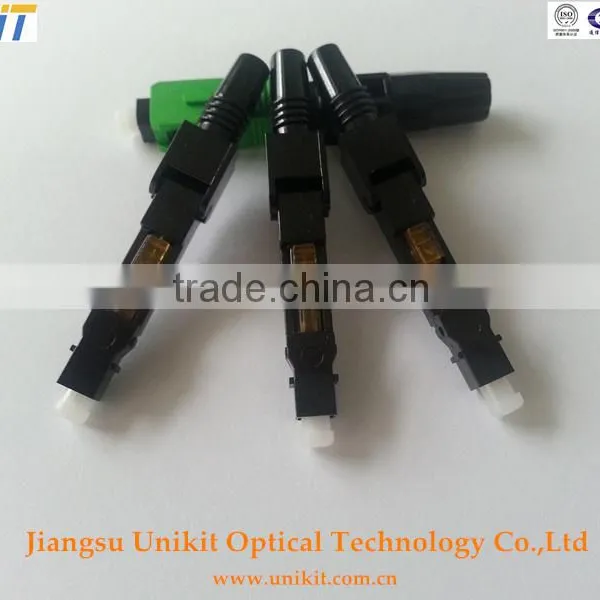

Low Insertion Loss FTTx Sc/apc Fast Connector ,fast Field Assembly Connector ,fiber Optic Assembly
US$ 1 - 1.7
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Unikit
Model Number:
ESC250P-APC SC/APC FTTH Drop Cable Connector
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Guanzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Supply sc Apc Optic Fast Connector,sc/apc Fast ConnectorUS$ 1 - 1MOQ: 10000 Pieces -
SC APC Fiber Optic ConnectorUS$ 1.5 - 1.8MOQ: 100 Pieces
-
SC APC-01 Fiber Optic ConnectorUS$ 1.5 - 1.8MOQ: 100 Pieces
-
SC/APC Field Assembly Fast ConnectorUS$ 1 - 2MOQ: 100 Pieces
-
Optical ConnectorUS$ 0.9 - 1.7MOQ: 10 Pieces
Place of Origin
Jiangsu, China
Brand Name
Unikit
Model Number
ESC250P-APC SC/APC FTTH Drop Cable Connector
Jiangsu SC APC Field Assembly Optical Connector
Low insertion loss FTTx sc/apc fast connector ,fast field assembly connector ,fiber optic assembly
Operation video:
/watch?v=n7hUkr5QmJs
Item |
Parameter |
|
Cable Scope |
3.0 x 2.0 mm Bow-type Drop Cable |
|
Fiber Diameter |
125μm ( 652 & 657 ) |
|
Coating Diameter |
250μm |
|
Mode |
SM |
|
Operation Time |
about 15s(exclude fiber presetting) |
|
Insertion Loss |
≤ 0.25dB(1310nm & 1550nm) |
|
Return Loss |
≤ -45dB |
|
Success Rate |
>98% |
|
Reusable Times |
>10 times |
|
Tensile Strength |
>5 N |
|
Tighten Strength of Coating |
>10 N |
|
Temperature |
-40~+85°C |
|
On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
|
Mechanical Durability(500 times) |
IL ≤ 0.3dB |
|
Drop Test(4m concrete floor, once each direction, three times total) |
IL ≤ 0.3dB |
|
