SC/APC Field Assembly Fast Connector

Name: SC/APC Field Assembly Fast Connector
Brand: Unikit Optical Technologies
SKU: 128574307
Availability: InStock

US$ 1 - 2 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Unikit Optical Technologies

Model Number:

ESCA250P Fiber Optic Connector

Jiangsu Unikit Optical Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Unikit Optical Technologies

Model Number ESCA250P Fiber Optic Connector

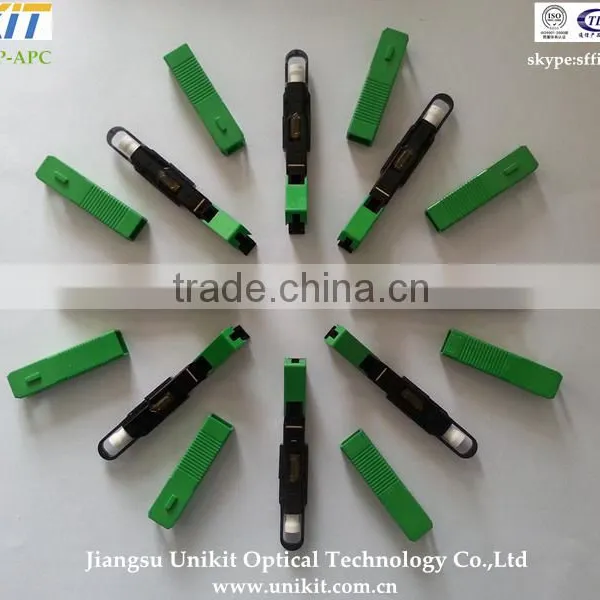

SC/APC field assembly fast connector

Operation video:

/watch?v=n7hUkr5QmJs

/watch?v=EmUgU2Vaquc

Description

1. Twin end-face of pre embedded fiber is polised in the factory..

2. Fiber optics is aligned in V-groove through the ceramic ferrule.

3. Side cover design provide complete preservation of the matching liquid.

4. Ceramic ferrule with pre-embedded fiber is polished to APC.

5. Length of the FTTH cable is controllable

6. Simple tooling, easy operation, portable style and reusable design.

Item	Parameter
Cable Scope		3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter		125μm ( 652 & 657 )
Coating Diameter		250μm
Mode		SM
Operation Time		about 15s(exclude fiber presetting)
Insertion Loss		≤ 0.25dB(1310nm & 1550nm)
Return Loss		≤ -45dB
Success Rate		>98%
Reusable Times		>10 times
Tensile Strength		>5 N
Tighten Strength of Coating		>10 N
Temperature		-40~+85°C
On-line Tensile Strength Test (20 N)		IL ≤ 0.3dB
Mechanical Durability(500 times)		IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)		IL ≤ 0.3dB
