SC/UPC Fiber Optic Fast Connector

Specifications

SC/UPC Fiber Optic Fast Connector

Product Performance:

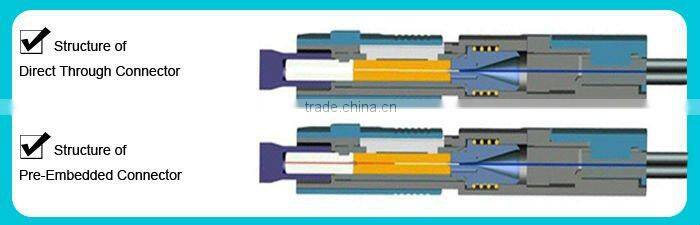

1  Applying patent of self-developed technology -- the alloy V groove design, fiber direct through field assembly connection, the connector is of high accuracy(98%), high strength(50N), great stability(insert loss<0.3dB, return loss>45dB) and durable life(30 years).

M-RSC250P-LW is developed from RSC250P which is also

the the first direct through connector in world;

the first to be verified by TLC Certification in China;

awarded several national and international patent of invention and patent of utility model;

higher than the national standards(Q/YTA 328-2008).

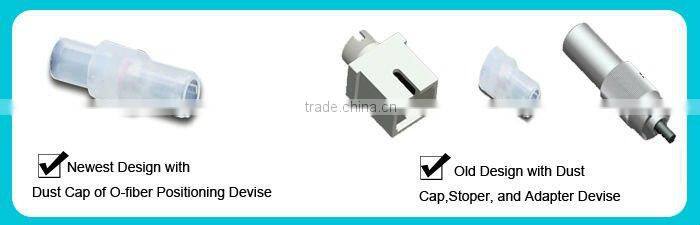

2  Improvement of the dust cap with optical fiber preset positioning device which reduce or avoid the use of complex tools.

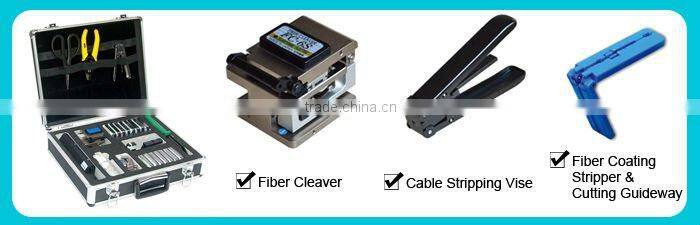

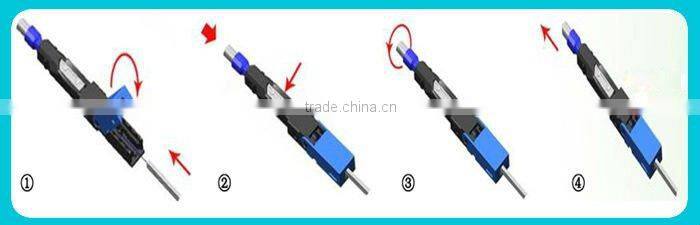

3  A practical design with simple tools and easy operation in 15 seconds.

4  With reusable operation(over 5 times), Unikit Product is adopted by the three telecoms operators in China(China Mobile, China Telecom, China Unicom) and leading ahead in domestic market. In the first half of 2001, the sales of fiber optic connector and mechanical splicer has reached 4 million sets.

5  Product Technical Parameters:

Insert loss  <0.3dB

Return loss >45dB

V groove clamping force variety  <0.2dB(Insert loss variety)

4M height dropping test (3 times)   <0.2dB(Insert loss variety)

temperature cycle test    <0.2dB(Insert loss variety)

High temperature test    <0.2dB(3000 hours 85°C)(Insert loss variety)

Low temperature test    <0.2dB(3000 hours --40°C)

Wet and hot test   <0.2dB(120 hours -40°C~85°C)

Vibration test, 10-55Hz in three direction, three hours in each direction <0.2dB(3000 hours 85%RH 85°C)

Marinated test  <0.2dB(10-55Hz in three direction)

Wet and hot test   <0.2dB(3000 43°C PH=5.5±0.5)

6 Company Perforance:

7 Unikit participated several important exhibitions worldwide.

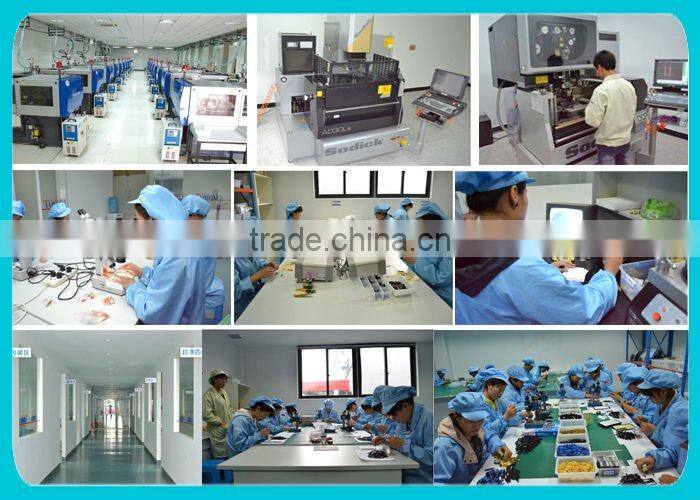

8 Unikit Production Workshop:

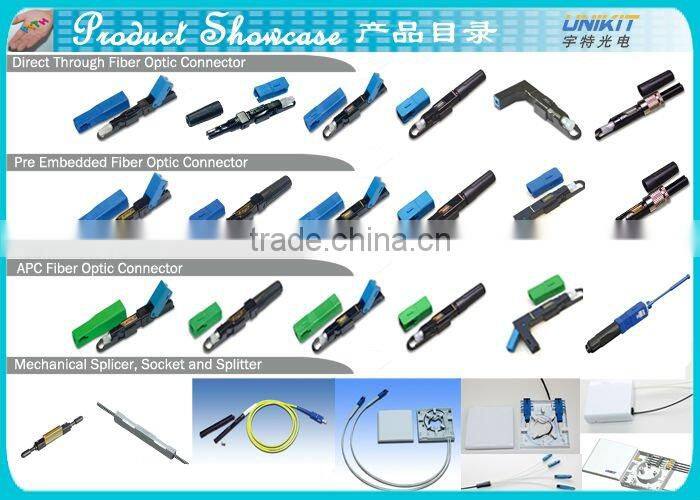

9 Product Showcase:

10 Certificate of High-Tech Enterprise, Quality Management System Certificate, Certificate of TLC Test, National and International Patents of Invention and Patents of Ultility Model
