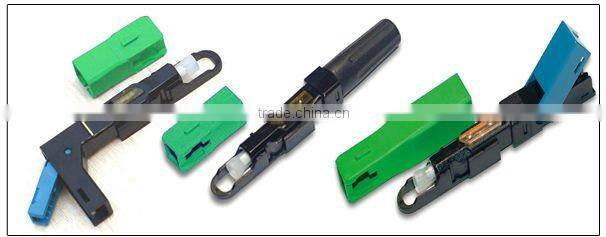

SC APC Type Fiber Optic Fast Connector ~UNIKIT ESC250P-APC Optical Equipment

Product Performance:

1  Applying patent of self-developed technology -- the alloy V groove design, fiber Pre Embedded field assembly connection, the dual end polish, the special preservation techniques of refractive index (matching) liquid, the connector is of high accuracy(98%), high strength(50N), great stability(insert loss<0.3dB, return loss>45dB) and durable life(30 years).

ESC250P-APC is also

the first fiber pre-embedded connector in China;

the first to be verified by TLC Certification in China;

awarded several national and international patent of invention and patent of utility model;

higher than the national standards(Q/YTA 328-2008).

2  The ferrule (pin) of the Fiber Pre Embedded Fast Connector can be grinded and polishedn as APC Ferrule according to the customers' need.

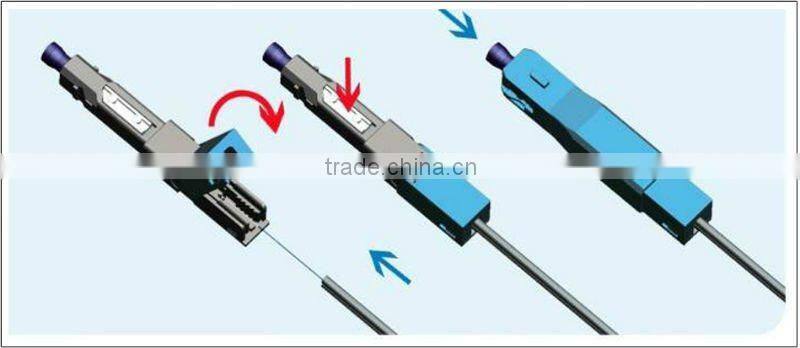

3  A practical design with simple tools and easy operation in 15 seconds.

4  With reusable operation(over 5 times), Unikit Product is adopted by the three telecoms operators in China(China Mobile, China Telecom, China Unicom) and leading ahead in domestic market. In the first half of 2001, the sales of fiber optic connector and mechanical splicer has reached 4 million sets.

5  Product Technical Parameters:

1       Insert loss  <0.3dB

2       Return loss >45dB

3       V groove clamping force variety  <0.2dB(Insert loss variety)

4       4M height dropping test (3 times)   <0.2dB(Insert loss variety)

5       temperature cycle test    <0.2dB(Insert loss variety)

6       High temperature test    <0.2dB(3000 hours 85°C)(Insert loss variety)

7       Low temperature test    <0.2dB(3000 hours --40°C)

8       Wet and hot test   <0.2dB(120 hours -40°C~85°C)

9       Vibration test, 10-55Hz in three direction, three hours in each direction <0.2dB(3000 hours 85%RH 85°C)

10     Marinated test  <0.2dB(10-55Hz in three direction)

11     Wet and hot test   <0.2dB(3000 43°C PH=5.5±0.5)

Company Performance:
