water filter, water treatment,water filtration
SLG Full Automatic Waste Water Filtration Equipments/water purifying equipment/refine oil price/oily water separators
-- It has a large filtering area, small volume, highly filtering efficiency, intensifying backwash flushing and small water consumption.
-- Filtering and draining can be operated at the same time.
Technical Parameter
Item |
SLG-50 |
SLG-100 |
SLG-150 |
SLG-200 |
SLG-250 |
SLG-300 |
SLG-400 |
SLG-500 |
SLG-600 |
SLG-800 |
Inlet(Outlet)Diameter |
50 |
100 |
150 |
200 |
250 |
300 |
400 |
500 |
600 |
800 |
Drainage Diameter |
40 |
50 |
65 |
80 |
100 |
100 |
115 |
125 |
150 |
180 |
Decelerator Power |
0.18 |
0.18 |
0.37 |
0.37 |
0.55 |
0.55 |
0.75 |
1.1 |
1.5 |
1.5 |
Working Pressure |
1.1 or 1.6MPa |
|||||||||
Filtration Precision |
0.1-5 |
|||||||||
Times Set Scope |
0-30h |
|||||||||
Time |
5s-10s |
|||||||||
Pressure Lose |
≤0.006 |
|||||||||
Control System |
Difference Pressure Control or PLC Control |
|||||||||
Max.Work Temperature |
65 |
|||||||||
Application
SLG Full automatic water filtering machine is an auto-operating, auto-cleaning, high-tech system, depending on the pressure of water and needless setting flushing water resources. This machine adopts multiple filtering cartridge and single flushing cartridge. It has a large filtering area, small volume, highly filtering efficiency, intensifying backwash flushing and small water consumption. Filtering and draining can be operated at the same time.
SLG full automatic water filtering machine can be used for all low-viscosity liquid. It is widely used in petroleum, steel, food industry, chemical engineering, machinery, pharmacy, electricity generating, irrigation, city planning, mines and sewage controlling. It is the most advanced auto-filtering machine.
Features
1. Reliable and safe. No manual work needed; low cost.
2. Filtering canister is highly stable. It is especially used to filter sharp granules. It has long service life with the best filtering and back
flush characteristic.
3. Easy to fix at a low cost.
4. Increase back flush effect at a low cost of water and energy. It can suit customer’s special working situation.
5. Easy to be moved; compact structure and small occupying area.
6. According to customer’s choice, different interfaces can be chosen. Low installation cost.
7. Proper industrial design; drainage is processed one filtering canister after another without pause.

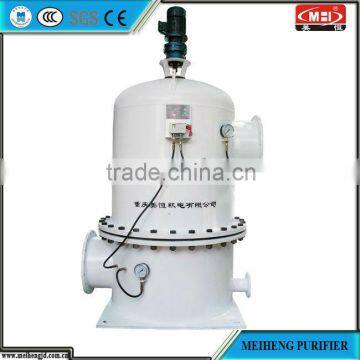

Photo Display
