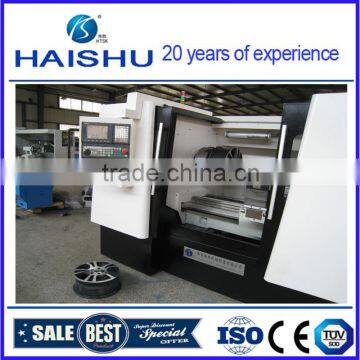

20 Inch Wheel Cnc Lathe Machine

Name: 20 Inch Wheel Cnc Lathe Machine
Brand: HaiShu
SKU: 128557765
Availability: InStock

US$ 10,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Taian Haishu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 800

Place of Origin Shandong, China

Brand Name HaiShu

Model Number CK6180W

Voltage 220/380

Power(W) 7.5

Dimension(L*W*H) 2680*1750*1980

Weight 3400

Certification CE/ISO

After-sales Service Provided Engineers available to service machinery overseas

CK6180A Wheel CNC lathe

Technical parameters

Project name	Unit	Technical paramaters
Max. turning diameter over the bed	Inch	31”(φ800mm)
Machining diameter of the wheel	Inch	Manual chuck Automatic chuck(Optional)
Max. machining length of the workpiece	mm	750
Max. measured depth of the probe	mm	50
Max. machining depth of the tool	mm	50
Machning accuracy		IT6-IT7
Surface roughness	um	Ra0.8~0.1
Main transmission form		Independent spindle; frequency conversion stepless
Range of spindle speed	rpm	150~2000
Main motor power	kw	7.5
Fast-moving feed	mm/min	X - axis:5000 Z - axis:8000
Repeat positioning accuracy	mm	X - axis:0.01 Z - axis:0.015
Standard accessories		4 station electric tool
Repeat positioning accuracy(mm)	mm	0.008
Section of turning tool(mm)	mm	25×25
The size of the machine (L×W×H)	mm	2680×1750×1980
Net weight of the machine(kg)		3400
