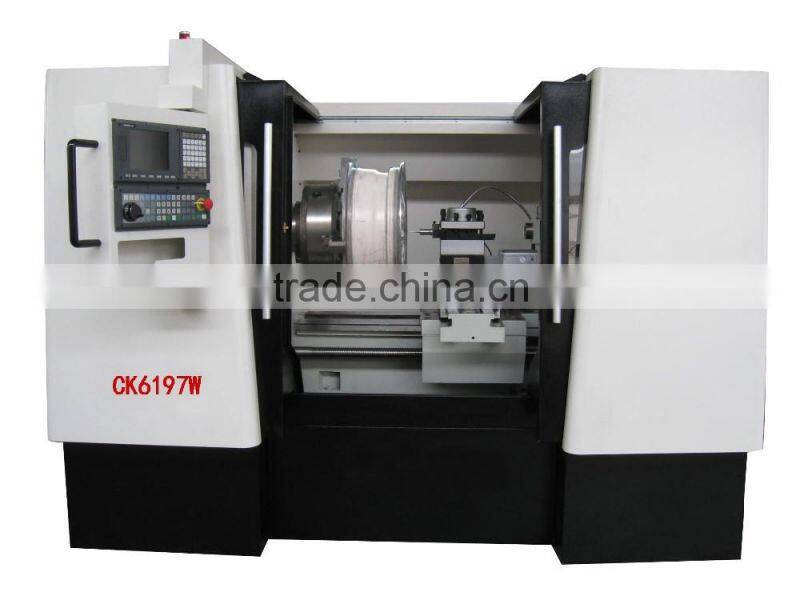

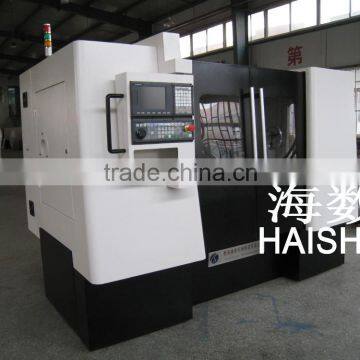

cnc machine for alloy wheels CK6197W rim repair machine
1.Technical parameters
Project name |
Unit |
Technical paramaters |
Max. wheel diameter |
Inch |
36" |
Max. workpiece length |
mm |
750 |
Probe measuring direction |
|
X,Z |
Probe needle |
mm |
φ3 × 40, φ6 × 50, or optional |
Machning accuracy |
|
IT6~IT7 |
Surface roughness |
um |
Ra0.8~1.6 |
Main transmission form |
|
Independent spindle; frequency conversion stepless |
Range of spindle speed |
rpm |
150~2000 |
Main motor power |
kw |
11 |
Fast-moving feed |
mm/min |
X - axis:5000 Z - axis:8000 |
Repeat positioning accuracy |
mm |
X - axis:0.01 Z - axis:0.015 |
Turret form |
|
4 station electric turret |
Repeat positioning accuracy |
mm |
0.008 |
Section of turning tool |
mm |
25×25 |
|
The size of the machine (L×W×H) |
mm |
2700×1950×2085 |
Net weight of the machine |
4200 |
|
2. Main features
Big wheel repair. New appearance, new structures, new technology.
Achieve the wheel surface profile measurement and data collection and Program Optimization.
Automatic precision repair and machining in accordance with the curve of the wheel surface.
Self-developed curve optimization software. Multilingual language interface. Installation and operation is simple.
Spindle frequency stepless speed.
X / Z axis servo drive.
Manual jaw self-centering chuck.
Machine guard full protection.
Automatic oil lubrication.
3. Uses
The machine tool suitable for High-precision turning and repair processing for surface of car wheel.
The machine tool has also the function of the general CNC lathes .
“HAISHU”
wheel repair curve optimization software features
1.The software has two-way curve optimization features of the X and Z direction, can achieve the curve optimization of the wheel face and circumference (rim) surfaces.
2.According to the wheel CAD drawings, modified the curves be generated by collection points of the wheel surface.
modify the curve of measurement acquisition point generating of wheel surface.
3.According to the point of collection from the surface of the wheel, you can automatically generate a curve, you can also manually modify and optimize the curve.
4.The software can display multiple languages, adapt to customers in different countries.
5.The software is self-developed, design can be personalized according to customer requirements.
6.The software requires no special installation, open to use, operation is very simple.
7.The software enables to a self-set for safety distance of advance and retreat knife.
If you are interested in cnc machine for alloy wheels CK6197W rim repair machine, welcome to leave a message or send the inquiry to understand the details of machine.
