High Quality and Best Price C57A Mini Cnc Lathe Machine Wityh ISO Certification From Gold Supplier

Name: High Quality and Best Price C57A Mini Cnc Lathe Machine Wityh ISO Certification From Gold Supplier
Brand: HAISHU
Availability: InStock

FOB Price

US$ 5,000 - 8,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	200mm	Place of Origin	Shandong, China
Brand Name	HAISHU	Model Number	C57A
Voltage	220/380v	Power(W)	500
Dimension(LWH)	1000X700X580	Weight	145/160KG
Certification	ISO9001,CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

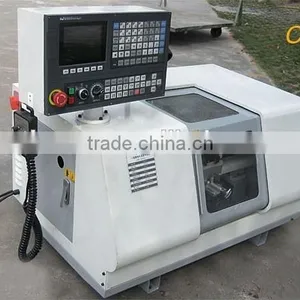

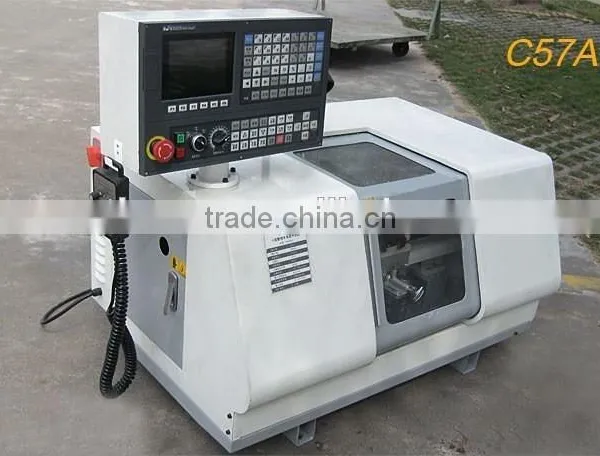

C57A mini cnc lathe

Technical parameters


Maximum turning diameter over bed	200mm
The maximum clamping diameter	80mm
The length of machine	400mm
X-axis maximum stroke	80mm
Z-axis maximum stroke	280mm
Spindle speed	300~1750rpm±10%
The maximum speed	2000mm/min
Z fast-moving speed	2000mm /min
X fast-moving speed	1000mm /min
Position of electric turret	4
Turret angle	360 °
Rotary cutting tool precision	0.005mm
Spindle bore diameter	20mm
Cooling system	yes
Threading function	yes
Spindle tater	MT3
Tail shaft taper	MT2
Mechanical resolution	0.0125mm
Power	500W
Handwheel	Electronic handwheel
Wire rod	C5
Weight	145/160kg
Dimensions(LWH)	1000× 700 × 580
Packing size	1100 × 800 ×680
CNC system	GSK928TEa

Swing over bed:200MM

Machine bed length:400MM

Max Clamping diameter:80MM

Spindle speed:300-1750RPM

Taper of spindle hole:MT#3

Travel speed of Z axis:2000MM/Min

Travel speed of X axis:1000MM/Min

Travel of Z axis:280MM

Travel of X axis:80MM

Tool charger:4 tools

Taper of tailstock:MT#2

Precision of return back:0.005MM

Output power:500W

CNC Controller:HNC-18XP-TD or GSK 928TEa or Sinumerik 808D

Machine dimension:1000*700*580MM

Packing Size:1100*800*680MM

Net weight/Gross weight:145/160KGS

Taian Haishu Machinery Co.,Ltd.,is specializing in the electromechanical integration prodrcts.

collection development,manufacturing,sales in the integration of high-tech enterprises.

The leading product is "HAISHU" brand CNC lathe,CNC milling machine,Machining

center,etc.We can supply the top quality products at the most favouriable price.

80% of our products is sold to aboard such as U.S.A.,Germany,Italy,Turkey,Greece,

India.Our products have enjoyde a high reprtation over there.

If we can cooperate with each other,I think we will build a very happy relationships with each other!

Looking forward to your specific inquiries.
