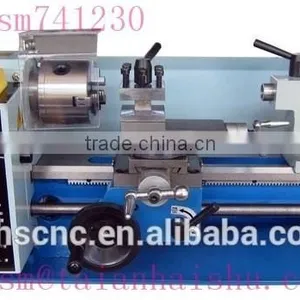

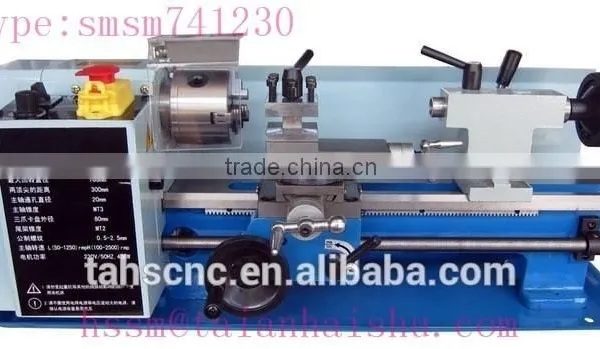

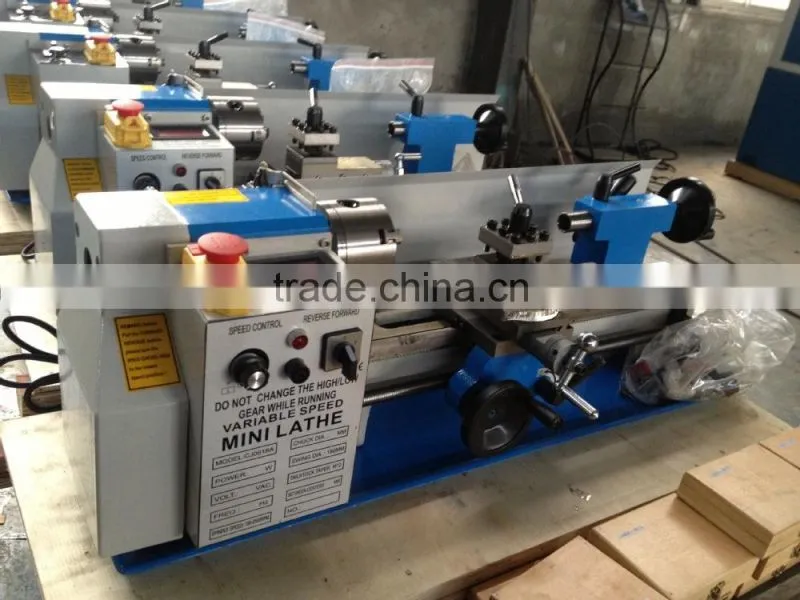

Mini Bench Lathe Machine CQ0618*300 With Best Price and High Quality From Gold Supplier Haishu

Name: Mini Bench Lathe Machine CQ0618*300 With Best Price and High Quality From Gold Supplier Haishu
Brand: HAISHU
SKU: 128538871

US$ 500 - 600 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Taian Haishu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 180mm

Place of Origin Shandong, China

Brand Name HAISHU

Model Number CQ0618

Voltage 220V/50Hz or 120V/60Hz

Power(W) 400

Dimension(L*W*H) 660/760x300x370

Weight 45Kg

Certification ISO,CE

Main features:

1.spindle speed digital display

2.High power dc motor

3.infinitely variable speeds

4.Super audio quenching lathe bed

5.Import speed control unit

Technical parameter for lathe mill machine :

Distance Between Centers	300mm
Maximum rotating diameter on bed body	180mm
max rotatin diameter on horizontal dragging plate	110mm
Spindle bore taper	MT3
Tailstock sleeve taper	MT2
3 jaw chuck outside diameter	80mm
Spindle bore diameter	20mm
Cross slide travel	65mm
Tool post travel	35mm
Range of metric threads	0.5-2.5mm
Range of Imperial Threads	12-52TPI
Precision of the spindle	0.01mm
Speed of the spindle	50-2500/100-2500RPM
Moto power	400w
Voltage and HZ	230V/50Hz or 120V/60Hz
Net weight	40Kg
Gross weight	45Kg
Dimension size	810×310×320mm
