High Lumens 80lm/w Samsung SMD Ra80 4 Inch 10w Led Downlight

High Lumens 80lm/w Samsung SMD Ra80 4 Inch 10w Led Downlight thumbnail-1
High Lumens 80lm/w Samsung SMD Ra80 4 Inch 10w Led Downlight thumbnail-2
High Lumens 80lm/w Samsung SMD Ra80 4 Inch 10w Led Downlight thumbnail-3
High Lumens 80lm/w Samsung SMD Ra80 4 Inch 10w Led Downlight thumbnail-4
High Lumens 80lm/w Samsung SMD Ra80 4 Inch 10w Led Downlight photo-1
High Lumens 80lm/w Samsung SMD Ra80 4 Inch 10w Led Downlight photo-2
High Lumens 80lm/w Samsung SMD Ra80 4 Inch 10w Led Downlight photo-3
High Lumens 80lm/w Samsung SMD Ra80 4 Inch 10w Led Downlight photo-4
US$ 12.8 - 36.1 MOQ: 12 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Samsung 5630
Warranty(Years):
Three Years
Input Voltage(V):
AC100-240V
Contact Supplier Request Quote Chat Now
Shenzhen NGE Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Samsung 5630
Warranty(Years) Three Years
Input Voltage(V) AC100-240V
Lamp Power(W) 10
Lamp Luminous Flux(lm) 800lm±5%
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, 2700-7000K
Working Temperature(℃) -30, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating Other, IP20
Certification C-tick, CE, EMC, LVD, SAA
Model Number NGE-SMD02-D10W4
Place of Origin Guangdong, China
Brand Name NGE

High lumens  80lm/w Samsung SMD Ra80 4 inch 10w led downlight



Product Description

NGE SMD led downlight  is the ideal replacement for the conventional downlight, energy-saving above 60%. Designed with advanced heat dissipation structure, used high brightness Samsung SMD and super constant current driver, NGE SMD led downlight is much better than most similar led downlight in the market.



Benefits

 Replacement for traditional recessed downlight kit

 Energy saving over 60%

 Environmental protection, no pollution

 Significant reduction in maintenance cost

 High CRI>80



Features

LED: Samsung 5630 LED, CRI>80, light efficiency of led downlight 80lm/w;
Driver: CE approved, conversion efficiency above 85% and PF>0.90;
Thermal technology: Advanced first class radiator materials;

Perfect light: Used low power SMD LED,more even and soft light;
Certificate: CE approval and RoHS compliant;
Warranty: 3 years.



Product Specification

Specification for  High lumens  80lm/w Samsung SMD Ra80 4 inch 10w led downlight

General

Information

 Product Type 4 inch 10w led downlight
Product Size

φ140*H80mm

Cutout

φ120mm

Product Color white/silver
       Electric          parameter  Driver Brand CE driver
Input Voltage AC100-240V/50-60Hz
Power 10W
PF >0.90
  Optical   Parameter
 LED Brand Samsung SMD
CRI >80
Color Temperature (CCT) 2700K-7000K
Luminous Flux 800lm±5%

Luminous Efficiency

 80lm/w
Beam angle  120°
Others Lifetime 50,000Hr
Operating temperature -30℃~45℃
Warranty 3 years
Materials AL housing+ +AL board
Installation Recessed
Application shops, hotel, supermarkets.,etc



Series Products of  High lumens  80lm/w Samsung SMD Ra80 4 inch 10w led downlight

Item No.

Power

Luminous Flux

Beam Angle

CRI

PF

Cutout
NGE-SMD02-D10W4 10W  800lm±5% 120° >80  >0.90   φ120mm
NGE-SMD02-D12W5  12W 960lm±5%   120°
   >80
  >0.90    φ150mm

NGE-SMD02-D15W5

 15W

1200lm±5%

120°

>80

>0.90

  φ150mm

NGE-SMD02-D15W6  15W 1200lm±5%  120°
 >80  >0.90    φ170mm
NGE-SMD02-D20W6  20W 1600lm±5%   120°
 >80
 >0.90   φ170mm

NGE-SMD02-D25W8

25W

2000lm±5%

120°

>80

>0.90

  φ200mm

NGE-SMD02-D30W8

30W

2400lm±5%

120°

>80

>0.90

φ200mm



Application

• Shop

• Supermarket

• Department store

• Hotel

Detailed Images

 High lumens 80lm/w Samsung SMD Ra80 4 inch 10w led downlightHigh lumens 80lm/w Samsung SMD Ra80 4 inch 10w led downlightHigh lumens 80lm/w Samsung SMD Ra80 4 inch 10w led downlightHigh lumens 80lm/w Samsung SMD Ra80 4 inch 10w led downlightHigh lumens 80lm/w Samsung SMD Ra80 4 inch 10w led downlightHigh lumens 80lm/w Samsung SMD Ra80 4 inch 10w led downlight

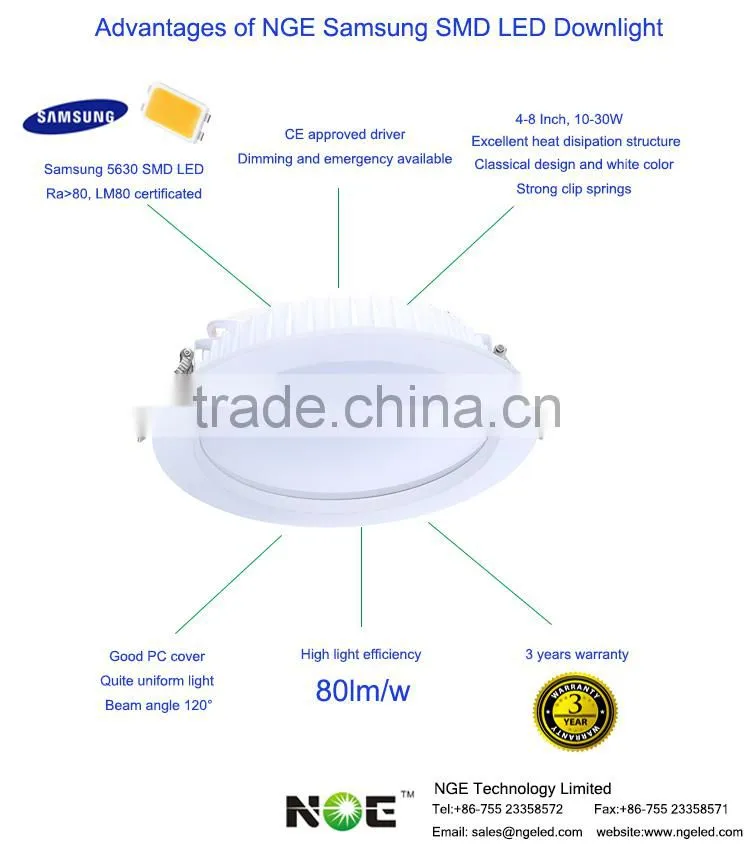

Product Advantages

 High lumens 80lm/w Samsung SMD Ra80 4 inch 10w led downlight

Packaging & Shipping



Item No.

Quantity/Carton

Net weight/Pcs

Gross Weight/ Carton

Carton Size

Notes

4inch led

downlight

24

0.5kg

18.8kg

57.5*38.5*30.5cm

Each light packed by one PE bag, and use EPE Foam packing in each box.

5inch led

downlight

 24 0.7kg  24.3kg  65.0*43.5*30.5cm

6inch led

 downlight

16

0.9kg

18.5kg

47.5*47.5*30.5cm

8inch led

downlight

12

1.1kg

21.2kg

55.5*55.5*23.0cm



Company Information



NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are adjustable LED downlight, adjustable rectangular LED downlight, led downlight, LED panel light, LED high bay light and LED tri-proof light.



NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are UL, TUV, SAA, CE and RoHS approved.



NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.



High lumens 80lm/w Samsung SMD Ra80 4 inch 10w led downlight



Welcome to inquire High lumens  80lm/w Samsung SMD Ra80 4 inch 10w led downlight .
