6 Inch 30w Led Light Downlight 30w SHARP COB Downlight Led

6 Inch 30w Led Light Downlight 30w SHARP COB Downlight Led thumbnail-1
6 Inch 30w Led Light Downlight 30w SHARP COB Downlight Led thumbnail-2
6 Inch 30w Led Light Downlight 30w SHARP COB Downlight Led thumbnail-3
6 Inch 30w Led Light Downlight 30w SHARP COB Downlight Led thumbnail-4
6 Inch 30w Led Light Downlight 30w SHARP COB Downlight Led photo-1

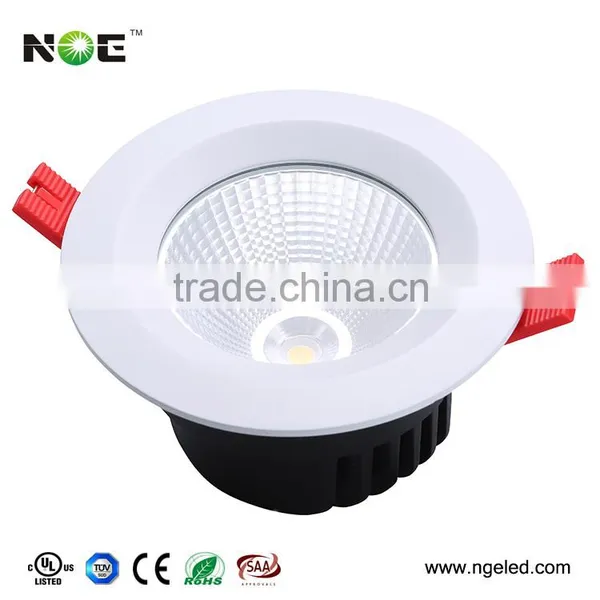

6 Inch 30w Led Light Downlight 30w SHARP COB Downlight Led photo-2

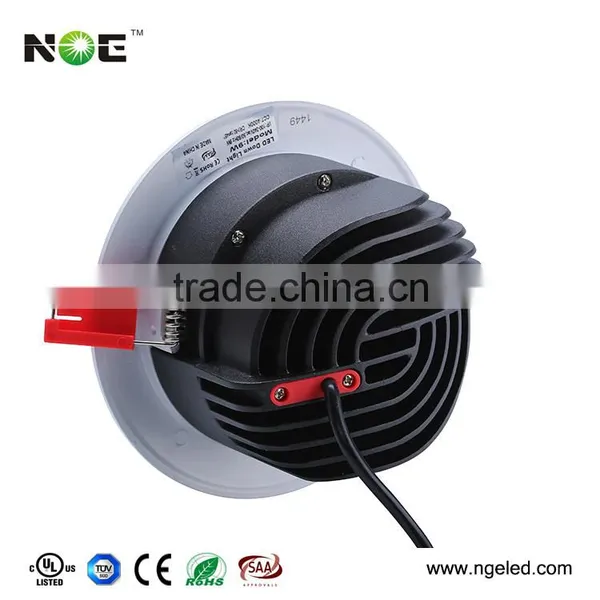

6 Inch 30w Led Light Downlight 30w SHARP COB Downlight Led photo-3

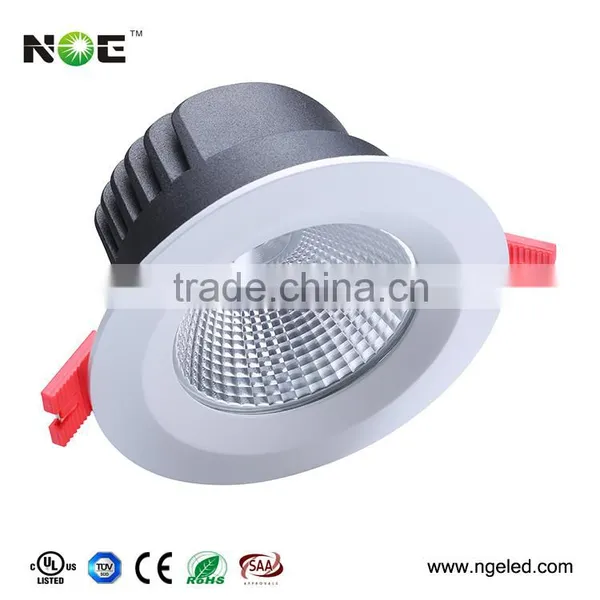

6 Inch 30w Led Light Downlight 30w SHARP COB Downlight Led photo-4
US$ 15.5 - 45 MOQ: 12 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Sharp COB
Warranty(Years):
Three Years
Input Voltage(V):
AC100-240V
Contact Supplier Request Quote Chat Now
Shenzhen NGE Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Sharp COB
Warranty(Years) Three Years
Input Voltage(V) AC100-240V
Lamp Power(W) 30
Lamp Luminous Flux(lm) 2550lm±5%
Lamp Luminous Efficiency(lm/w) 85
Color Temperature(CCT) Other, 2700-7000K
Working Temperature(℃) -30, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating Other, IP20
Certification C-tick, CE, EMC, LVD, SAA
Model Number NGE-COB01-D30W6
Place of Origin Guangdong, China
Brand Name NGE

6 inch 30w led light downlight 30w SHARP COB downlight led



Product Description

NGE COB LED downlight is the ideal replacement for the conventional downlight, energy-saving above 60%. Designed with advanced heat dissipation structure, used high brightness Sharp COB LED and super constant current driver, NGE COB LED downlight is much better than most similar COB LED downlight in the market.



Benefits

 Replacement for traditional downlight

 Energy saving over 60%

 Environmental protection, no pollution

 Significant reduction in maintenance cost

 High CRI>80



Features

LED: Sharp COB LED,CRI>80, light efficiency of downlight 85lm/w;
Driver: TUV, CE, SAA, UL listed,conversion efficiency above 85% and PF>0.95;
Thermal technology: Advanced fins design with first class radiator materials;

Wide range frame and cutout design, fully meet different requirements.

Small beam angle 35°/60° Anti-Glare design;
Certificate: CE,SAA approval and RoHS compliant;
Warranty: 3 years.



Product Specification

Specification for  6 inch 30w led light downlight 30w SHARP COB downlight led

General

Information

 Product Type COB led downlight 6 inch 30w
Product Size

φ195*H56mm
Cutout

φ165-185mm
Product Color white/black
       Electric          parameter  Driver Brand Lifud
Input Voltage AC100-240V/50-60Hz
Power 30W
PF >0.90
  Optical   Parameter
 LED Brand Sharp COB
CRI >80
Color Temperature (CCT) 2700K-7000K
Luminous Flux 2550lm±5%

Luminous Efficiency

 85lm/w
Beam angle  35°/60°
Others Lifetime 50,000Hr
Operating temperature -30℃~45℃
Warranty 3 years
Materials AL housing+tempered glass +AL board
Installation Recessed
Application shops, hotel, supermarkets.,etc



Series Products of  6 inch 30w led light downlight 30w SHARP COB downlight led

Item No.

Input Voltage

Power

Luminous Flux

Beam Angle

CRI

PF

Cutout

NGE-COB01-D6W4

AC100-240V

6W

510lm±5%

35°/60°

>80

>0.90

φ125-145mm
NGE-COB01-D9W4 AC100-240V
  9W  765lm±5% 35°/60° >80  >0.90  φ125-145mm
NGE-COB01-D12W4 AC100-240V   12W 1020lm±5% 35°/60°
 >80    >0.90
 φ125-145mm
NGE-COB01-D12W5 AC100-240V   12W 1020lm±5%   35°/60°
   >80
  >0.90    φ145-165mm
NGE-COB01-D15W5 AC100-240V   15W 1275lm±5%   35°/60°    >80
  >0.90    φ145-165mm

NGE-COB01-D20W5

AC100-240V

 20W

1700lm±5%

35°/60°

>80

>0.90

  φ145-165mm

NGE-COB01-D24W5 AC100-240V
  24W 2040lm±5%     35°/60°
 >80  >0.90    φ145-165mm
NGE-COB01-D12W6 AC100-240V   12W 1020lm±5%   35°/60°
 >80  >0.90    φ165-185mm
NGE-COB01-D15W6 AC100-240V   15W 1275lm±5%   35°/60°
 >80   >0.90 φ165-185mm
NGE-COB01-D20W6 AC100-240V
  20W 1700lm±5%   35°/60°
   >80
 >0.90  φ165-185mm
NGE-COB01-D24W6 AC100-240V   24W 2040lm±5%     35°/60°
 >80  >0.90  φ165-185mm
NGE-COB01-D30W6 AC100-240V
  30W 2550lm±5%   35°/60°
 >80  >0.90    φ165-185mm
NGE-COB01-D36W6  AC100-240V
  36W   3060lm±5% 35°/60°
 >80  >0.90  φ165-185mm

NGE-COB01-D20W8

AC100-240V

20W

1700lm±5%

35°/60°

>80

>0.90

  φ205-230mm

NGE-COB01-D24W8

AC100-240V

24W

2040lm±5%

35°/60°

>80

>0.90

φ205-230mm

NGE-COB01-D30W8

AC100-240V

30W

2550lm±5%

35°/60°

>80

>0.90

φ205-230mm

NGE-COB01-D36W8

AC100-240V

36W

3060lm±5%

35°/60°

>80

>0.90

φ205-230mm

NGE-COB01-D42W8

AC100-240V

42W

3570lm±5%

35°/60°

>80

>0.90

φ205-230mm

NGE-COB01-D48W8

AC100-240V

48W

4080lm±5%

35°/60°

>80

>0.90

φ205-230mm



Application

• Shop

• Supermarket

• Department store

• Hotel

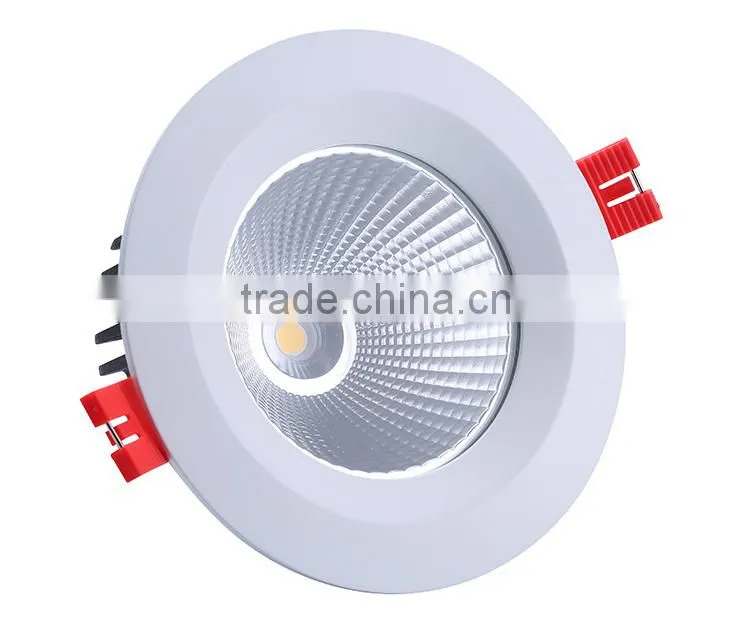

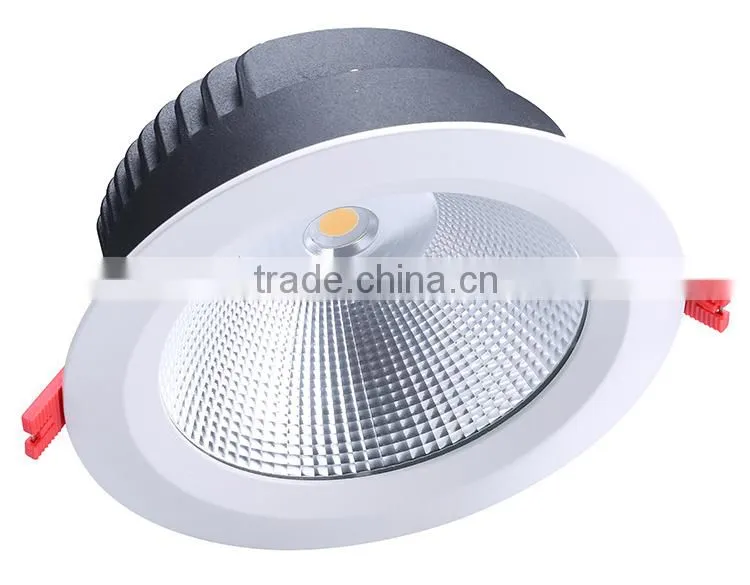

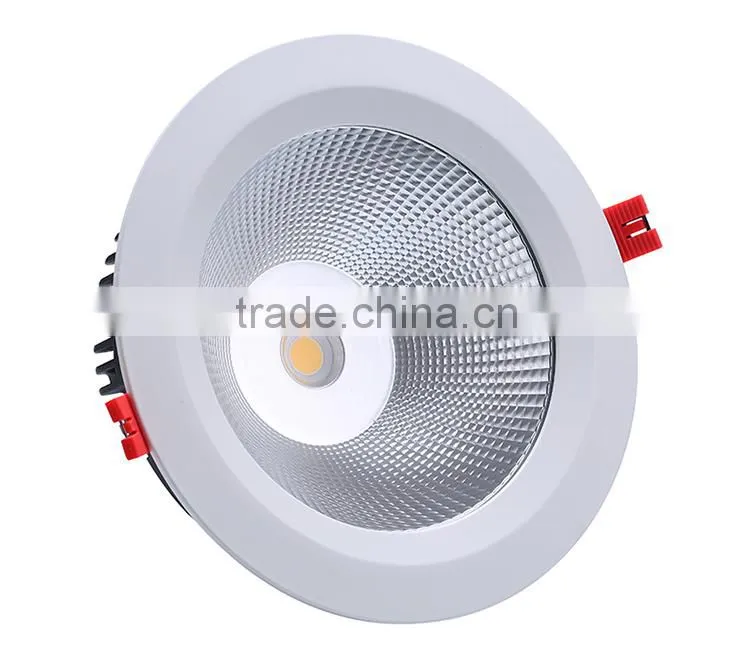

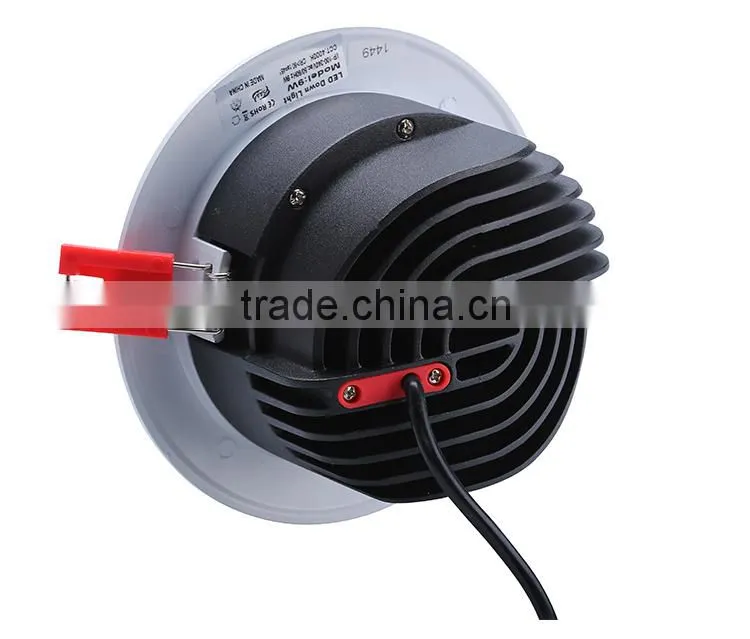

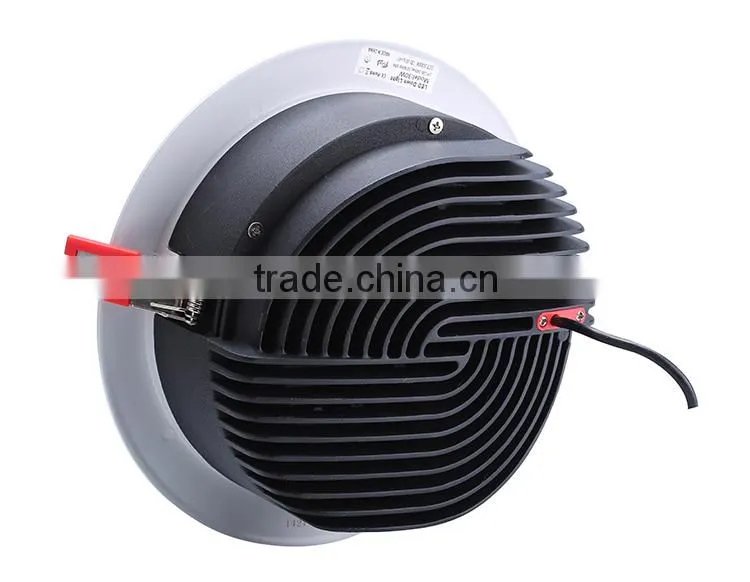

Detailed Images

 6 inch 30w led light downlight 30w SHARP COB downlight led6 inch 30w led light downlight 30w SHARP COB downlight led6 inch 30w led light downlight 30w SHARP COB downlight led6 inch 30w led light downlight 30w SHARP COB downlight led6 inch 30w led light downlight 30w SHARP COB downlight led

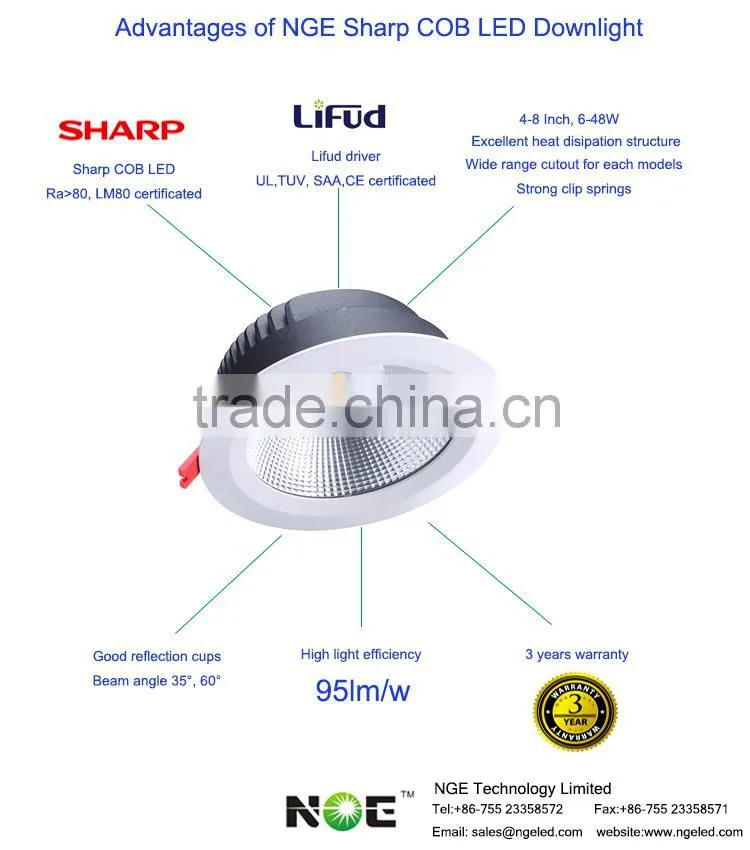

Product Advantages

 6 inch 30w led light downlight 30w SHARP COB downlight led

Packaging & Shipping



Item No.

Quantity/Carton

Net weight/Pcs

Gross Weight/ Carton

Carton Size

Notes

   4inch COB LED downlight

16

0.7kg

16.4kg

41*39*43.5cm

Each light packed by one PE bag, and use EPE Foam packing in each box.
5inch COB LED downlight 16 0.9kg  19.6kg  44*42*43.5cm

6inch COB LED downlight

12

1.03kg

16.6kg

50*48*33cm

    8inch COB LED downlight

12

1.6kg

23.6kg

58*56*37.5cm



Company Information



NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are adjustable LED downlight, adjustable rectangular LED downlight, LED panel light, LED high bay light and LED tri-proof light.



NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are UL, TUV, SAA, CE and RoHS approved.



NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.



6 inch 30w led light downlight 30w SHARP COB downlight led



Welcome to inquire  6 inch 30w led light downlight 30w SHARP COB downlight led.
