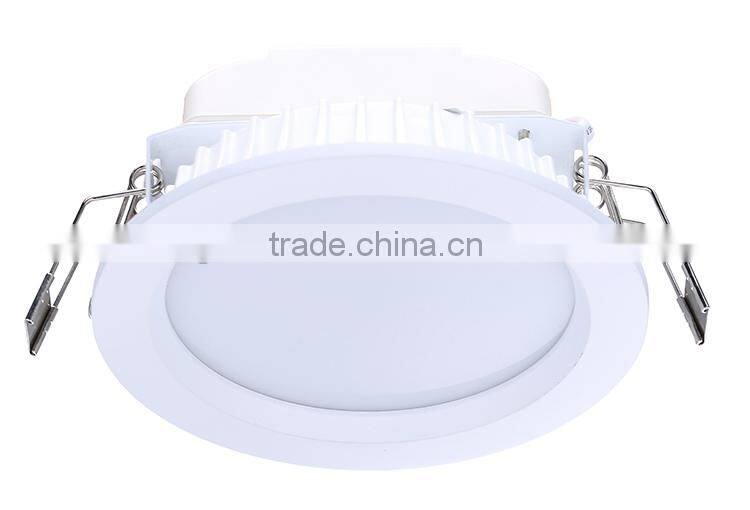

Three years warranty Samsung SMD Ra80 8 inch 30w led downlight
- 20000 Piece / Pieces per Month
- Shenzhen Hong Kong
- T/T Credit Card
You May Like
-
Ra80 95lm/w Ra80 Samsung smd 2700-6500k led 48w downlight
-
Lifud driver 95lm/w Samsung SMD Ra80 9w 4" recessed led light
-
Best price with good quality 20w led downlight smd samsung led downlight
-
SAA CE ROHS Samsung SMD dimmable led downlight 30w 36w 42w 48w 8 inch led down light
-
Hot Sale and high quality samsung 5630 led downlight 24w
-
Samsung led downlight ce rohs 30w led dimmable downlight
Product Details
LED Light Source | Samsung 5630 | Warranty(Years) | Three Years | |
Input Voltage(V) | AC100-240V | Lamp Power(W) | 30 | |
Lamp Luminous Flux(lm) | 2400lm±5% | Lamp Luminous Efficiency(lm/w) | 80 | |
Color Temperature(CCT) | Other, 2700-7000K | Working Temperature(℃) | -30, 45 | |
Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
IP Rating | Other, IP20 | Certification | C-tick, CE, EMC, LVD, SAA | |
Model Number | NGE-SMD02-D30W8 | Place of Origin | Guangdong, China | |
Brand Name | NGE |
Product Description

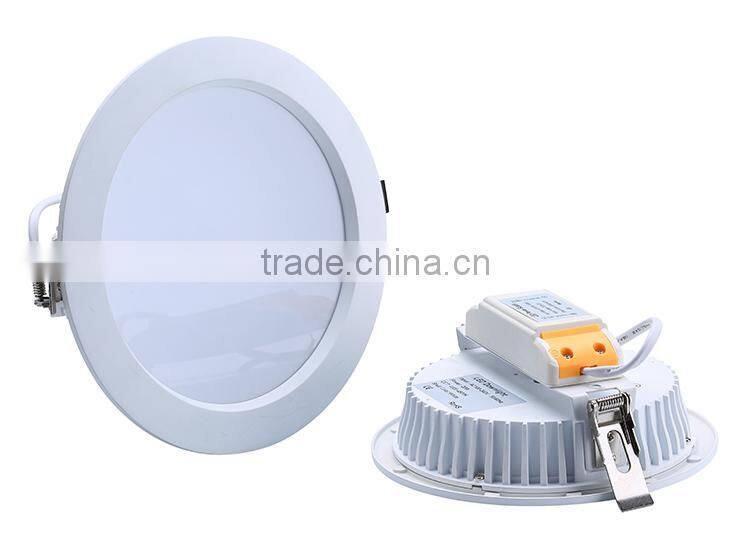

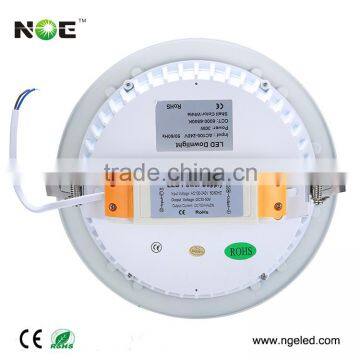

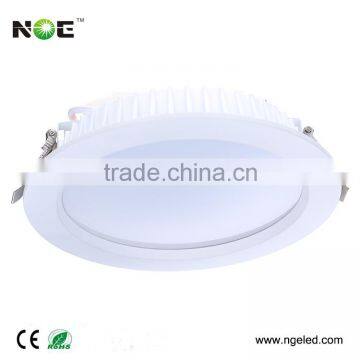

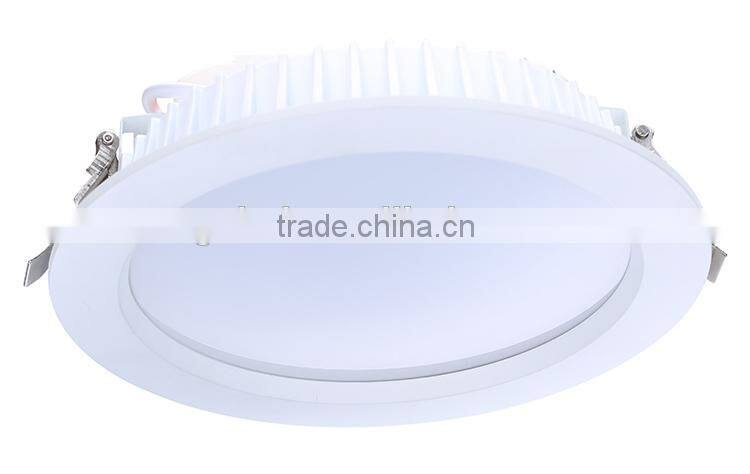

Three years warranty Samsung SMD Ra80 8 inch 30w led downlight
NGE SMD led downlight is the ideal replacement for the conventional downlight, energy-saving above 60%. Designed with advanced heat dissipation structure, used high brightness Samsung SMD and super constant current driver, NGE SMD led downlight is much better than most similar led downlight in the market.
Benefits
Replacement for traditional recessed downlight kit
Energy saving over 60%
Environmental protection, no pollution
Significant reduction in maintenance cost
High CRI>80

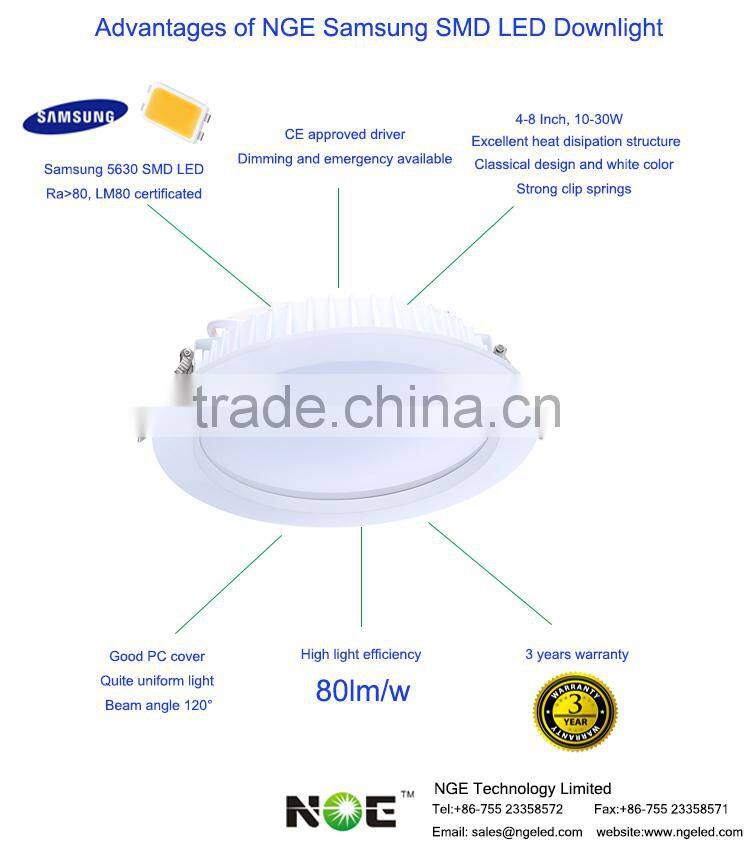

Features
LED: Samsung 5630 LED, CRI>80, light efficiency of led downlight 80lm/w;
Driver: CE approved, conversion efficiency above 85% and PF>0.90;
Thermal technology: Advanced first class radiator materials;
Perfect light: Used low power SMD LED,more even and soft light;
Certificate: CE approval and RoHS compliant;
Warranty: 3 years.
Product Specification
Specification for Three years warranty Samsung SMD Ra80 8 inch 30w led downlight | ||
General Information | Product Type | 8 inch 30w led downlight |
Product Size | φ230*H88mm | |
Cutout | φ200mm | |
Product Color | white/silver | |

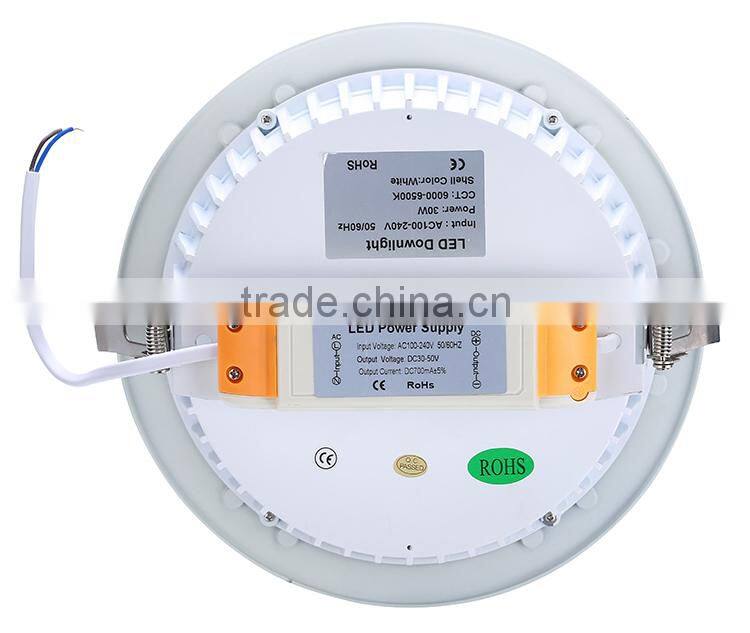

Electric parameter | Driver Brand | CE driver |
Input Voltage | AC100-240V/50-60Hz | |
Power | 30W | |
PF | >0.90 | |
Optical Parameter | LED Brand | Samsung SMD |
CRI | >80 | |
Color Temperature (CCT) | 2700K-7000K | |
Luminous Flux | 2400lm±5% | |
Luminous Efficiency | 80lm/w | |
Beam angle | 120° | |
Others | Lifetime | 50,000Hr |
Operating temperature | -30℃~45℃ | |
Warranty | 3 years | |
Materials | AL housing+ +AL board | |
Installation | Recessed | |
Application | shops, hotel, supermarkets.,etc |

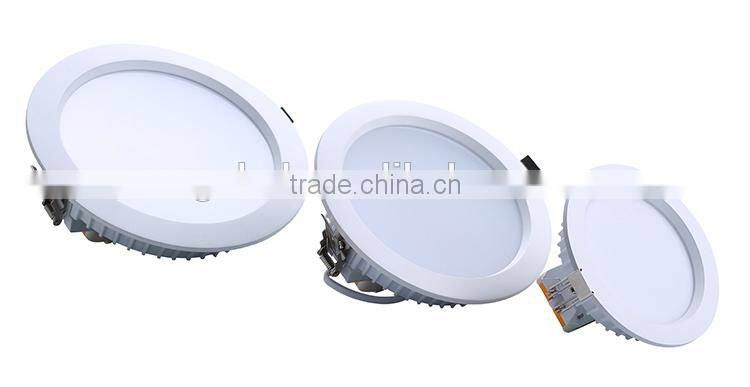

Series Products of Three years warranty Samsung SMD Ra80 8 inch 30w led downlight
Item No. | Power | Luminous Flux | Beam Angle | CRI | PF | Cutout |
NGE-SMD02-D10W4 | 10W | 800lm±5% | 120° | >80 | >0.90 | φ120mm |
NGE-SMD02-D12W5 | 12W | 960lm±5% | 120° | >80 | >0.90 | φ150mm |
NGE-SMD02-D15W5 | 15W | 1200lm±5% | 120° | >80 | >0.90 | φ150mm |
NGE-SMD02-D15W6 | 15W | 1200lm±5% | 120° | >80 | >0.90 | φ170mm |
NGE-SMD02-D20W6 | 20W | 1600lm±5% | 120° | >80 | >0.90 | φ170mm |
NGE-SMD02-D25W8 | 25W | 2000lm±5% | 120° | >80 | >0.90 | φ200mm |
NGE-SMD02-D30W8 | 30W | 2400lm±5% | 120° | >80 | >0.90 | φ200mm |
Application
• Shop
• Supermarket
• Department store
• Hotel
Item No. | Quantity/Carton | Net weight/Pcs | Gross Weight/ Carton | Carton Size | Notes |
4inch led downlight | 24 | 0.5kg | 18.8kg | 57.5*38.5*30.5cm | Each light packed by one PE bag, and use EPE Foam packing in each box. |
5inch led downlight | 24 | 0.7kg | 24.3kg | 65.0*43.5*30.5cm | |
6inch led downlight | 16 | 0.9kg | 18.5kg | 47.5*47.5*30.5cm | |
8inch led downlight | 12 | 1.1kg | 21.2kg | 55.5*55.5*23.0cm |
NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are adjustable LED downlight, adjustable rectangular LED downlight, led downlight, LED panel light, LED high bay light and LED tri-proof light.
NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are UL, TUV, SAA, CE and RoHS approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
Welcome to inquire Three years warranty Samsung SMD Ra80 8 inch 30w led downlight.
