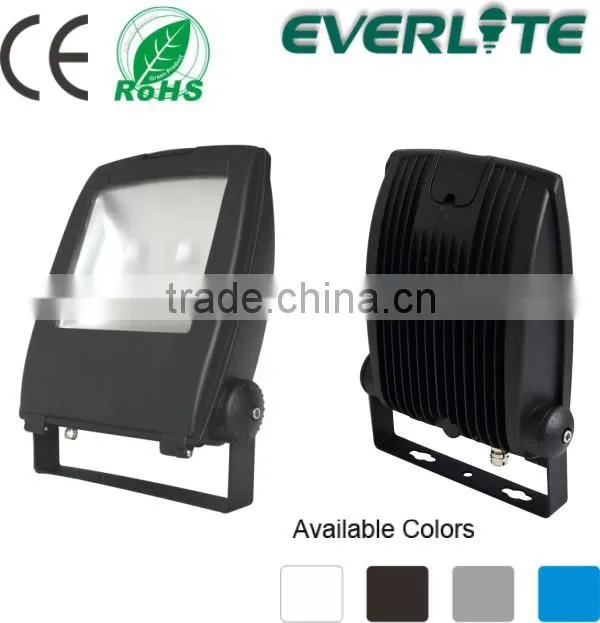

IP65 200w Led Floodlight with TUV-GS SAA CB 5 years warranty

Name: IP65 200w Led Floodlight with TUV-GS SAA CB 5 years warranty
Brand: Everlite
Availability: InStock

FOB Price

USD $190 - $230 / Piece

2 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	CREE COB	Input Voltage(V)	90-305v
Lamp Power(W)	200	Lamp Luminous Flux(lm)	20000
Lamp Luminous Efficiency(lm/w)	100	Color Temperature(CCT)	Other, 2700-6500k
Working Temperature(℃)	-45, 50	Working Lifetime(Hour)	70000
Lamp Body Material	Aluminum Alloy	IP Rating	IP65
Certification	CE, EMC, GS, LVD, SAA, UL	Warranty(Year)	5
Place of Origin	Zhejiang, China	Brand Name	Everlite
Model Number	EL-FL01

Product Description

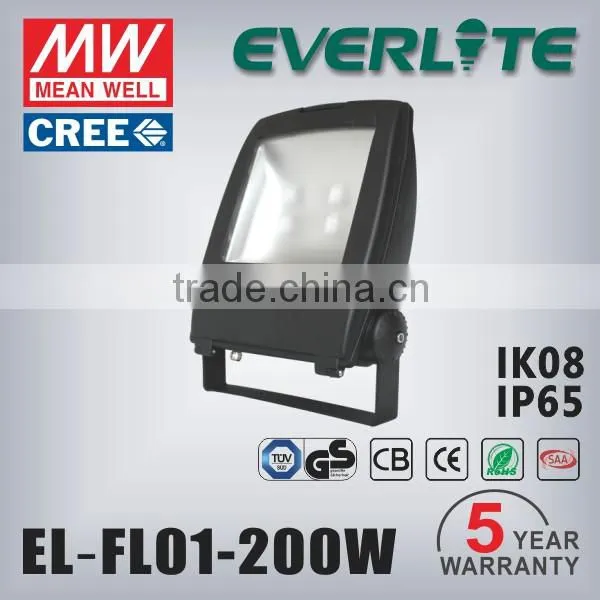

200W led flood light

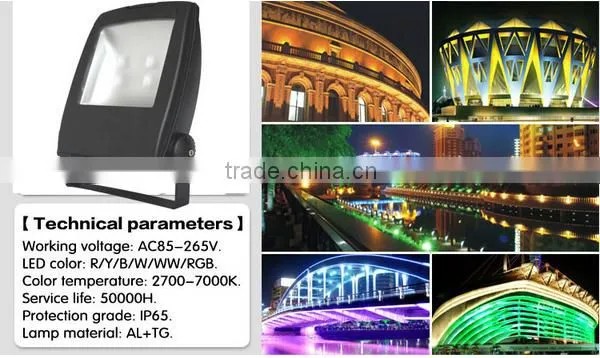

Lighting Walls, Advertisement Boards, Gardens,

Hotels,Car Parks, Areas with CCTV

Overview

CREE/Bridgelux/Citizen/Sharp/Nichia COB chips Available
MEANWELL and INVENTRONICS Led Driver Available

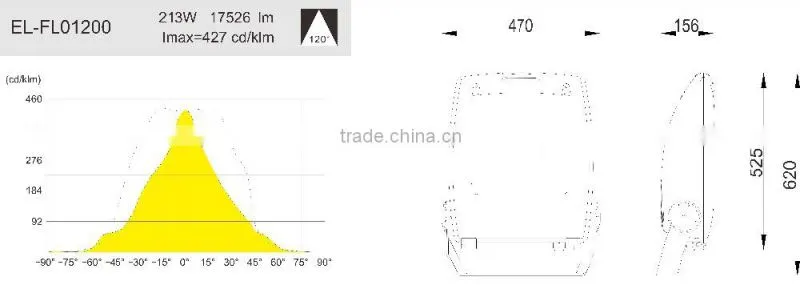

More than 3 different beam angles to satisfy any kind of road requirements
Die-casting aluminum housing with phosphate treatment and power coated finishing, equipped with high luminous efficiency CREE LED source and high efficiency and power factor LED power supply MEAN WELL/ INVENTRONICS. It is the best choice in the energy saving generation.

Product benefits

1.LED LUMINOUS SOURCE

American CREE high power LED luminous source, with LM-80 certificte, providing excellent lumen output and high CRI, is compatible with Bridgelux, Sharp, Nichia COB LED source as well.More information about CREE LED source, please visit .

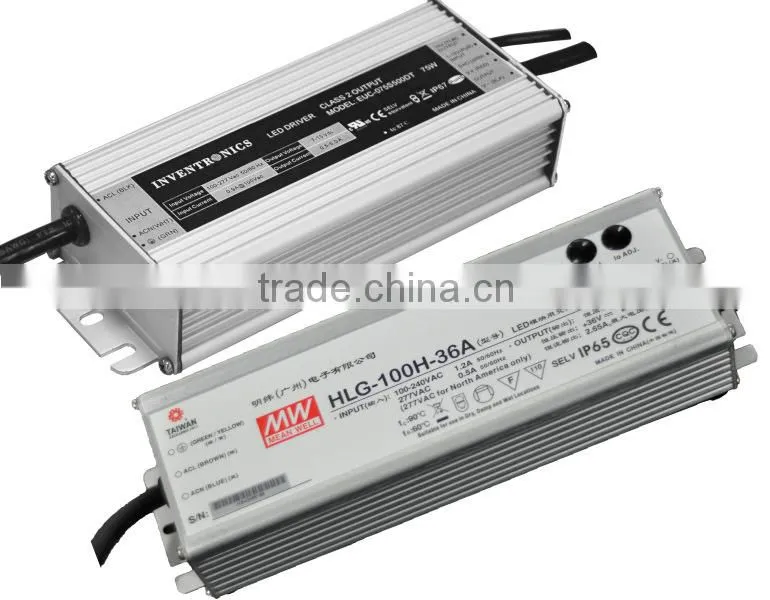

2.LED DRIVER

Full range EVERLITE LED street lights are utilizingMEAN WELL/ INVENTRONICS high end driver, great luminous stability, long lifespan and optional performance status. More information about MEAN WELL LED driver technologies, please visit www.meanwell.co m.

Detailed Fectures

Die-casting aluminum body with anti-corrosion treatment.
Highly polished aluminum reflector.
IP65 rated for external use.
Equipped with CREE LED chip, generate high luminous flux.
High efficient and power factor led power supply
Long life span over 70000 hours
Obstain a 50%0-70% energy saving compared with Halogen lamps

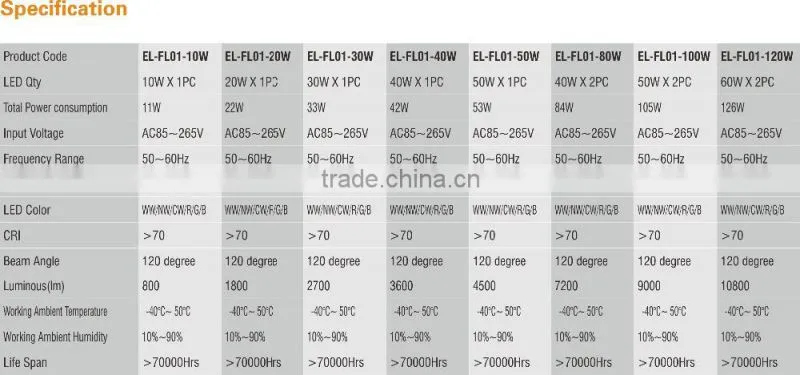

Specification

Model	EL-FL01-200W
LED Brand	CREE
Driver Brand	MEANWELL/Inventronics
Power Comsuption	200W
Input Voltage	90v-305v AC/12-24v DC
Power Efficiency	>90%
Power Factor	>0.95
Surge Production Class	3KV/6KV/10KV
Lamp Rated Luminous Efficiency	100lm/w
Lamp Rated Lumen output	20000lm (Lumen tolerance +/- 5%)
Color Rendering Index	>70
Color Temperature	2700-7000K
Working Environment	Between -40℃~50℃,10%~90%RH
Total Harmonic Distortion	<15%
Life span	70000hours
Wind Index	Force 12
Body and Shell Materials	Aluminum Alloy
IP Rating	IP65
Certification	TUV,GS,SAA,CB,CE&ROHS
Optional Function	0-10V DC or PWM Signal or Resistance Dimming Timer/ Photocell Contral
Warranty	5 years

Packing Details

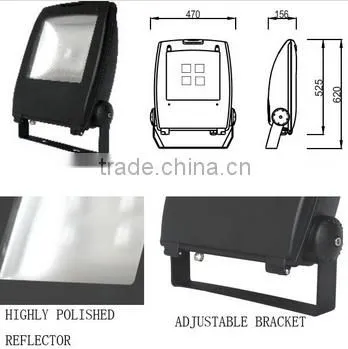

Fixture Dimension	470x156x620mm
Fixture Weight	13.7kg
Packing Dimension	595x525x225mm
Packing Weight	14.9kg

Control System

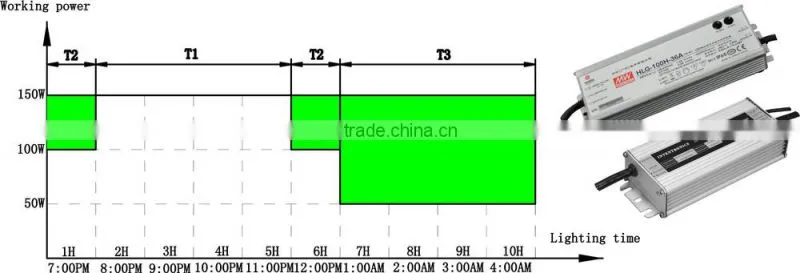

A. Programmable time control dimmable LED driver

EVERLITE LED street lights can be installed with dimmable driver that varies voltage from 0to 10v DC and can also support intelligent communication protocol. Its features including programmable dimming control, factory setting and accurate calibration etc.

B. Light control LED street lights

Though street lamp light controller, detecting theenvironment illuminance<10lux, after 30 seconds,it automatically turn on, decting the environmentilluminance>30lux, after 30 seconds, it automaticallyturn off.

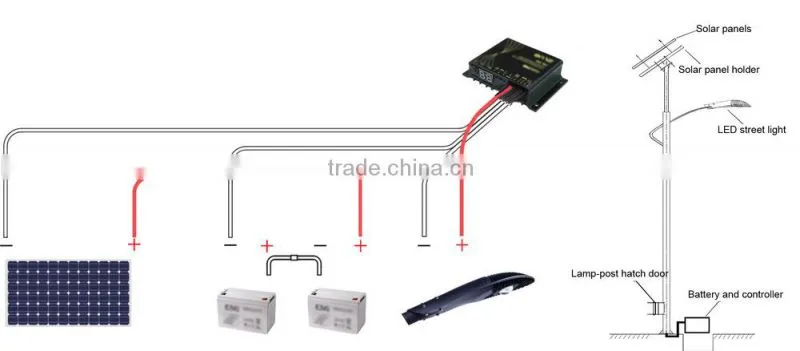

C. Solar power street lighting system

The system is mainly composed by five parts: LED streetlights, solar panels, solar controller, storage tattery andlamp-pole.

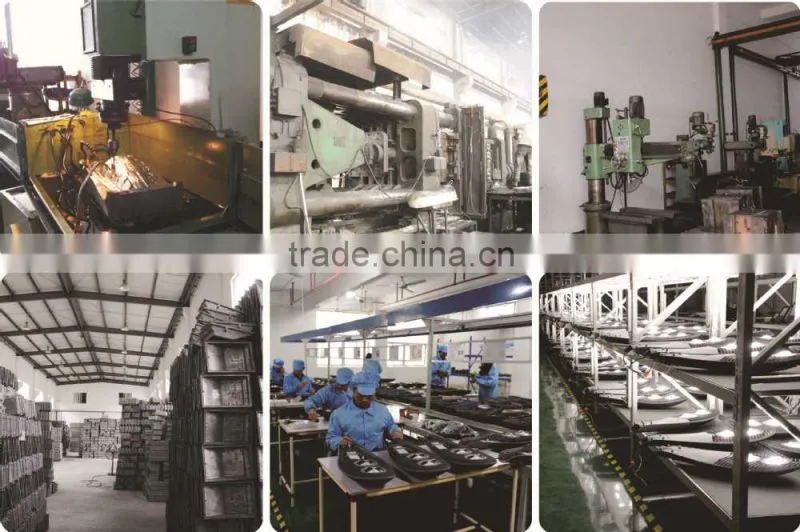

Production Process

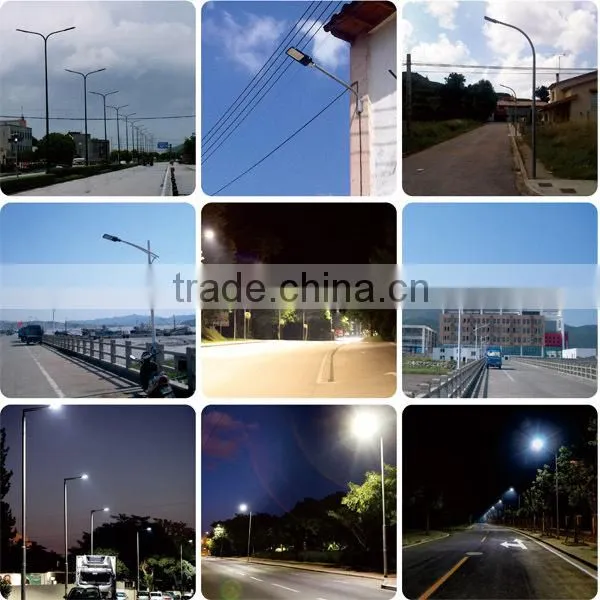

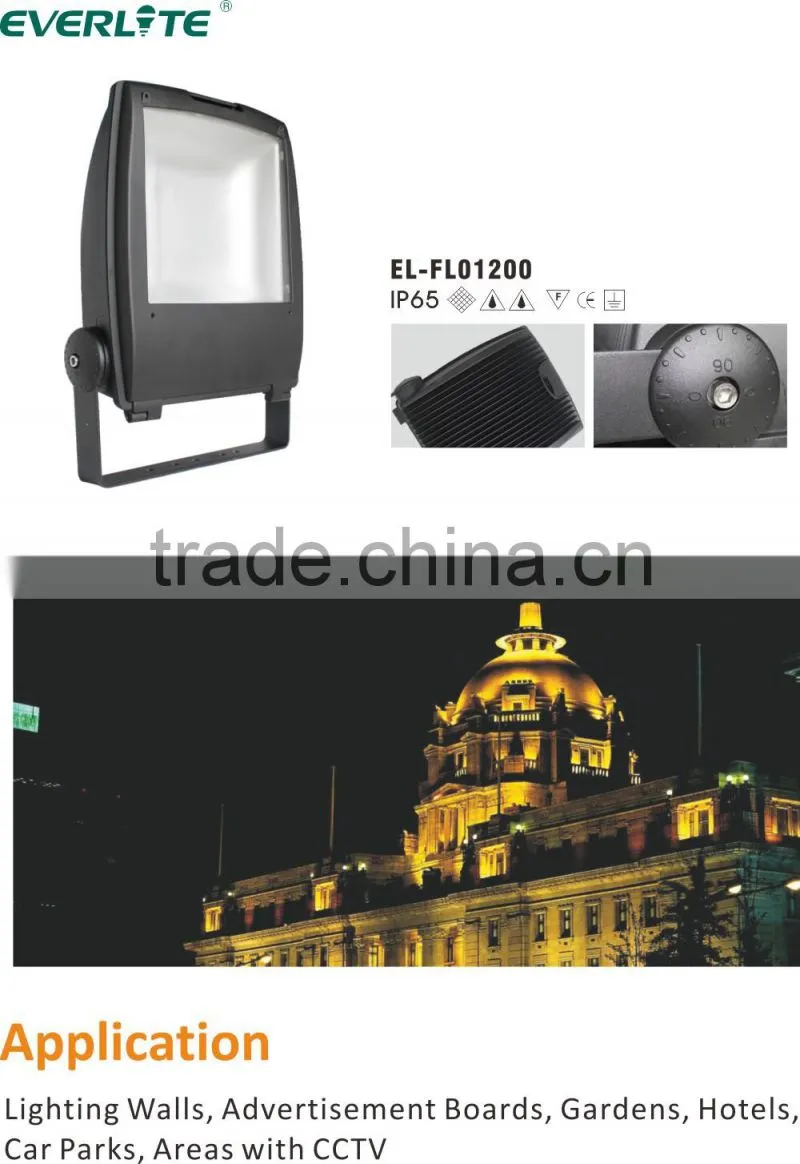

Application

Company Overview

Everlite LED Lighting Co., Limited, a professional manufacturer of poutdoor LED street lighting, floodlighting and high bay lamps, located in Ningbo. It is consist of a completed lighting design teams, tooling and mold development shops, aluminum die-casting parts manufacturing facilities, paint finishing assembly lines, and lighting assembly lines.
We are always keeping pace with the new development of led lighting industrial, which enable us to launch at least 3 new products per month. With the support of lighting designing engineers and lighting software , our service is far beyond than selling led lights, we help customers designing products, making tooling and testing products, planning and designing lighting projects,etc.
Everlite are now selling its LED street lights, floodlighting and housing mainly to North and South America, Southeast Asia, Europe, Russia, China Mainland.
Contact Us now to experience our good products and service. The best 30w led street light for you!
