| Packaging Details: | Packing Type: 1unit(s) /ctn.; Packing Dimension: 800X330X170mm Packing Weight: 7.5kg |
| Packing way: | Standard Export Carton with foam inside suitable for long-distant ocean shipment and tough handling |
| Delivery Detail: | Within 20 Workdays |

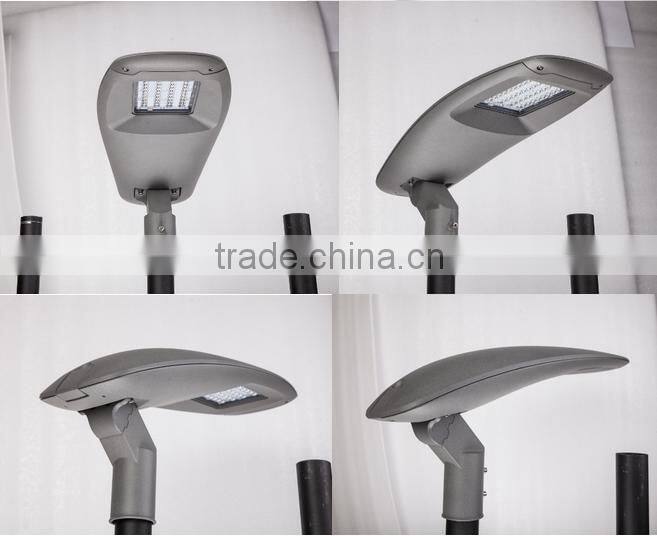

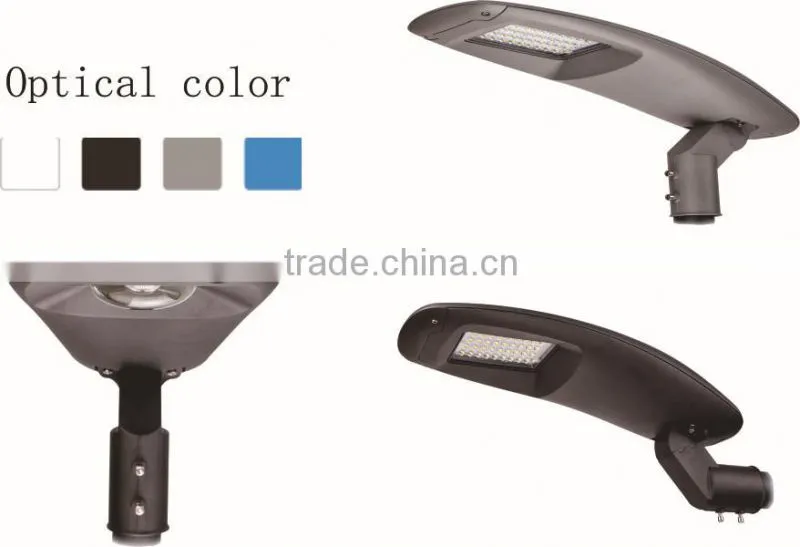

40W Unique Ribbon-free patent design LED Roadway/Street Light 115lm/w
Universal side entry and postop installation ways
Accomadate COB and SMD chips in same mould
Update Meanwell 7 years warranty driver, best choice for goverment project
Overview

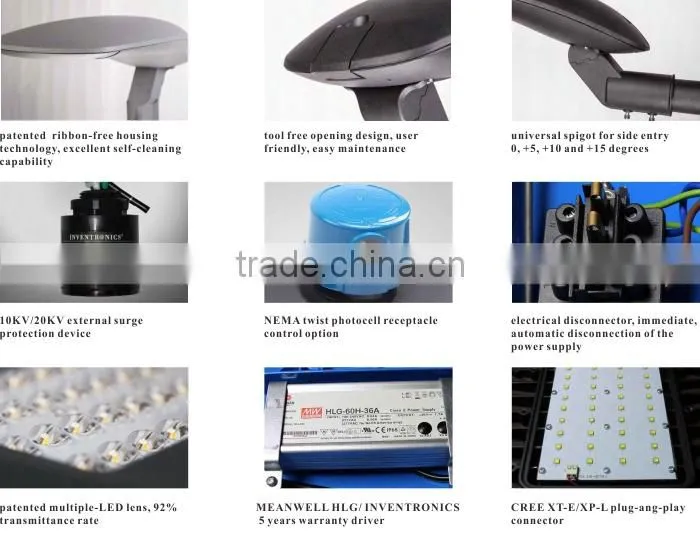

- CREE XT-E/XP-L Plug-and-Play Connector
- CREE/Bridgelux/Citizen/Sharp/Nichia COB chips Available
- MEANWELL and INVENTRONICS Led Driver Available
- Patented E-Lens G2 Angle-eyes optic, 93% Transmittance Rate
- Patented Multiple-LED Lens, 92% Transmittance Rate

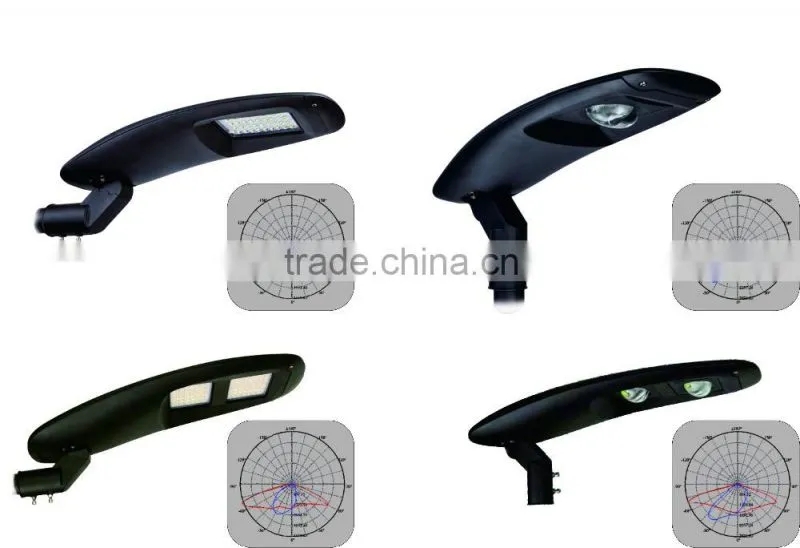

- More than 10 different beam patterns to satisfy any kind of road requirements
- Patented Ribbon-Free Housting Technology

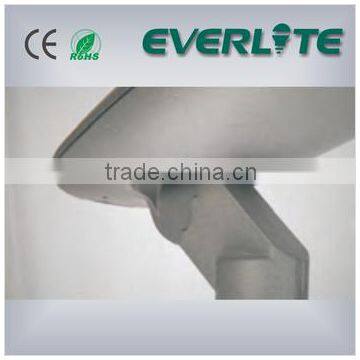

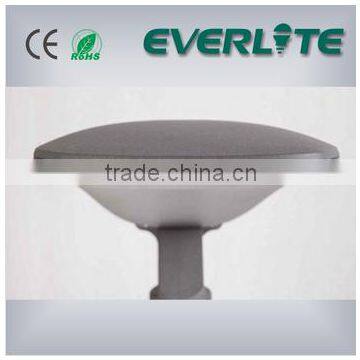

- Universal Spigot for side entry and Post top, 0,+5,+10 and +15 Degrees
- 10kv/20kv External Surge Protection Device
- Electrical Disconnector, Immediate, Automatic Disconnection of the Power Supply
- Nema Twist Photocell Receptacle Control Option
- Tool Free Opening Design, User Friendly, Easy Maintenance
- Solar Streetlights System Available
Product Details
COB Mould and Multiple-led Mould
- COB: 2 size, Power range : 30w-120w
- Multipe: 2 size, Power range: 30w-150w
- ADC 12 Die-casting aluminum body
- Color Temperature: 3000-5700k
- System Luminous efficacy: 113-114lm/w with CREE chips
- CREE chips and MANWELL driver for 5 years warranty
- Built-in Surge Protection: 4kv/6kv
- Life Time: 70000 Hours
- Input Voltage: 90-305V
- Frequency Range: 50~60Hz
- Temprature of Working Condition: -40°~+50°
- Humidity of Working Condition: 10%~90%
- Protection Grade: IP65/IP66(Available)
Specification

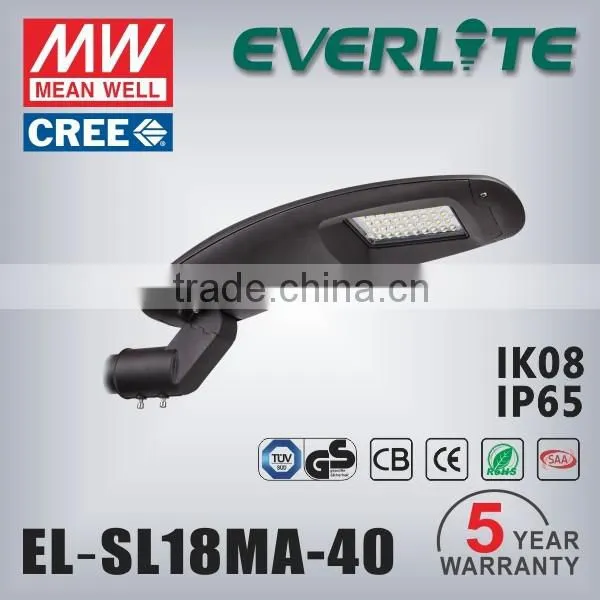

| Model | EL-SL18MA-40 |
| LED Brand | CREE XP-L/XT-E |
| Driver Brand | MEAN WELL/Inventronics |
| Power Consumption | 40W |
| Input Voltage | 90v-305v AC/12-24v DC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Surge Production Class | 3KV/6KV/10KV |
| Lamp Rated Luminous Efficiency | 115lm/w |
| Lamp Rated Lumen output | 4600lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | >70 |
| Color Temperature | 2700-7000k |
| Working Environment | Between -40℃~50℃, 10%~90%RH |
| Total Harmonic Distortion | <15% |
| Life Span | 70000hours |
| Wind Index | Force 12 |
| Body and Shell Materials | Aluminum Alloy |
| IP Rating | IP65 |
| Certification | CE&ROHS |
| Optional Function |
0-10VDC or PWM Signal or Resistance Dimming Timer/Photocell Contral |
| Warranty | 5 years |
| Packing Details | |

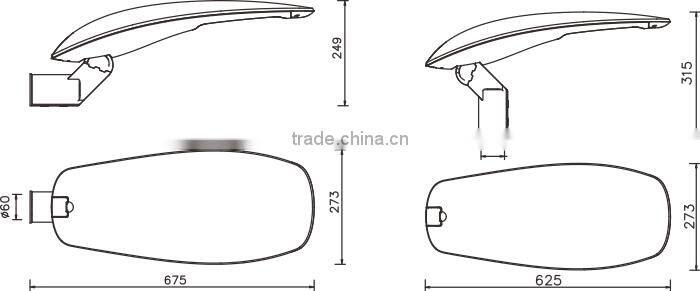

| Fixture Dimension | 675x273x249mm/625x273x315mm |
| Fixture Weight | 6.6kg |
| Packing Dimension | 800x330x170mm |
| Packing Weight | 7.5kg |

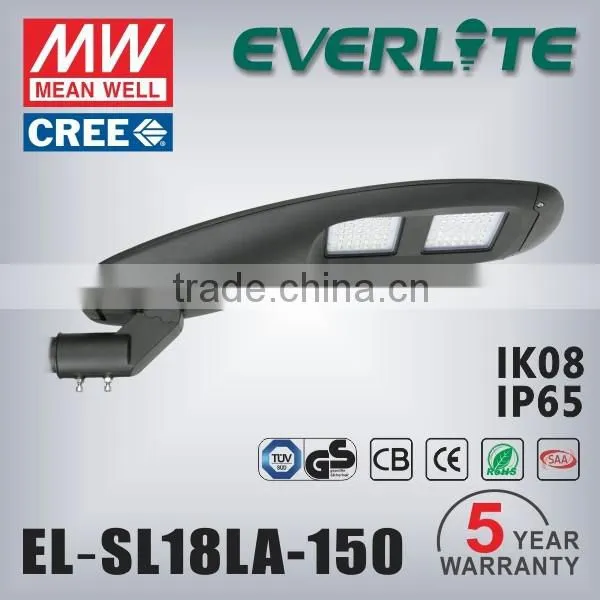

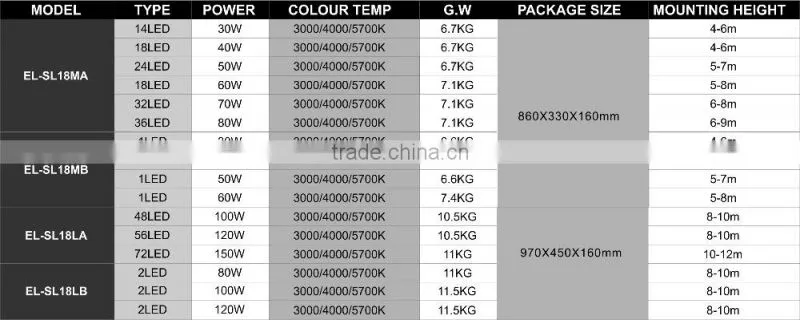

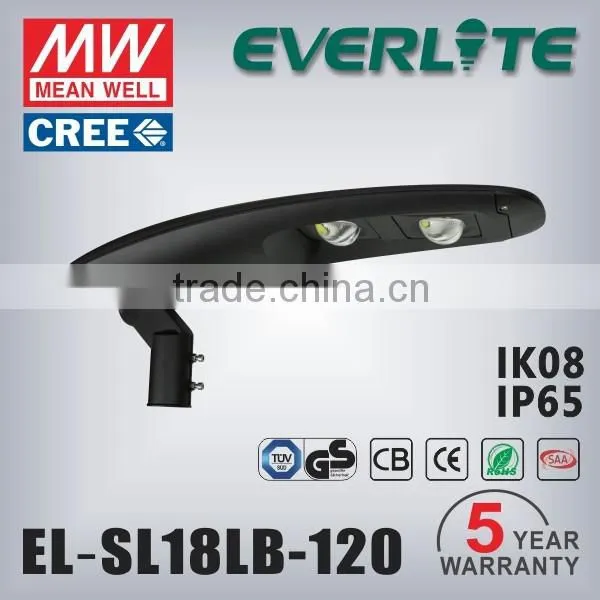

More models of Everlite EL-SL18 series Street Light are avaliable:30-150W

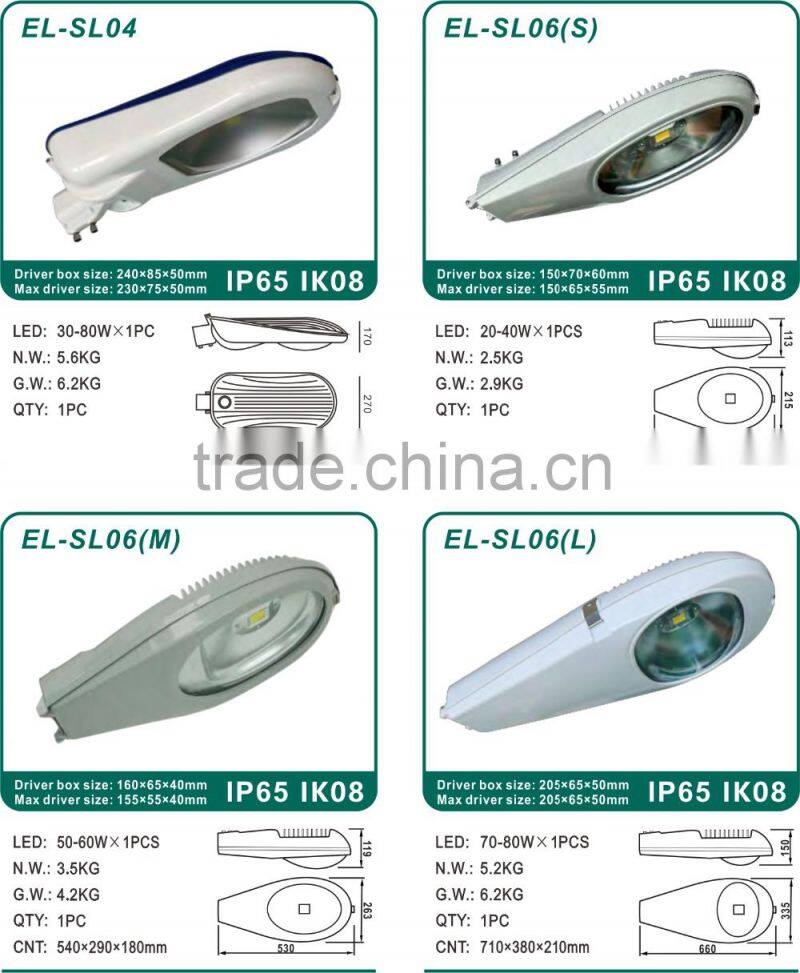

Everlite More SMD Street Light Series
Everlite More COB Street Light Series

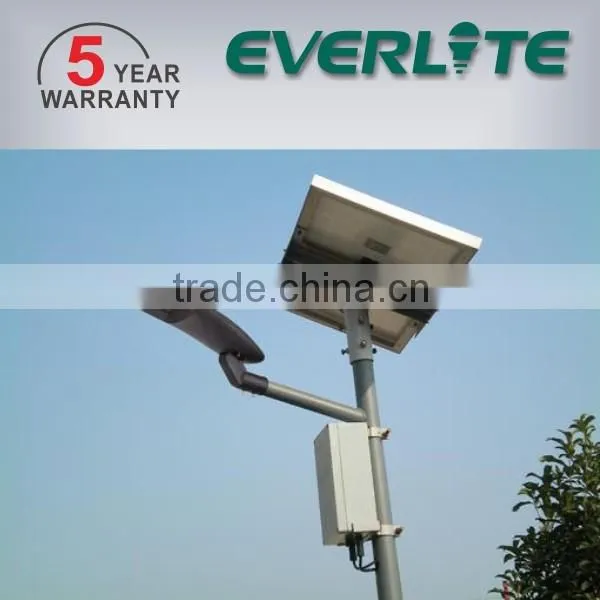

Solar power street lighting system
The system is maily composed by five parts: LED street lights, solar panels, solar controller, strong battery and lamp-pole.
Intelligent Control System
The street light control system adopts PLC technology, through intelligent communication protocol, such as power line carrier and Zigbee to control every lamp, it can be widely used on street lighting system, control on-off, dimming control for specific lamp, check each lamp’s voltage, current, alarm for wire anomaly and failure, collect data and feedback system running status.
Concentrator
It communicates with each lamp through communication protocol to issue command and collect feedback data. Through Internet, WIFI to accept order from control center and feedback the nodes data.
Programmable time control dimmable LED driver
EVERLITELED street lights can be installed with dimmable driver that varies voltage from 0 to 10V DC and can also support intelligent communication protocol. Features including programmable dimming control, factory setting and accurate calibration etc.
eg: 150w LED steet light to replace the 400w HPS Lamp, ennergy-saving rate 68.75%, by dimming function, it is saving another 32%.
Light control LED street light
Through street lamp light controller, detecting the environment illuminance<10flux, after 30 seconds, it automatically turn on, detecting the environment illuminance>30lux, after 30 seconds, it automatically turn off.
Reference Table
We recommend the configuration, according to the lamp power, temperature, sunshine radiation, continuously rainy days an every night working hours.

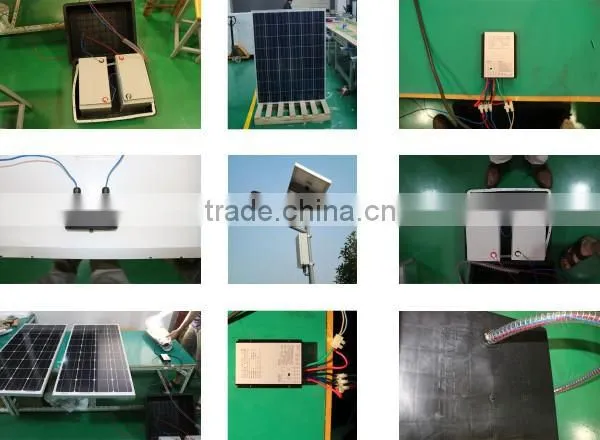

Solar System Installation
1. Reply your inquiry within 24 working hours.
2. Make customized products according to your requirement.
3. Finished goods in time and delivery as soon as possible all around the world.
4. Offer suitable prices based on customers required.
5. Honest and good after sales services.
6. Most professional solutions ever.
7. Non-stop updating products.
Company Overview
- Everlite LED Lighting Co., Limited, a professional manufacturer of outdoor LED street lighting, floodlighting and high bay lamps, located in Ningbo. It is consist of a completed lighting design teams, tooling and mold development shops, aluminum die-casting parts manufacturing facilities, paint finishing assembly lines, and lighting assembly lines.
- We are always keeping pace with the new development of led lighting industrial, which enable us to launch at least 3 new products per month. With the support of lighting designing engineers and lighting software , our service is far beyond than selling led lights, we help customers designing products, making tooling and testing products, planning and designing lighting projects,etc.
- Everlite are now selling its LED street lights, floodlighting and housing mainly to North and South America, Southeast Asia, Europe, Russia, China Mainland.
- Contact Us now to experience our good products and service.
Q1: Are you manufacturer or trading company.
A1: We are mainly manufacturer and also we can do trading, located in Ninghai,Ningbo,Zhejiang.
Q2: Your main export market?
A2: European, Mid-East, South-East Asia, Latin America, Africa, Australia.
Q3: How many years warranty provide?
A3: Standard version 5 years warranty for driver and chips, 10 years warranty for lights head.
Update Meanwell driver for 7 years warranty. Also 2-3 years warranty available.
Q4: Can we get the sample and how?
A4: Yes, we can offer samples. You can email us or buy it directly on our online store on
/store/324332
Q5: Product Guarantee
A5: Fully replacement for all the problem products.
1-2% spare parts for Container orders for online-selling customers.
Q6: MOQ
A6: We can be exporter, wholesaler, or even retailer to you, there is no MOQ, but depend on the items.
Q7: Payment terms
A7: T/T 30%+70% preferred, but also L/C, Wester Union, Paypal, Escrow, accepted.
Q8: Delivery method
A8: By sea preferred, also by air, courrier, available too.
Q9: Who are our main customers
A9: Online-shopping sellers, Supermarket, Wholesaler, Retailer, Importing company.
Q10: What products certificates do we have
A10: GS CE RoHS for general Europe market; ETL & CETL for USA and Canada; BS for UK;
And PSE for Japan; CB for Israel
