Help CenterHigh Performance IP66 TUV-GS CE RoHS 30W 3000-7000K Led Street Light IP66 For Sale
Related Products
-
Unique Pantent Ribbon-free Design Aluminum Alloy Body 30W LED Solar Street Light 115lm/wUS$ 85 - 110MOQ: 1 Piece -
Unique Patent Ribbon-free 120W LED Solar Street Light With Excellent Performance 115lm/wUS$ 200 - 250MOQ: 1 Piece
-
30W-80W Everlite Hot Selling COB LED Die Cast Street Light HousingUS$ 36 - 46MOQ: 1 Piece
-
Everlite Best Selling Good Price 160W-240W COB LED Street Light HousingUS$ 100 - 110MOQ: 1 Piece
-
80W-120W Everlite High Power COB LED Roadway/Street Light HousingUS$ 67 - 85MOQ: 1 Piece
Top Quality Unique Pattent Ribbon-Free Modern Design 30w Led street light
Universal side entry and postop installation ways
Accomadate COB and SMD chips in same mould
Update Meanwell 7 years warranty driver, best choice for goverment project
Overview

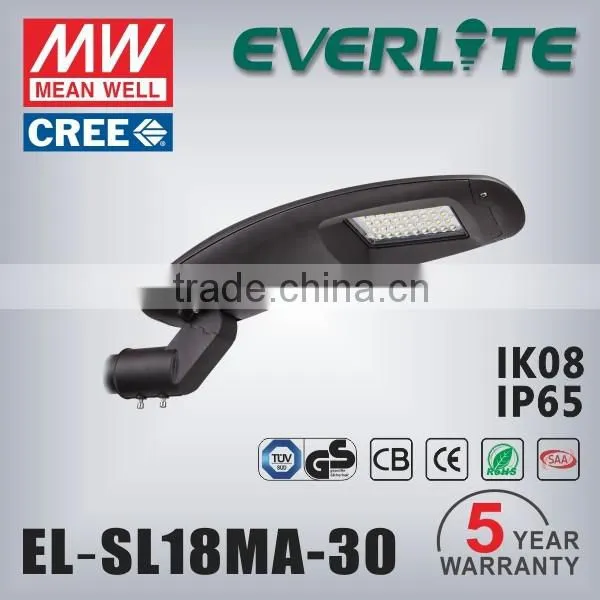

The elegant SL18MA series LED street lights are equipped with high efficiency and power factor led power supply. The LED emitter brand can be varied according to requirement.
- CREE XT-E/XP-L Plug-and-Play Connector
- CREE/Bridgelux/Citizen/Sharp/Nichia COB chips Available
- MEANWELL and INVENTRONICS Led Driver Available
- Patented E-Lens G2 Angle-eyes optic, 93% Transmittance Rate
- Patented Multiple-LED Lens, 92% Transmittance Rate
- More than 10 different beam patterns to satisfy any kind of road requirements
- Patented Ribbon-Free Housting Technology
- Universal Spigot for side entry and Post top, 0,+5,+10 and +15 Degrees
- 10kv/20kv External Surge Protection Device
- Electrical Disconnector, Immediate, Automatic Disconnection of the Power Supply
- Nema Twist Photocell Receptacle Control Option
- Tool Free Opening Design, User Friendly, Easy Maintenance
- Solar Streetlights System Available

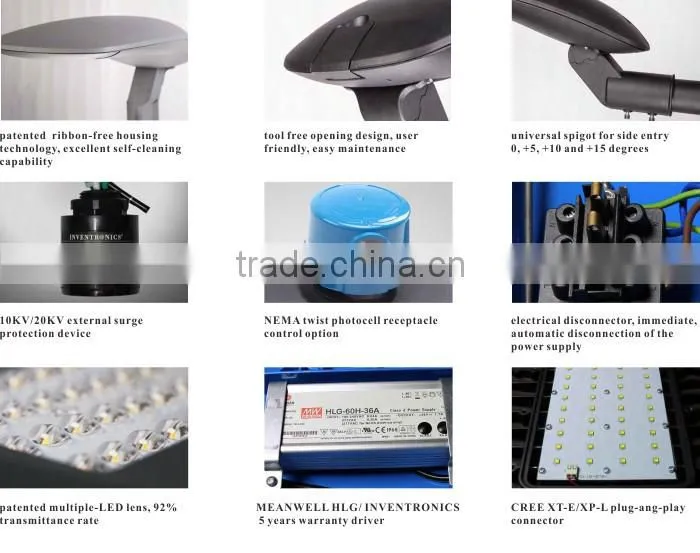

Detailed Features
COB Mould and Multiple-led Mould
- COB: 2 size, Power range : 30w-120w
- Multipe: 2 size, Power range: 30w-150w
- ADC 12 Die-casting aluminum body
- Color Temperature: 3000-5700k
- System Luminous efficacy: 113-114lm/w with CREE chips
- CREE chips and MANWELL driver for 5 years warranty
- Built-in Surge Protection: 4kv/6kv
- Life Time: 70000 Hours
- Input Voltage: 90-305V
- Frequency Range: 50~60Hz
- Temprature of Working Condition: -40°~+50°
- Humidity of Working Condition: 10%~90%
- Protection Grade: IP65/IP66(Available)

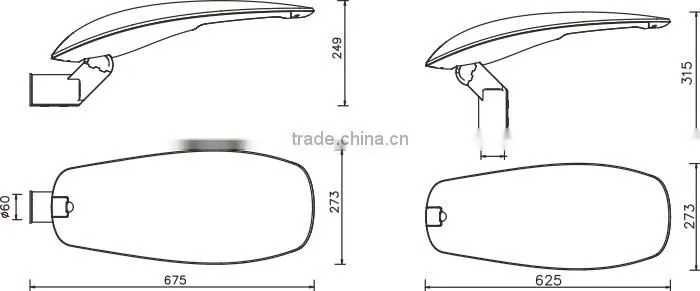

Dimension
Specification
| Model | EL-SL18MA-30 |
| LED Brand | CREE XP-L/XT-E |
| Driver Brand | MEAN WELL/Inventronics |
| Power Consumption | 30W |
| Input Voltage | 90v-305v AC/12-24v DC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Surge Production Class | 3KV/6KV/10KV |
| Lamp Rated Luminous Efficiency | 115lm/w |
| Lamp Rated Lumen output | 3450lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | >70 |
| Color Temperature | 2700-7000k |
| Working Environment | Between -40℃~50℃, 10%~90%RH |
| Total Harmonic Distortion | <15% |
| Life Span | 50000hours |
| Wind Index | Force 12 |
| Body and Shell Materials | Aluminum Alloy |
| IP Rating | IP65 |
| Certification | CE&ROHS |
| Optional Function |
0-10VDC or PWM Signal or Resistance Dimming Timer/Photocell Contral |
| Warranty | 5 years |
| Packing Details | |
| Fixture Dimension | 675x273x249mm/625x273x315mm |
| Fixture Weight | 6.6kg |
| Packing Dimension | 800x330x170mm |
| Packing Weight | 7.5kg |
| Packaging Details: |
Packing Type: 1unit(s) /ctn Packing Dimension: 800X330X170mm Packing Weight: 7.5kg /16.55lbs |
| Packing way: | Standard Export Carton with foam inside suitable for long-distant ocean shipment and tough handling |
| Delivery Detail: | Within 20 Workdays |
More models of Everlite EL-SL18A series Street Light are avaliable:30-150W
Solar power street lighting system
The system is maily composed by five parts: LED street lights, solar panels, solar controller, strong battery and lamp-pole.
Intelligent Control System
The street light control system adopts PLC technology, through intelligent communication protocol, such as power line carrier and Zigbee to control every lamp, it can be widely used on street lighting system, control on-off, dimming control for specific lamp, check each lamp’s voltage, current, alarm for wire anomaly and failure, collect data and feedback system running status.
Concentrator
It communicates with each lamp through communication protocol to issue command and collect feedback data. Through Internet, WIFI to accept order from control center and feedback the nodes data.

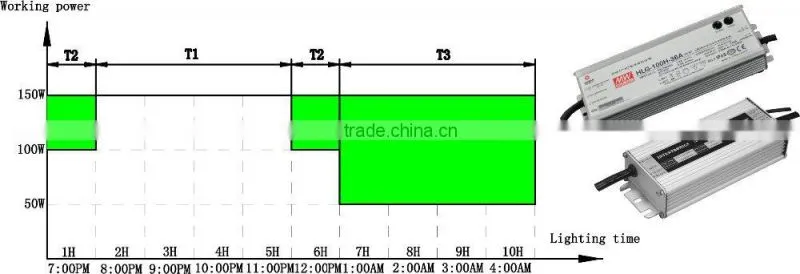

Programmable time control dimmable LED driver
EVERLITELED street lights can be installed with dimmable driver that varies voltage from 0 to 10V DC and can also support intelligent communication protocol. Features including programmable dimming control, factory setting and accurate calibration etc.
eg: 150w LED steet light to replace the 400w HPS Lamp, ennergy-saving rate 68.75%, by dimming function, it is saving another 32%.
Light control LED street light
Through street lamp light controller, detecting the environment illuminance<10flux, after 30 seconds, it automatically turn on, detecting the environment illuminance>30lux, after 30 seconds, it automatically turn off.

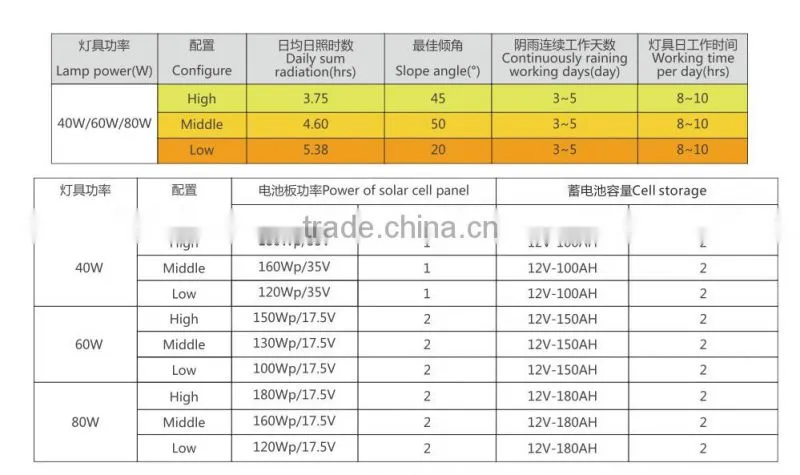

Reference Table
We recommend the following configuration, according to the lamp power, temperature, sunshine radiation, continuously rainy days an every night working hours.
Our advantages:
We really do R&D with the most talented engineers of LED industry.
We have completed equipments to produce the outdoor lights.
We can supply highest quality LED street lights with best possible price Ratio.
We support our clients with our unique product and non-stop innovation.
Production Process
Application
Company Overview
- Everlite LED Lighting Co., Limited, a professional manufacturer of outdoor LED street lighting, floodlighting and high bay lamps, located in Ningbo. It is consist of a completed lighting design teams, tooling and mold development shops, aluminum die-casting parts manufacturing facilities, paint finishing assembly lines, and lighting assembly lines.
- We are always keeping pace with the new development of led lighting industrial, which enable us to launch at least 3 new products per month. With the support of lighting designing engineers and lighting software , our service is far beyond than selling led lights, we help customers designing products, making tooling and testing products, planning and designing lighting projects,etc.
- Everlite are now selling its LED street lights, floodlighting and housing mainly to North and South America, Southeast Asia, Europe, Russia, China Mainland.
- Contact Us now to experience our good products and service.
-
Q: Are you a factory?
A: Yes,we manufacture LED street lights about 10 years.
- Q: Can we do our brand? Can you print or emboss our logo on the tank? And our own brand box?
A: Yes, we can. - Q: If there are some lights that can not work when i receive the goods?
A: Don't worry, we will give you same quantity of good lights for compensation in your next order. - Q: How does your factory do regarding quality control?
A: Quality is priority. Everlite people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE,ROHS,TUV authentication. - Q: Where is your factory located? How can I visit there?
A: Our factory is located in Ningbo, China. Please contact me if you have the plan to visit our factory in advance. - Q: Can I get some samples?
A: Yes,we can offer you the sample according to your requirement in 15-20 working days. -
Q: How many employees in your company?
A: We have about 100-120 employees, including office staff, R&D engineer, product line workers.
