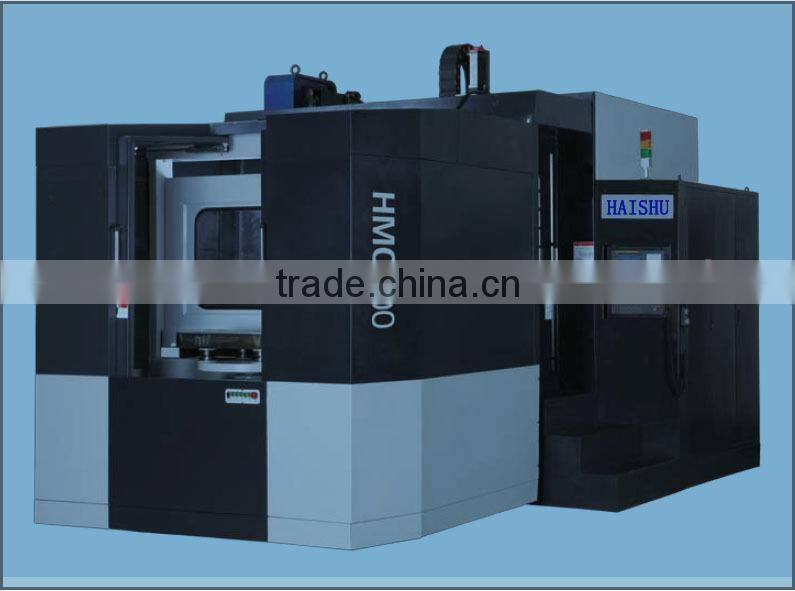

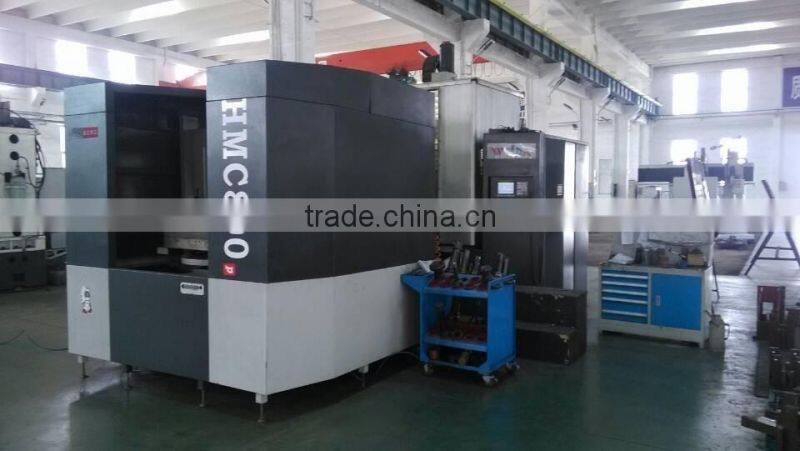

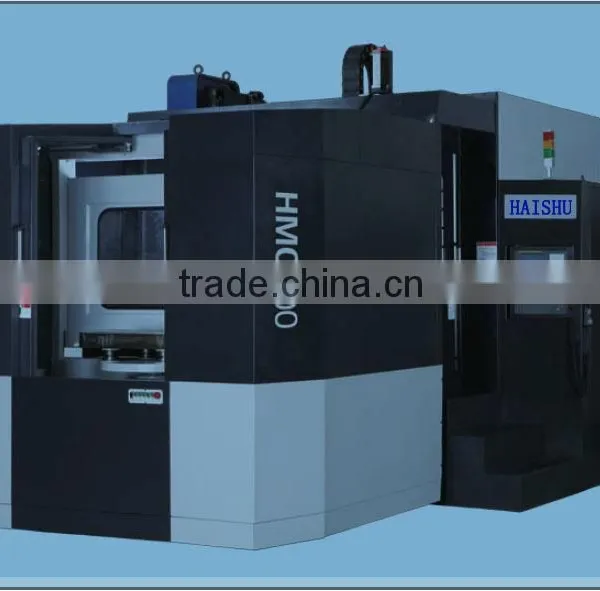

Hobby Cnc Metal Machines HMC800 Cnc Machining Center and 5-axis Machining Center With Good Price

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
Place of Origin	Shandong, China	Brand Name	Haishu
Model Number	HMC800	Voltage	380v 3 phase
Power(W)	22/26kw	Dimension(LWH)	1150mm900mm900mm
Weight	20000kg	Certification	ISO9001:2008 DE
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Item	Unit	HMC800
Table travel(X,Y,Z)	mm	1150×900×900
Table size	mm	800×800
Max.load of worktable	kg	2000
Worktable indexing		1°×360°
Worktable positioning accuracy		±2”
Worktable re-positioning accuracy		±1.5”
Rapid feed speed	m/min	24
Spindle speed	r/min	35~4500
Spindle torque	N.m	1350
Tool shank type		BT50
Spindle ftont bearing diameter	mm	100
Spindle motor power	kw	22/26
Tool magazine capability	qty	40( Chain )
Tool weight	kg	25
(X,Y,Z) Positioning accuracy(X,Y,Z)	mm	±0.0025 JIS
(X,Y,Z) Repeat positioning accuracy(X,Y,Z)	mm	±0.0015 JIS
Machine weight	kg	20000

Main configuratiom

Standard

1,FANUC 0i MD (FANUC 0i MD CNC system)

2,(Chain-type tool magazine capability 40 tools)

3,(Automatic chip conveyor)

Optional

SIEMENS 828D CNC system

GUARANTEE AND AFTER-SALE SERVICES:

1.one year guarantee for whole machine except of CNC system, which guarantee is three years

2.24-hours technical support by E-mail or telephone

3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD

4.Provide extra accessories for the machine

5.Also provide service of make program according to your drawings

6.Customized or special design is OK.
