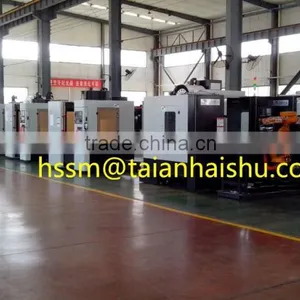

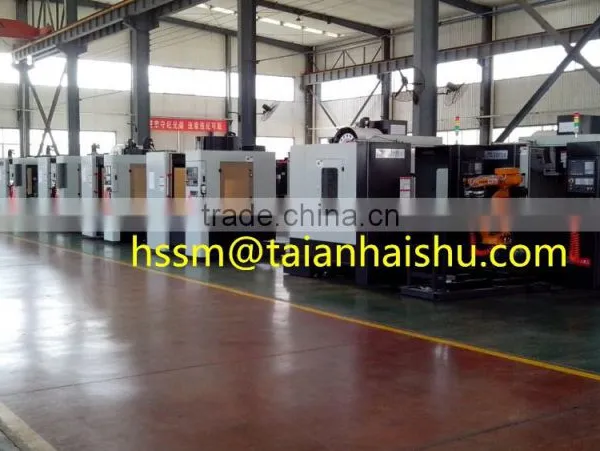

China Vertical CNC machining center XH7132 cnc engraving machine
1.CNC system:GSK25i servo system.
2.Spindle:taiwan high speed,precision spindle unit.
3.Tool magazine:taiwan armless library.
4.Ball screw:taiwan precision ball screw.
5.Protection:stainless steel internal protection and full outer protective
.
Optional:
1.CNC system: FANUC 0i mate-MD,Siemens 828D or HNC-22M,KND-2000M
2.Disc-type tool magazine capability 16 tools
3.CNC fourth axis
4.Automatic chip removal system
Specifications: Specifications
Items Unit XH7132 VMC800 VMC850
Table trave(X,Y,Z) mm 620x350x500 800x460x500 850x500x500
Table size mm 920x320 800x460 1000x500
Number/Width/Distance lf T-slot mm 3-14-85 3-18-150 5-18-100
Max.load lf table kg 400 500 500
Distance form opindle nose to table surface mm 100~600 250~650 150~650
Distance form opindle axis to column guideway mm 395 560 560
Rapid feed speed mm/min 18/18/18 30/30/24 30/30/24
Feed speed mm/min 2.5~3000 2~10000 10~10000
Taper of spindle BT40 BT40 BT40
Spindle speed range rrpm 60~6000 40~6000 40~6000
Spindle motor power(servo) kw 3.7 7.5 7.5
Tool magazin capability qty 16 16 16
Max.weight of tool kg 8 8 8
Max.dimension of tool mm 120x200 130x300 130x300
Positioning accutacy mm ±0.015 ±0.015 ±0.015
Repeat positioning zccuracy mm 0.0075 0.0075 0.0075
Min.time of toll change sec 3 3 2.5
Overall dimension mm 2020x1970x2160 2450x2200x2300 2500x2600x2300
Machine weight kg 2750 4650 4750
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
