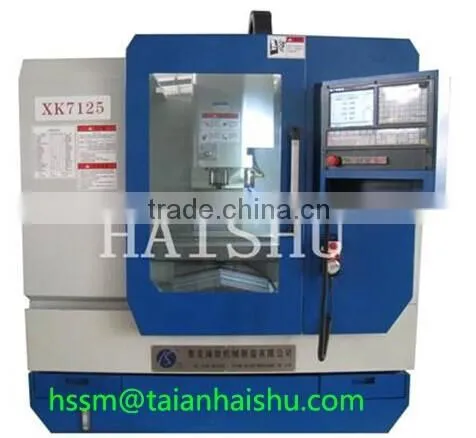

4 axis XK7125 cnc milling machine with speed spindle

FOB Price

USD $17,500 - $18,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
CNC or Not	CNC	Automatic Grade	Automatic
Place of Origin	Shandong, China	Brand Name	HAISHU
Model Number	XK7125	Voltage	380V
Power(W)	3700	Dimension(LWH)	1650X1600X2000
Weight	1530KW	Certification	ISO9001:2008, CE
After-sales Service Provided	Engineers available to service machinery overseas

4 axis XK7125 cnc milling machine with speed spindle

Specifications

Item	Unit	Xk7125
Table travel(X,Y,Z)	mm	400×250×400
Table size	mm	600×250
Number/Width/Distance of T-slot	mm	3-14-75
Distance from spindle nose to table surface	mm	60~460
Distance from spindle axis to column guideway	mm	325
Taper of spindle		BT30
Spindle speed range	r/min	60~6000
Spindle motor power	kw	3.7 (AC servo)3.7
Rapid traverse speed(X,Y,Z)	m/min	6
Cutting feed speed(X,Y,Z)	mm/min	2.5~3000

Max.dimension of tool	mm	φ92
Max.weight of tool	kg	5
Positioning accuracy	mm	±0.015
Repeat positioning accuracy	mm	±0.075
L×W×H	mm	1650×1600×2000
Net weight	kg	1530

Main configuration

Standard:

1,CNC system: SIEMENS 808D.

2,Spindle: Taiwan high speed(6000rpm),precision spindle unit.

3,Ball screw: Taiwan's precision ball screw.

5,protection: full outer stainless steel inner defense and protection.

Optional:

KND-1000Ⅱ,Siemens 828D.

CNC fourth axis.

GUARANTEE AND AFTER-SALE SERVICES:

1.one year guarantee for whole machine except of CNC system, which guarantee is three years

2.24-hours technical support by E-mail or telephone

3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD

4.Provide extra accessories for the machine

5.Also provide service of make program according to your drawings

6.Customized or special design is OK.

If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
