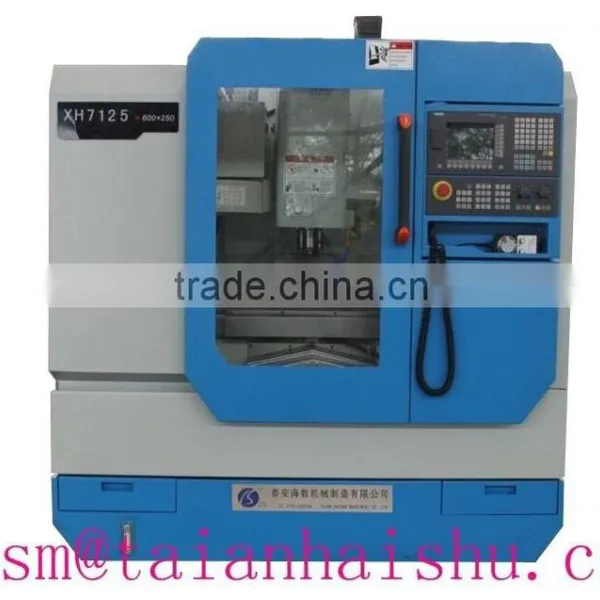

5-axis machining center XH7125 vertical cnc machining center from gold supplier
Specifications
Item |
Unit |
XH7125 |
Table travel(X,Y,Z) |
mm |
400*250*400 |
Table size |
mm |
600*250 |
Number/Width/Distance of T-slot |
mm |
3-14-75 |
Distance from spindle nose to table surface |
mm |
60~460 |
Distance from spindle axis to column guideway |
mm |
325 |
Taper of spindle |
BT30 |
|
Spindle speed range |
r/min |
60~6000 |
Spindle motor power |
kw |
AC servo 3.7 |
Rapid traverse speed(X,Y,Z) |
m/min |
6 |
Cutting feed speed(X,Y,Z) |
mm/min |
2.5~3000 |
Tool magazine capability |
qty |
10 |
Max.dimension of tool |
mm |
92 |
Max.weight of tool |
kg |
5 |
Positioning accuracy |
mm |
0.015 |
Repeat positioning accuracy |
mm |
0.075 |
L*W*H |
mm |
1650*1600*2000 |
Net weight |
kg |
1530 |
Main configuration
Standard:
1.CNC system: SIEMENS 808D.
2.Spindle: Taiwan high speed(6000rpm),precision spindle unit.
3.Tool magazine: Taiwan famous brand turret-type tool magazine 10 tools.
4.Ball screw: Taiwan's precision ball screw.
5.protection: full outer stainless steel inner defense and protection.
Optional:
1.KND-1000Ⅱ,Siemens 828D.
2.CNC fourth axis.
3.Automatic chip removal system.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
