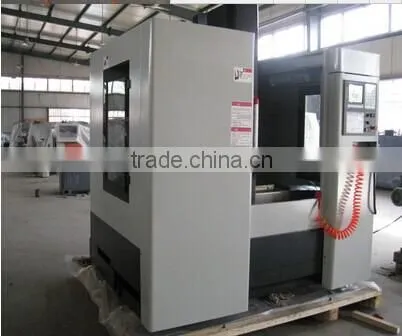

Help CenterVertical CNC Machining Center XH7132 With the Factory Manufacturing Price
Related Products
-
Five Axis CNC Tool Grinder VIK-5B With the Factory Manufacturing Price From Gold Supllier Taian HaishuUS$ 170,000 - 180,000MOQ: 1 Set -
Five Axis VIK-5B Multi Function Universal CNC Tool Grinder With the Factory Manufacturing Price From Gold Supllier Taian HaishuUS$ 170,000 - 180,000MOQ: 1 Set
-
Five Axis CNC Tool Grinder VIK-5B Cnc Tool and Cutter Grinder From Gold Supllier Taian HaishuUS$ 170,000 - 180,000MOQ: 1 Set
-
China Vertical CNC Machining Center XH7132 With High Quality and Low PriceNegotiableMOQ: 1 Set
-
HMC800 Horizontal Machining Center High Speed Machining Center With High Quality and Low PriceNegotiableMOQ: 1 Set
1.CNC system:GSK25i servo system.
2.Spindle:taiwan high speed,precision spindle unit.
3.Tool magazine:taiwan armless library.
4.Ball screw:taiwan precision ball screw.
5.Protection:stainless steel internal protection and full outer protective
.
Optional:
1.CNC system: FANUC 0i mate-MD,Siemens 828D or HNC-22M,KND-2000M
2.Disc-type tool magazine capability 16 tools
3.CNC fourth axis
4.Automatic chip removal system
Specifications: Specifications
Items Unit XH7132 VMC800 VMC850
Table trave(X,Y,Z) mm 620x350x500 800x460x500 850x500x500
Table size mm 920x320 800x460 1000x500
Number/Width/Distance lf T-slot mm 3-14-85 3-18-150 5-18-100
Max.load lf table kg 400 500 500
Distance form opindle nose to table surface mm 100~600 250~650 150~650
Distance form opindle axis to column guideway mm 395 560 560
Rapid feed speed mm/min 18/18/18 30/30/24 30/30/24
Feed speed mm/min 2.5~3000 2~10000 10~10000
Taper of spindle BT40 BT40 BT40
Spindle speed range rrpm 60~6000 40~6000 40~6000
Spindle motor power(servo) kw 3.7 7.5 7.5
Tool magazin capability qty 16 16 16
Max.weight of tool kg 8 8 8
Max.dimension of tool mm 120x200 130x300 130x300
Positioning accutacy mm ±0.015 ±0.015 ±0.015
Repeat positioning zccuracy mm 0.0075 0.0075 0.0075
Min.time of toll change sec 3 3 2.5
Overall dimension mm 2020x1970x2160 2450x2200x2300 2500x2600x2300
Machine weight kg 2750 4650 4750
