Five-axis CNC Tool Grinding Machine,CNC Tool Grinding Machine,Tool Grinding Machine

Five-axis CNC Tool Grinding Machine,CNC Tool Grinding Machine,Tool Grinding Machine thumbnail-1
Five-axis CNC Tool Grinding Machine,CNC Tool Grinding Machine,Tool Grinding Machine thumbnail-2
Five-axis CNC Tool Grinding Machine,CNC Tool Grinding Machine,Tool Grinding Machine thumbnail-3
Five-axis CNC Tool Grinding Machine,CNC Tool Grinding Machine,Tool Grinding Machine photo-1
Five-axis CNC Tool Grinding Machine,CNC Tool Grinding Machine,Tool Grinding Machine photo-2
Five-axis CNC Tool Grinding Machine,CNC Tool Grinding Machine,Tool Grinding Machine photo-3
US$ 10,000 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
CNC Machining or Not:
CNC Machining
Type:
Drilling, Etching / Chemical Machining, Milling, Rapid Prototyping, Wire EDM
Material Capabilities:
Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, Other
Contact Supplier Request Quote Chat Now
Taian Haishu Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
CNC Machining or Not CNC Machining
Type Drilling, Etching / Chemical Machining, Milling, Rapid Prototyping, Wire EDM
Material Capabilities Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, Other
Micro Machining or Not Not Micro Machining
Place of Origin Shandong, China
Model Number VIK-5C
Brand Name HAISHU

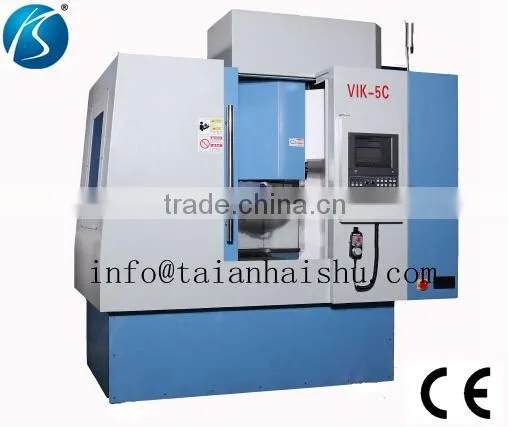

Five-axis CNC tool grinding machine,CNC tool grinding machine,Tool grinding machine

CNC TOOL GRINDER

Five-axis CNC tool grinding machine,CNC tool grinding machine,Tool grinding machineFive-axis CNC tool grinding machine,CNC tool grinding machine,Tool grinding machineFive-axis CNC tool grinding machine,CNC tool grinding machine,Tool grinding machineFive-axis CNC tool grinding machine,CNC tool grinding machine,Tool grinding machine







VIK-5C Specifications



Xaxis travel (Left;Right): 320 mm



Yaxis travel (Front;Back): 260 mm



Zaxis travel(Up;Down): 220 mm



A axis travel:   360°



C axis travel:   230°



A axis Collet range: Φ0.3~Φ20 mm



A axis Swing diameter: Φ320 mm



A axis Min scale unit: 0.00001°



A axis Max.speed: 30 rpm



Spindle Taper: 31.75/20 grinding wheel shaft



Spindle speed: 7000 rpm



Spindle Transmission form: Electric Spindle



Three-axis rapid traverse: 15/15/15m/min



Mini,input unit: 0.001 mm



Spindle power: 7.5/12.5 KW



Spindle driving system: Frequency electric spindle



Feeding and driving system: (AC Servo)



Lubrication System: 2 L



Air pressure: 0.6 mPa



Power Capacity: 25 KVA



Dimensions: 2.2X1.4X2.4m2



Overall weight: 6000Kg
