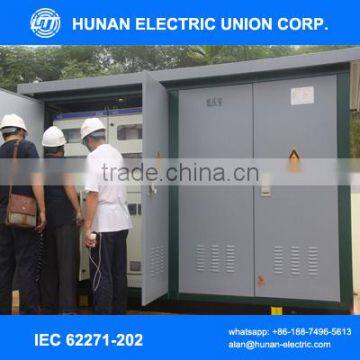

Compact Substation/containerized Substation

Service condition

Normal Condition

Ambient temperature

Indoor

-5°C to +40°C

Outdoor

-10°C to +40°C

Humidity

90%

Altitude

≤1000m

Pollution

Level I-Light

Level II-Medium

Earthquake

UBC Zone 3

Special Condition

Ambient temperature

Indoor

-15°C to +40°C, -25°C to +40°C

Outdoor

-10°C to +50°C, -25°C to +40°C

-40°C to +40°C

Humidity

95%, 98%

Altitude

≤2000m, ≤3000m, ≤4000m

Pollution

Level III-Heavy

Level IV-Very Heavy

Earthquake

UBC Zone 4

K-factor

3, 5, 7, 9, 11, 13, 15, 17

Standard code

IEC 62271-202   High-voltage/ low-voltage prefabricated substation

Ratings

IEC

Rated Frequency

50Hz, 60Hz

Rated Voltage

3.6 kV – 7.2 kV – 12 kV – 17.5 kV – 24 kV – 36 kV

Rated Insulation Level

20kV – 40kV – 60kV – 75kV – 95kV – 125kV – 145kV – 170kV

Rated KVA

30kVA – 50kVA – 80kVA – 100kVA – 125kVA – 160kVA – 200kVA – 250kVA – 315kVA – 400kVA – 500kVA – 630kVA – 800kVA – 1000kVA – 1250kVA – 1600kVA – 2000kVA – 2500kVA – 3150kVA
