We are mainly specialized in high pressure layflat hose . Its ruggedness and high tensile strength make it suitable for use in mining,irrigation,construction and dewatering applications where high pressure pumps are used.Suitable for high-lift drainage of water mixed with gravel or mud.

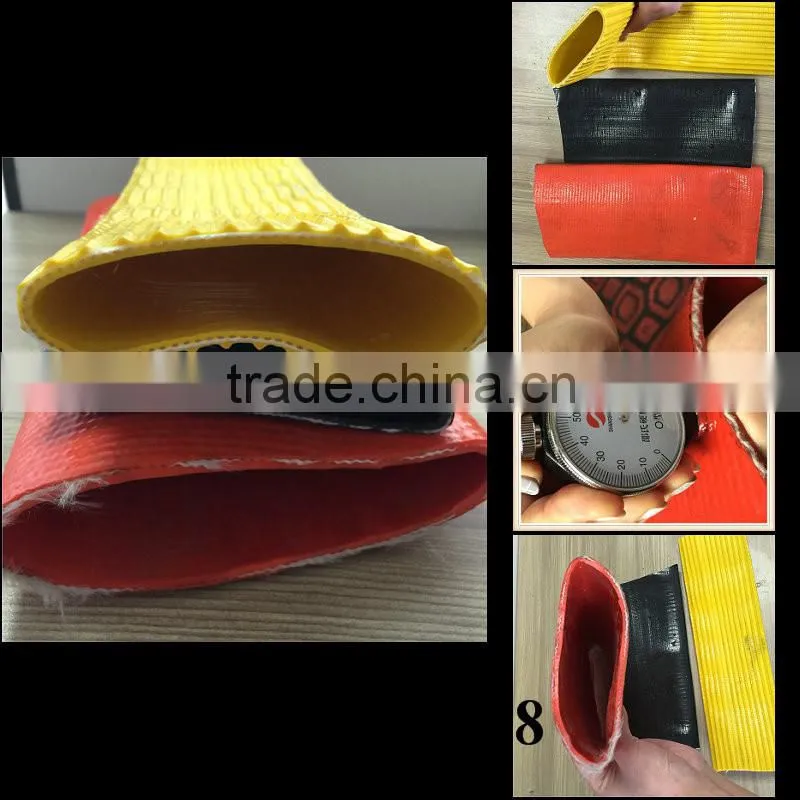

Flexible TPU Layflat Hose for Agricultural Irrigation with Superior Abrasion Resistant pvc layflat hose
Features:
1. Strong and durable, ageing proof; Never be out of layer; Resistance to chemicals and weather; Easy to store, handle and take.
2.Light weight, good flexibility, bright color, smooth laye.
3.Roll flat and easy for take back, convenient for moving and none limiting for length.
4.Anti-high pressure, corrosion resistance and ageing resistance.
5.Applied to the lines of the auxiliaries for agricultural tools against the drought, project, mining, environment protection, industry and so on.

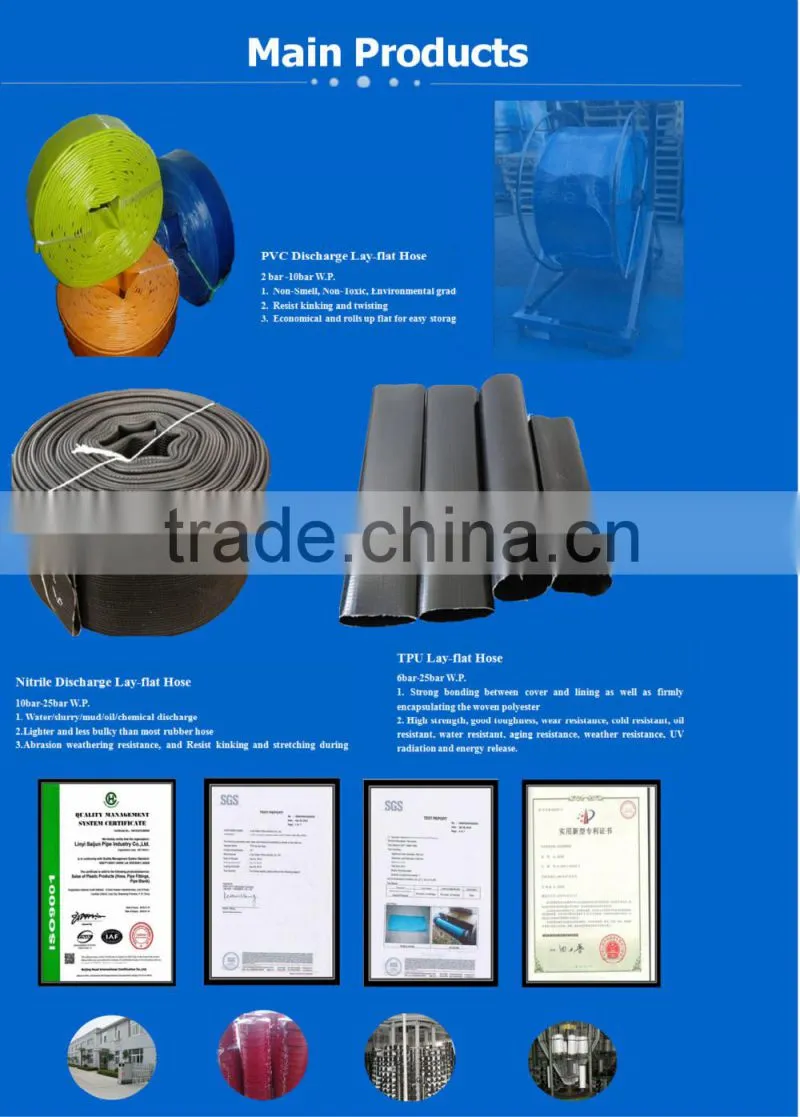

Main Products:
1.PVC layflat hose:
PVC Lay Flat Hose is a PVC discharge lay-flat hose that resists kniking and twisting.This hose is designed as a standard duty hose for water discharge in industrial and construction applications, and is economical and rolls up flat for easy storage.
Features:
2bar -10bar W.P.
1. Non-Smell, Non-Toxic, Environmental grade.
2. Resist kinking and twisting
3. Economical and rolls up flat for easy storage
2.PVC-Nitrile rubber layflat hose:
PVC-Nitrile Rubber Layflat hose is a ribbe nitrile oil resistant discharge lay-flat hose.It is lighter and less bulky than most rubber discharge hoses.Resists abrasion and weathering. Used in many varied applications, with limited oil and chemical use.Resists kniking and stretching while in service.
Features:
10bar-25bar W.P.
1.Water/slurry/mud/oil/chemical discharge
2.Lighter and less bulky than most rubber hose
3.Abrasion weathering resistance, and Resist kinking and stretching during service
SPECIFICATIONS:
| inner diameter | wall thickness mm | ||||||||
| mm | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
| 25.4 | 1 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
| 38.1 | 1 1/2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
| 50.8 | 2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 3 |
| 63.5 | 2 1/2 | 1.4 | 1.7 | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3.2 |
| 76.2 | 3 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
| 101.6 | 4 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
| 127 | 5 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | |
| 152.4 | 6 | 1.6 | 2 | 2.2 | 2.5 | 2.8 | 3 | 3.2 | |
| 203.2 | 8 | 1.8 | 2.3 | 2.5 | 2.8 | 3 | 3.2 | ||
| 254 | 10 | 2 | 2.3 | 2.8 | 3 | 3.2 | |||
| 304.8 | 12 | 2.4 | 2.8 | 3 | 3.2 | 3.4 | |||

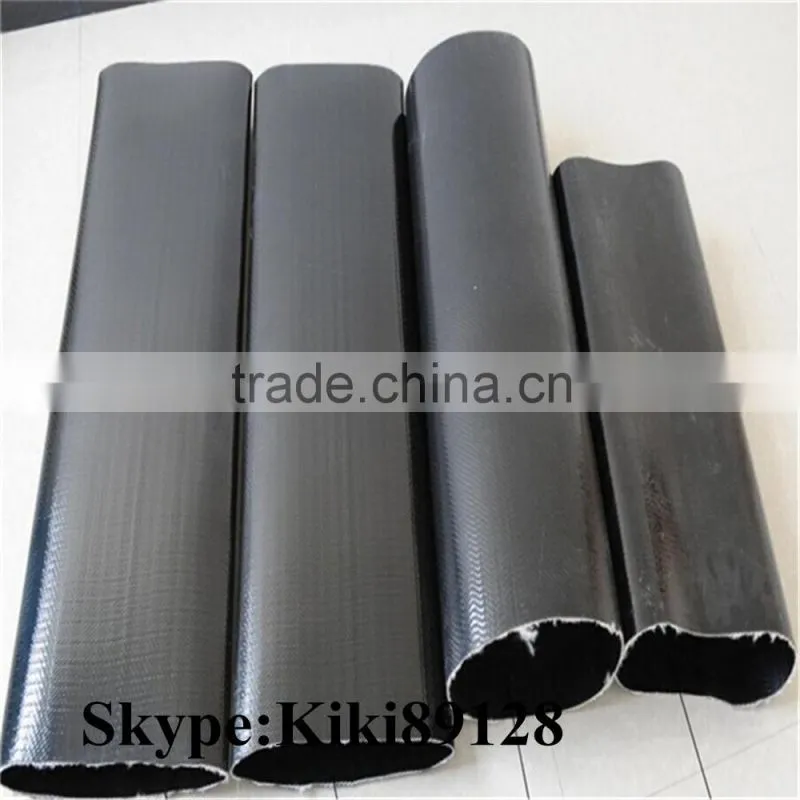

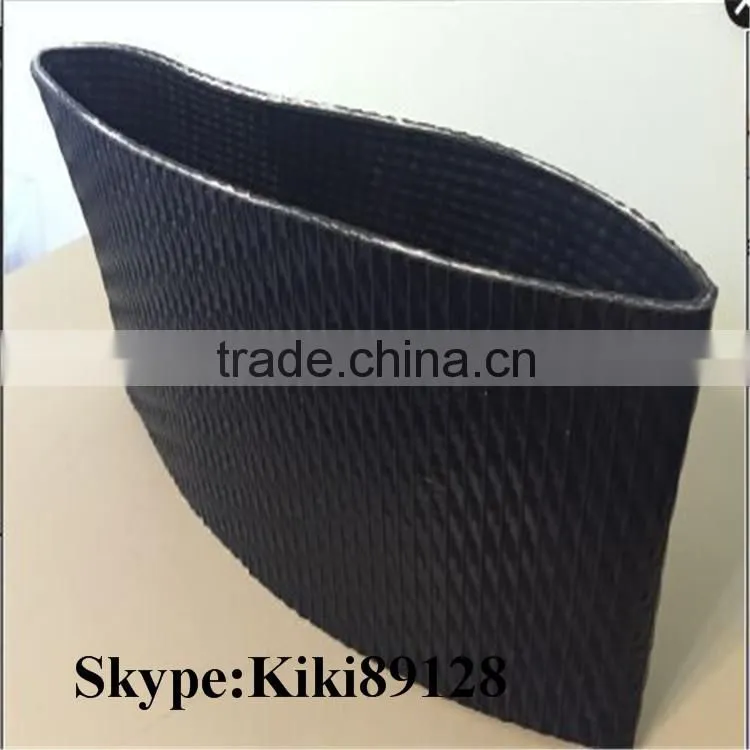

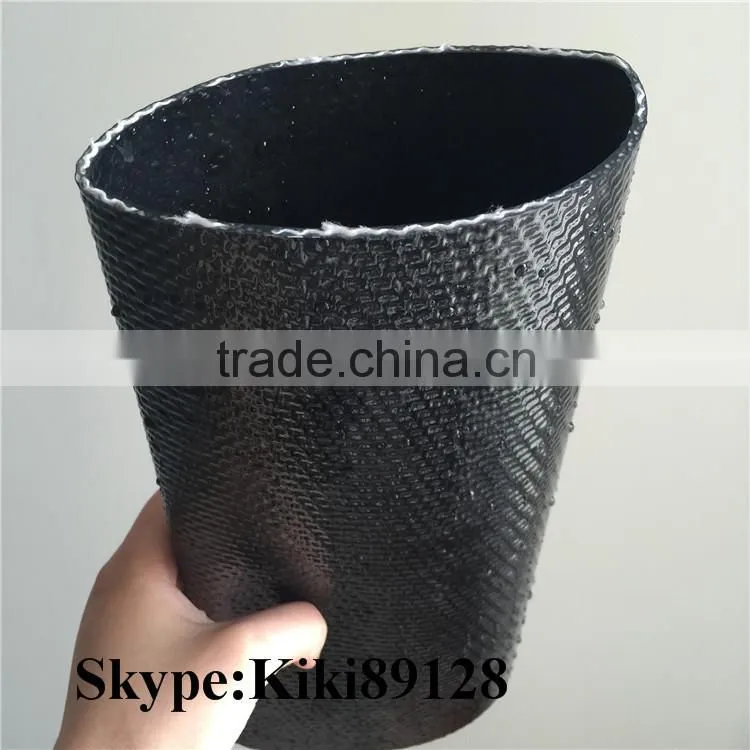

3.TPU lay flat hose:

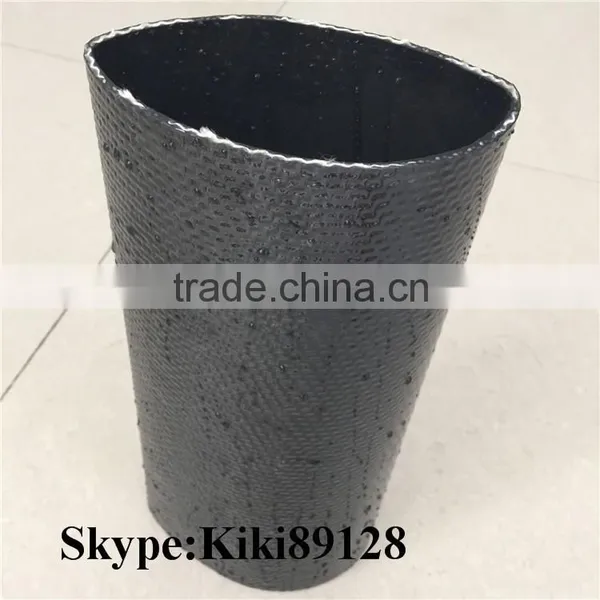

This hose is madefrom extruded thermoplastic polyether based polyurethane (TPU) with excellentwear & tear properties. The reinforcement is made from circular wovenfilament polyester yarn. The "extrusion through-the weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
Features:
Cover and Lining: PU, Ribbed cover or smoothcover Anti-UV Non-toxic and odorless
Reinforcement Jacket: High-tenacity synthetic jacket Color: Blue, Green,Black, Red, Green

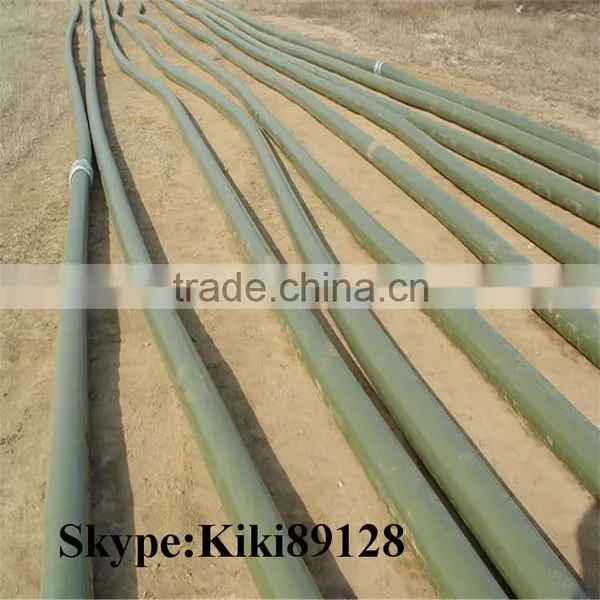

Application:Irrigation, Pumping of sludge and liquid fertilizers, supply or drag hose
Available lenghth: 30m (100ft), 61m(200ft), 91.5m (300ft), 100m (330ft) 200m(660ft)
This hose can operate in atemperature range from -50 C deg to 80 C deg(-58 F deg to +176 F deg).
SPECIFICATIONS:
| Inner Diameter | Wall Thickness(mm) | ||||||
| MM | Inch | 0.6MPa | 0.8MPa | 1.0MPa | 1.5MPa | 2.0MPa | 2.5MPa |
| 101.6 | 4 | 2 | 2.66 | 3.2 | 3.6 | 4.2 | 5 |
| 127 | 5 | 2.1 | 3.2 | 3.4 | 4.3 | 5 | 5.7 |
| 152.4 | 6 | 2.4 | 3.2 | 4 | 5 | 5.8 | 6.5 |
| 203.2 | 8 | 2.8 | 3.7 | 4.5 | 5.2 | 6 | |
| 254 | 10 | 3 | 4 | 5 | 5.8 | 6.7 | |
| 304.8 | 12 | 3.3 | 4.4 | 6 | 7.5 | ||
6 bar-25 bar W.P.
Strong bonding between cover and lining as well as firmly encapsulating the woven polyester
High strength, good toughness, wear resistance, cold resistant, oil resistant, water resistant, aging resistance, weather resistance resistance uv radiation and energy release.
APPLICATIONS:
NOTES FOR USING THE HOSE :
1) suggest that the hose bue used within its recommender tempaerature and pressure range.
2) a hose epands and contracts according to the change of its internal pressure and temperature,cut the hose slingtly longer than it is needed.
3) when pressurizing,slowly open or close any valves to avoid impact pressure and protect the hose from being damaged
1. Hose Specification
We can produce lay flat hose acording to your request on Inner Diameter, working pressure and length per roll.
Before send you right quotation, pls kindly confirm with me.
2. About sample before order
We can supply 20-50cm free sample for your test or little longer, you just need to pay express freight or we can do freight collect.
3. MOQ
Usually our MOQ is 1000m, but for first cooperation we also accept little order, so any order is welcomed.
4.Shipping and delivery
We can send to you by sea/air/express according to you, ususally deliver within 7 working days after receive deposit.
