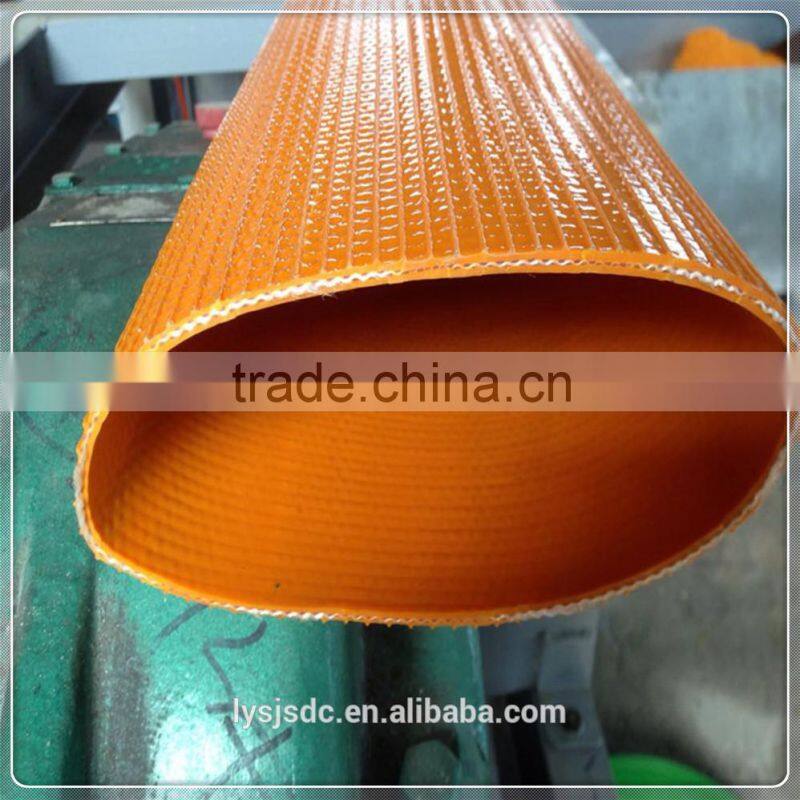

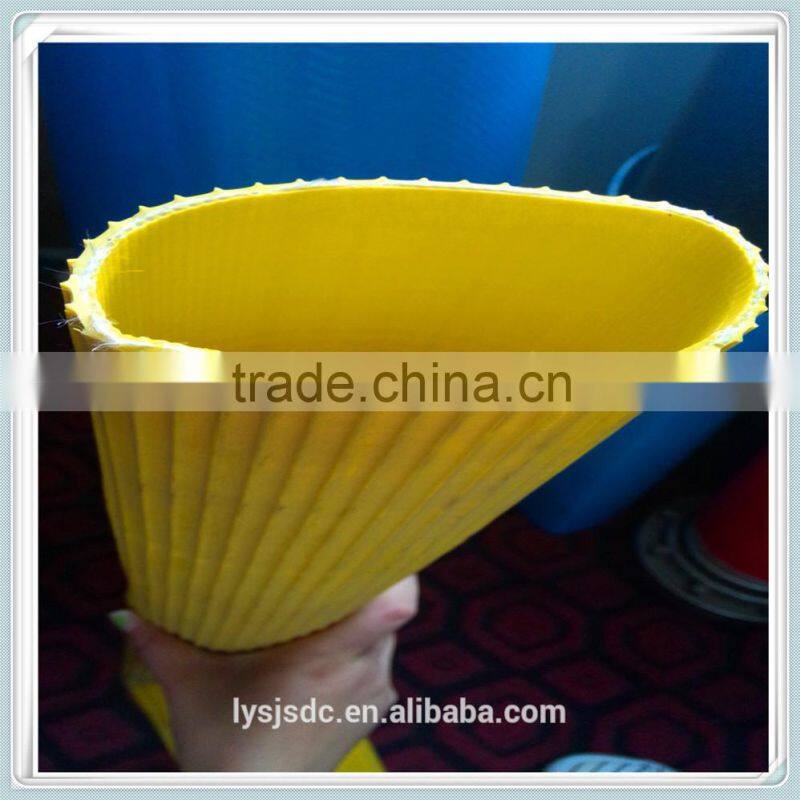

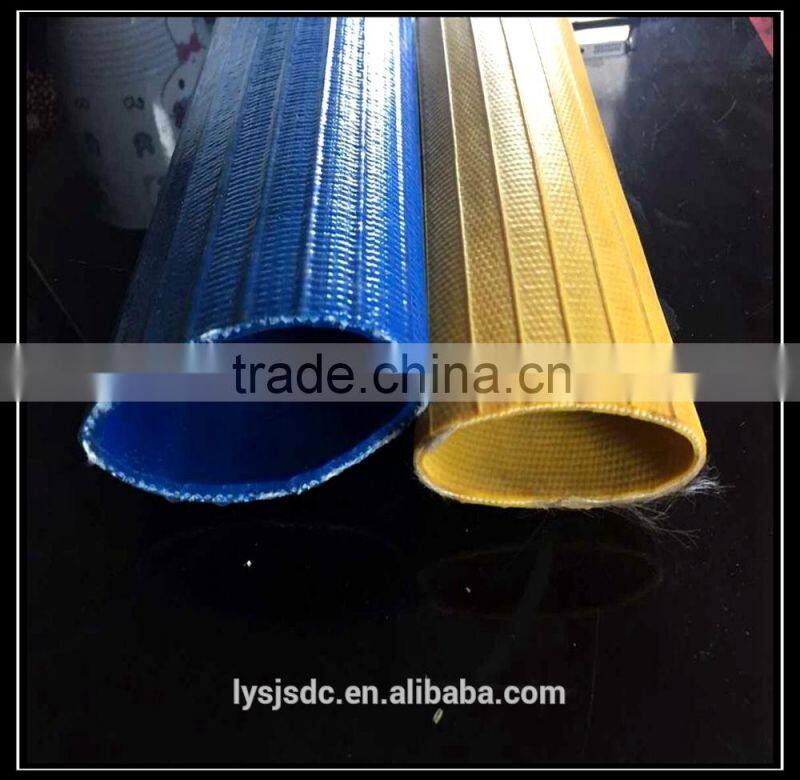

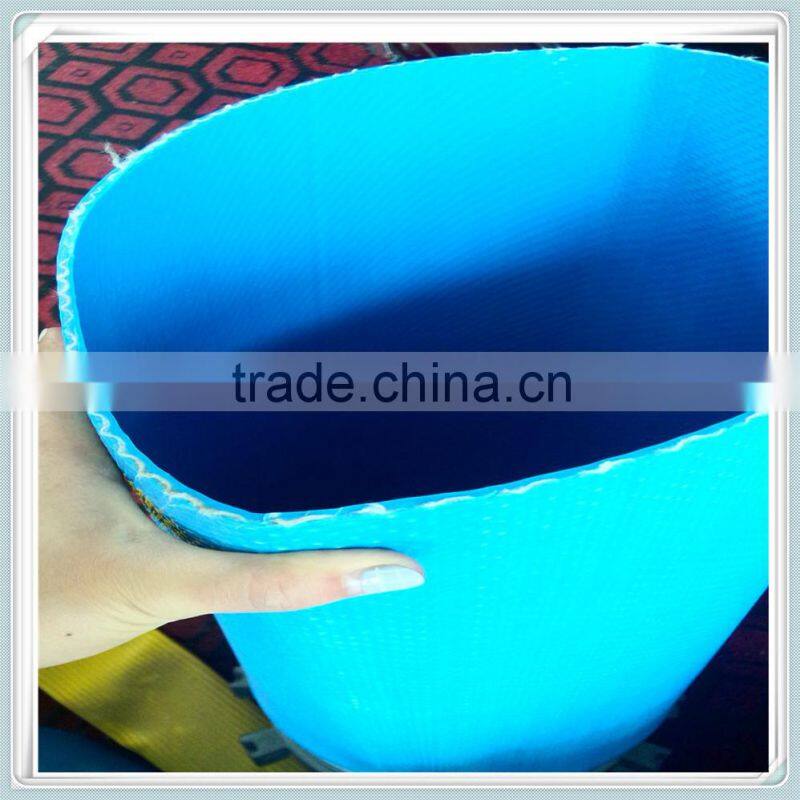

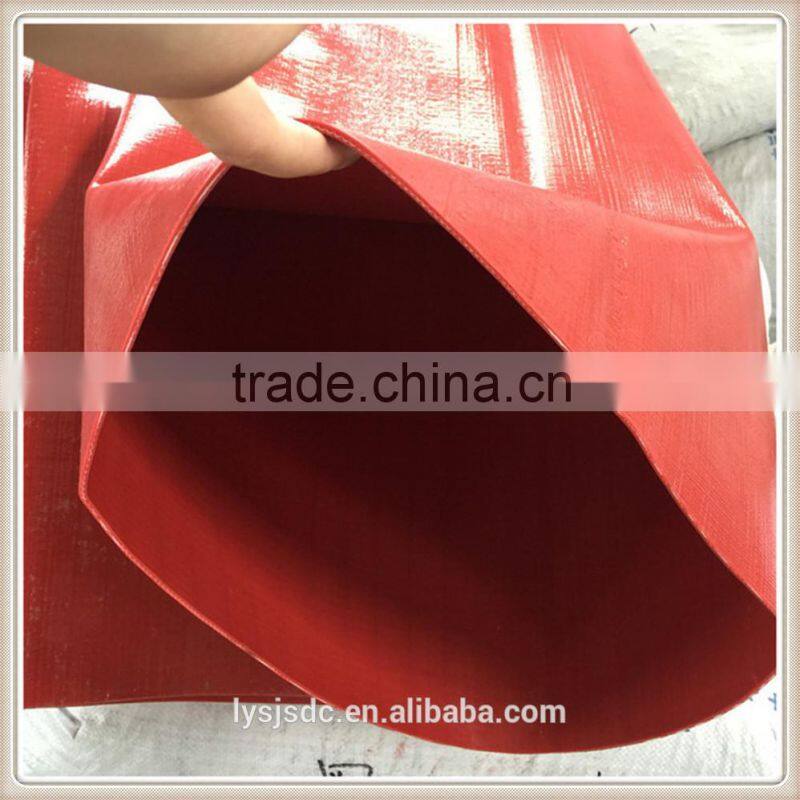

PVC Water 8 Inch Lay Flat Hose for Irrigation Agriculture and Mining Machine

PVC Water 8 Inch Lay Flat Hose for Irrigation Agriculture and Mining Machine photo-1

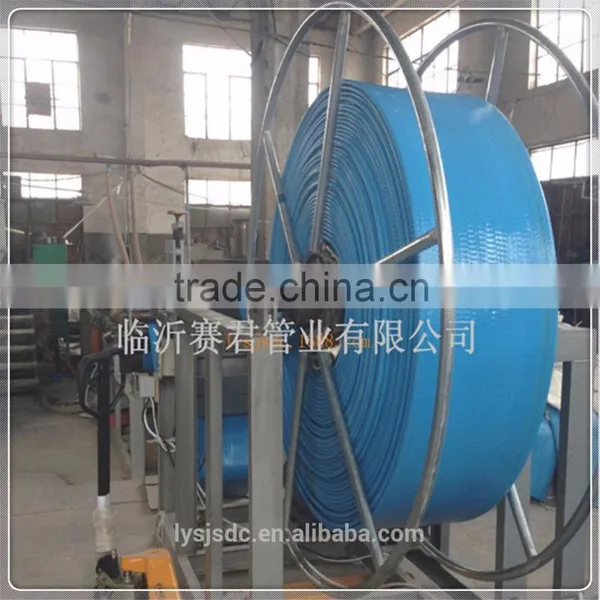

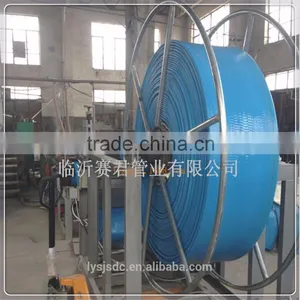

PVC Water 8 Inch Lay Flat Hose for Irrigation Agriculture and Mining Machine photo-2

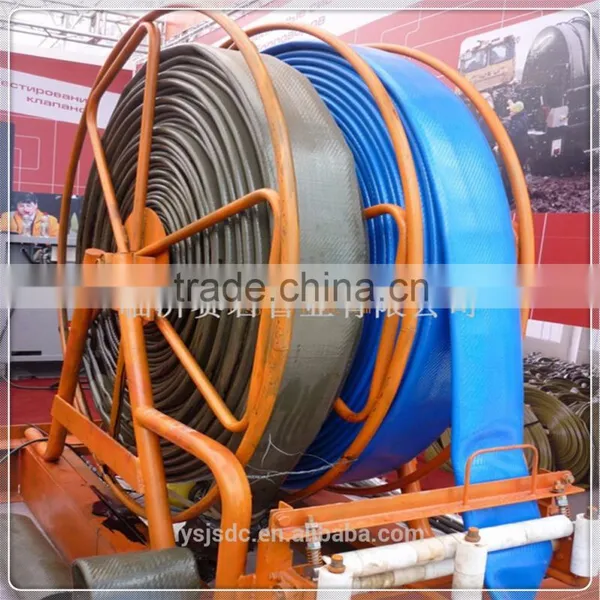

PVC Water 8 Inch Lay Flat Hose for Irrigation Agriculture and Mining Machine photo-3
PVC Water 8 Inch Lay Flat Hose for Irrigation Agriculture and Mining Machine photo-4

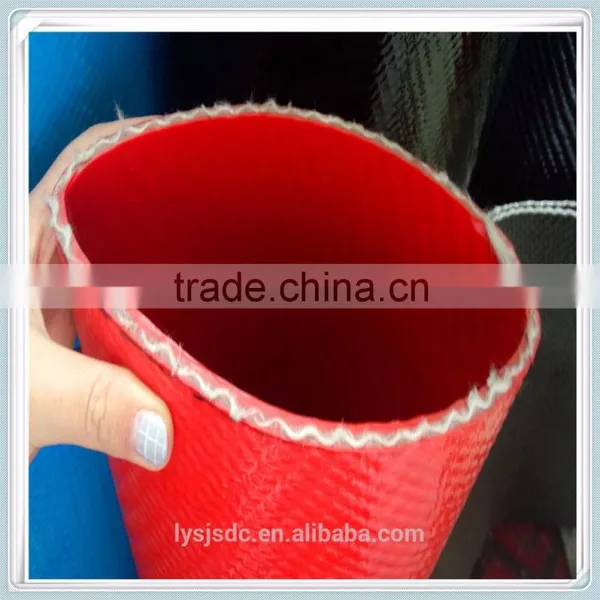

PVC Water 8 Inch Lay Flat Hose for Irrigation Agriculture and Mining Machine photo-5
US$ 0.5 - 50 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
sanjiang
Model Number:
2-20bar
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name sanjiang
Model Number 2-20bar
Material Other, drip irrigation water pump
Specification 1''-12''
Length 200m
Thickness 1.8-4.0mm
Standard enterprise standard

PVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining Machine

8 inch Hose irrigation

Product Description

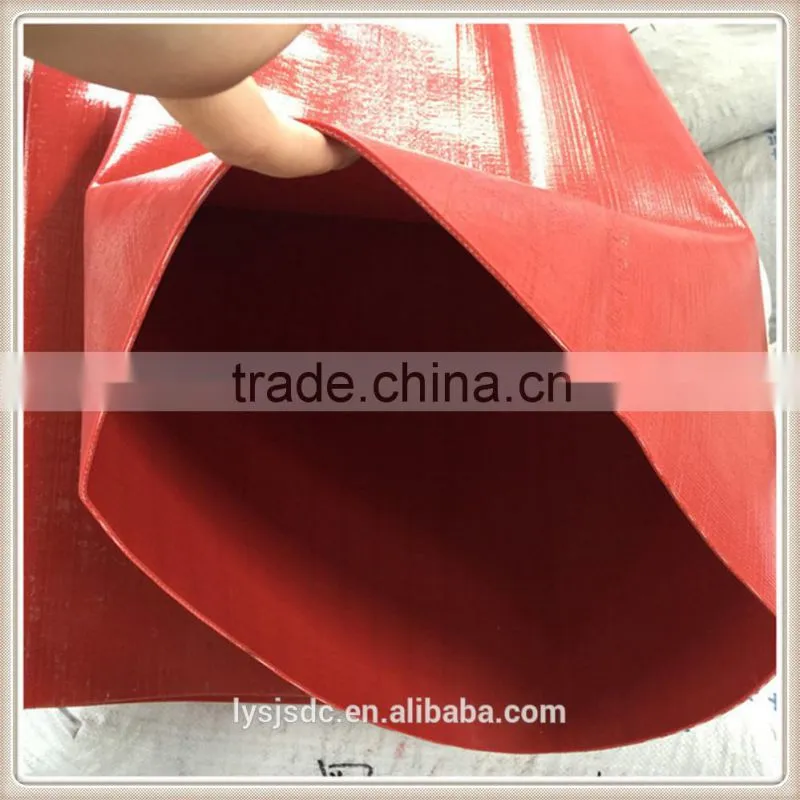

Ⅰ. PVC Layflat Hose

This hose that resists kinking and twisting is designed as a standard duty hose for water discharge in industrial and construction applications, and is economical and rolls up flat for easy storage.

PVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining MachinePVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining Machine



Specification of Layflat Hose

The specification of layflat hose is our factory standard data,  just for your reference. We can customize layflat hose for you according to your detailed requirements!



inside diameter wall thickness    mm
mm inch 0.2 MPa 0.4 MPa 0.6 MPa 0.8 MPa 1.0MPa 1.5MPa 2.0 MPa 2.5MPa
25.4 1 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8
38.1 1 1/2 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8
50.8 2 1.4 1.6 1.8 2 2.2 2.4 2.6 3
63.5 2 1/2 1.4 1.7 2 2.2 2.4 2.6 2.8 3.2
76.2 3 1.5 1.8 2.1 2.3 2.5 2.8 3 3.2
101.6 4 1.5 1.8 2.1 2.3 2.5 2.8 3 3.2
127 5 1.5 1.8 2.1 2.3 2.5 2.8 3
152.4 6 1.6 2 2.2 2.5 2.8 3 3.2
203.2 8 1.8 2.3 2.5 2.8 3 3.2
254 10 2 2.3 2.8 3 3.2
304.8 12 2.4 2.8 3 3.2 3.4

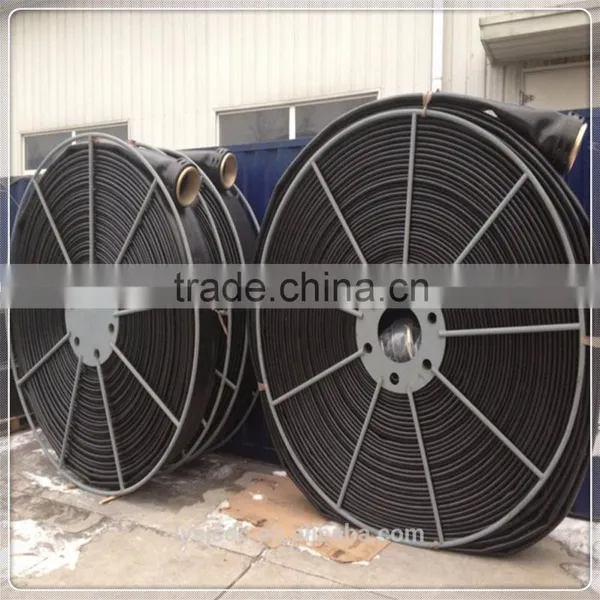

Ⅱ. High Pressure PVC-Nitrile Rubber Layflat Hose

It is a ribbed nitrile oil resistant discharge lay flat hose, which is lighter and less bulky than most runner discharge hoses, and resists abrasion and weathering. Used in many varied applications, with limited oil and chemical use. Resists kinking and stretching while in service.

PVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining MachinePVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining Machine

PVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining Machine

PVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining Machine



Ⅲ.  TPU Layflat Hose

TPU (Thermoplastic polyurethanes) is increasingly popular. It is proud of its superior performance and the concept of environmental protection. At present, TPU can become better substitute of PVC, with excellent abrasion resistance, oil resistance, temperature resistance.

PVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining MachinePVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining MachinePVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining MachinePVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining MachinePVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining Machine

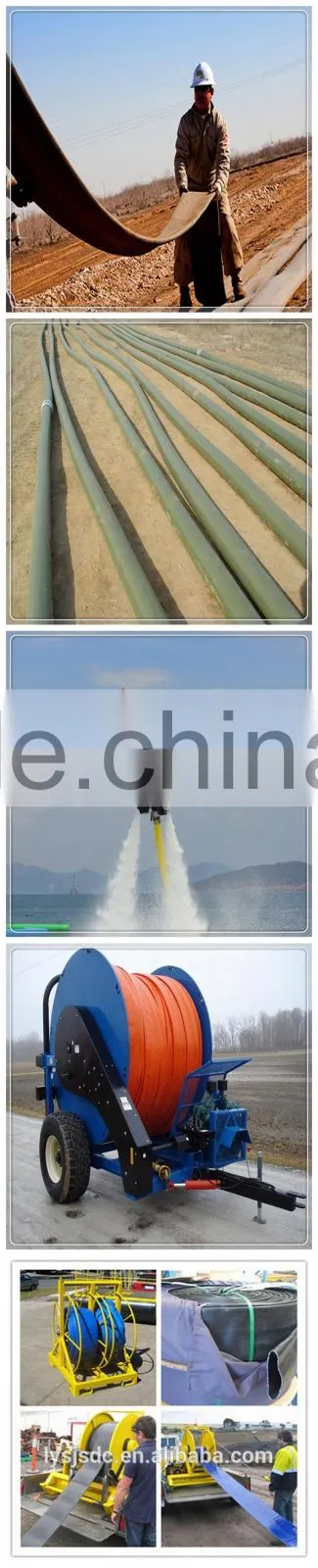

Applications

Agriculture: irrigation, mobile sprinkler, drip irrigation

Mine: emergency drainage, water supply

Construction:  temporary water supply

Industry:  sewage, aeration

Oil well washing to remove sediment

Long distance water supply for the exploitation of shale gas



PVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining Machine







Features of Lay Flat Hose



Quick installation, mobile use, rolling

High pressure, abrasion resistance, temperature resistance, anti-aging

Different colors available





NOTES FOR USING THE HOSE :

1) suggest that the hose bue used within its recommender tempaerature and pressure range.



2) a hose epands and contracts according to the change of its internal pressure and temperature,cut the hose slingtly longer than it is needed.



3) when pressurizing,slowly open or close any valves to avoid impact pressure and protect the hose from being damaged

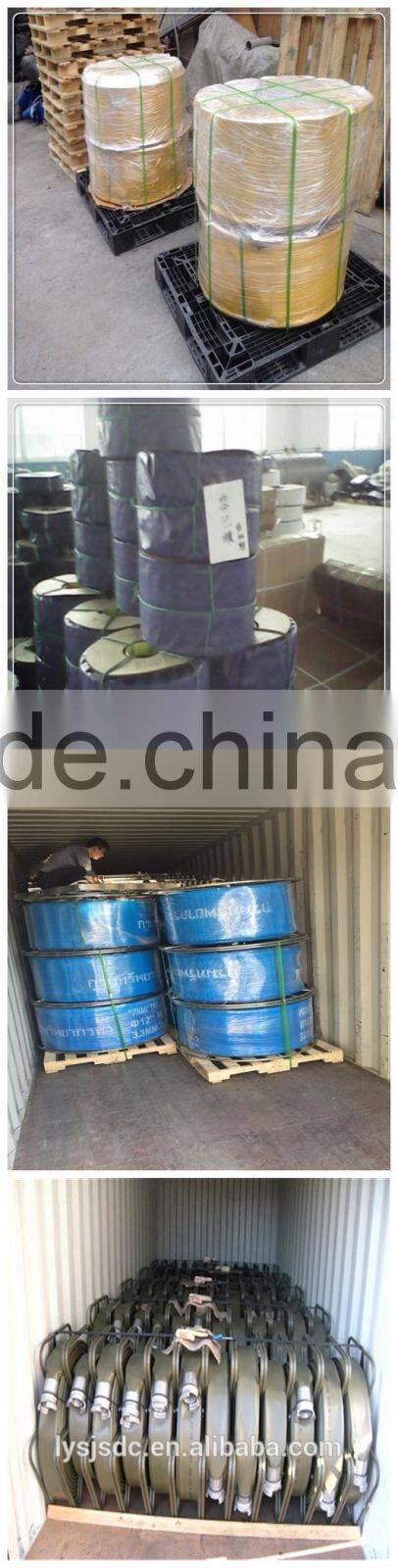

Packaging & Shipping

 PVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining Machine







Company Information

PVC Water 8 inch lay flat Hose for Irrigation agriculture and Mining Machine


FAQ

 Hose Specification

We can produce lay flat hose acording to your request on Inner Diameter, working pressure and length per roll.Before send you right quotation, pls kindly confirm with me.

About sample before order

We can supply 20-50cm free sample for your test or little longer, you just need to pay express freight or we can do freight collect.



MOQ

Usually our MOQ is 1000m, but for first cooperation we also accept little order, so any order is welcomed.



Shipping and delivery

We can send to you by sea/air/express according to you, ususally deliver within 7 working days after receive deposit.



Skype:qiaofangwin8

Whatsapp:008615762983159

Email: fang(@)

QQ:2285548034

Facebook: PVC layflat hose
