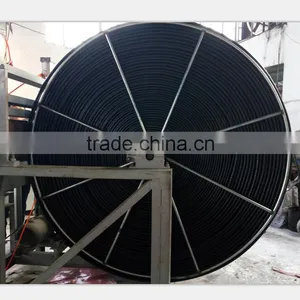

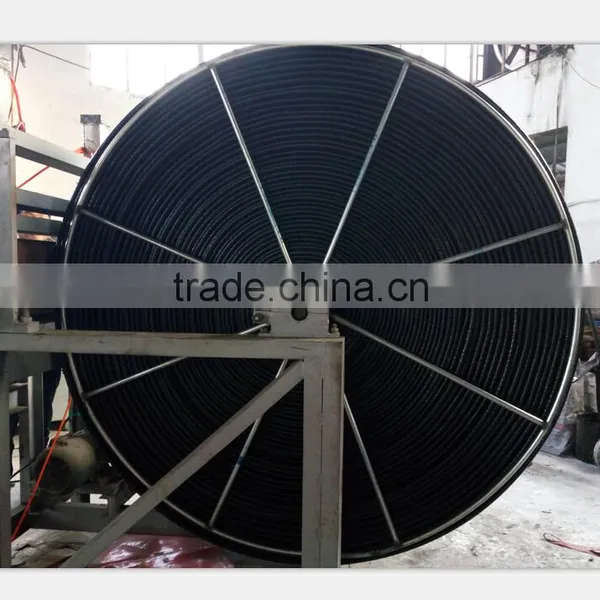

TPU lay flat hose/UV resistanceTPU lay flat hose mining
Cover and Lining: PU, Ribbed cover or smoothcover
Reinforcement Jacket: High-tenacity synthetic jacket
Color: Blue, Green,Black, Red, Yellow
Application:Irrigation, Pumping of sludge and liquid fertilizers, supply or drag hose
This hose is madefrom extruded thermoplastic polyether based polyurethane (TPU) with excellentwear & tear properties. The reinforcement is made from circular wovenfilament polyester yarn. The "extrusion through-the-weave" productionmethod gives a very strong bonding between cover and lining as well as firmlyencapsulating the woven polyester
This hose can operate in atemperature range from -50 C deg to 80 C deg(-58 F deg to +176 F deg).
SPECIFICATION
TPU lay flat hose/UV resistanceTPU lay flat hose mining
| Inner Diameter | Wall Thickness(mm) | ||||||
| MM | Inch | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
| 101.6 | 4 | 2 | 2.66 | 3.2 | 3.6 | 4.2 | 5 |
| 127 | 5 | 2.1 | 3.2 | 3.4 | 4.3 | 5 | 5.7 |
| 152.4 | 6 | 2.4 | 3.2 | 4 | 5 | 5.8 | 6.5 |
| 203.2 | 8 | 2.8 | 3.7 | 4.5 | 5.2 | 6 | |
| 254 | 10 | 3 | 4 | 5 | 5.8 | 6.7 | |
| 304.8 | 12 | 3.3 | 4.4 | 6 | 7.5 | ||
1. Hose Specification
We can produce lay flat hose acording to your request on Inner Diameter, working pressure and length per roll.
Before send you right quotation, pls kindly confirm with me.
2. About sample before order
We can supply 20-50cm free sample for your test or little longer, you just need to pay express freight or we can do freight collect.
3. MOQ
Usually our MOQ is 1000m, but for first cooperation we also accept little order, so any order is welcomed.
4.Shipping and delivery
We can send to you by sea/air/express according to you, ususally deliver within 7 working days after receive deposit.
