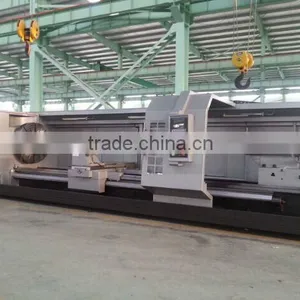

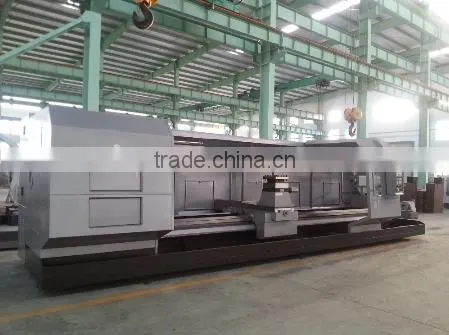

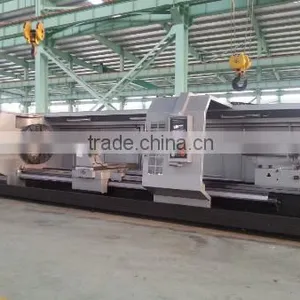

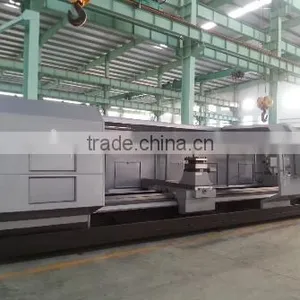

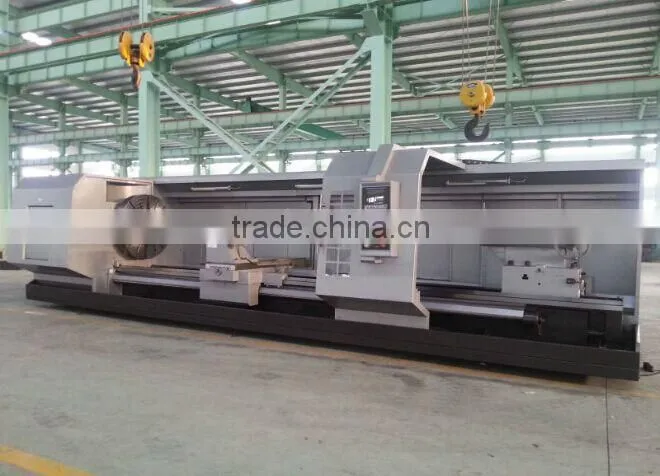

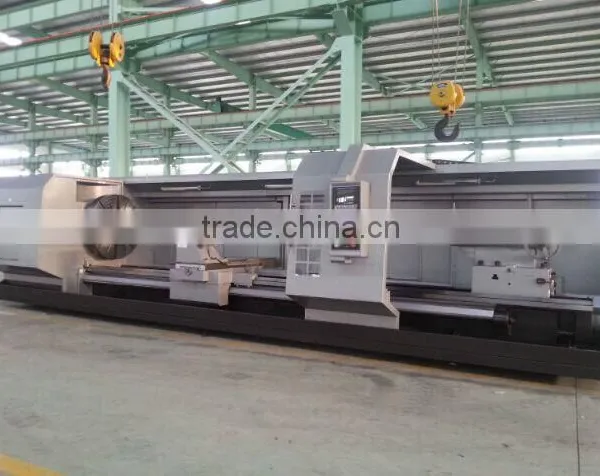

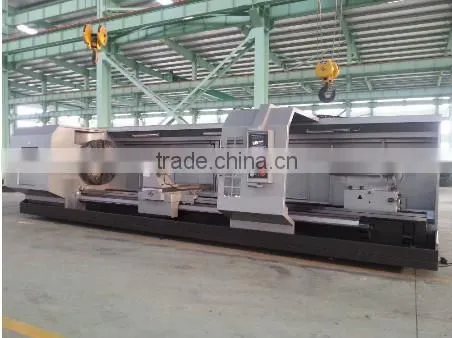

machine tool CK61140 poreba heavy lathe machine torno
- 50 Set / Sets per Month
- QINGDAO
- T/T Credit Card
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 1400mm | Place of Origin: | Shandong, China |
Brand Name: | HAISHU | Model Number: | CK61140*14000 | Voltage: | 380v |
Power(W): | 30000w | Dimension(L*W*H): | 17000X2700X2800 mm | Weight: | 80000KG |
Certification: | CE,ISO9001:2008,TUV | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
machine tool CK61140 poreba heavy lathe machine torno
1.specification
|
|
Max swim over bed diameter | 1400mm |
Max swim over turret diameter | 920mm |
Max workpiece length | 14000mm |
Bed guide width | 1100mm |
Two center bear max workpiece weight | 15000kg |
2.spindle
Spindle center distance bed height | 725mm |
Spindle bore diameter | 130mm |
Spindle end type | A2-15 |
Spindle bore front taper and center taper | metric140mm 1:20 |
Spindle speed gears | Four gears machinel speed |
Spindle speed range(frequency stepless change speed) | 5-400r/min |
Chuck(manual) | K721250 4 jaw single chuck 1250mm |
Main motor powe (frequency motor) | Y200L-4 30Kw |
3.feed system
Z axis adopts rack transmission, X adopts screw transmission
4.turret
center line of the main shaft to tool supporting the vertical distance | 48 |
Cutting tools section size
| 45×45 |
Electric turret (standard accessory) | AK23380X4D(380X380)turre post
|
Repeat positioning accuracy of turret indexing | 0.006 mm |
biggest travel bed saddle Z axis | +100mm |
rest of the maximum horizontal stroke X axis
| 840mm |
bed saddle fast moving speed Z axis | 5000mm/min |
Turret quick move speed X axis | 4000mm/min |
5.tailstock
diameter of the top sleeve and schedule | φ240 300 |
Tailstock sleeve taper | 1:20 metric 80 |
6.power system
main motor type and power | Y200L-4 30Kw |
cooling pump type and power | JCB-45 0.18Kw |
Tailstock motor | 1.5Kw |
7.machine size
diemension(length*width*height) | 17000X2700X2800 |
weight(CK61140X14000) | 800000kg |
Optional tool post | vertical 4/6 station horizontal 6 station toolpost | ||
Optional chuck | manual chuck | ||
hydrulic chuck | |||
pneumatic chuck | |||
Optional tailstock | manual tailstock | ||
hydrulic tailstock | |||
pneumatic tailstock | |||
Optional CNC System | GSK/KND/GUANGTAI/SEMENS/FANUC |

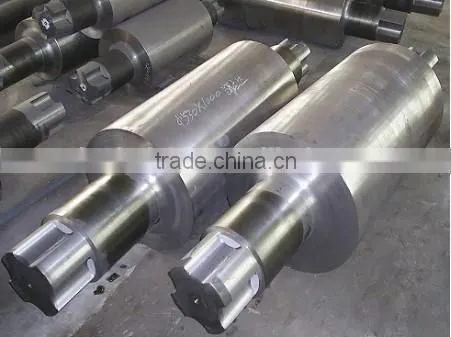

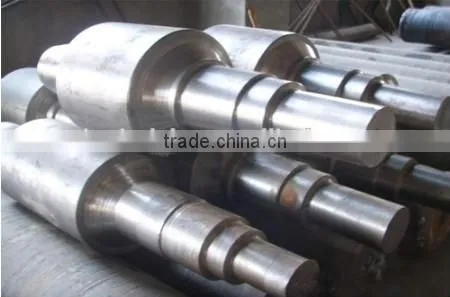

Machine usage and features
1.The machine can assume a variety of turning the workpiece, which can turning various parts forming the outer surface of the inner hole, end and metric thread,
inch thread, modulus pitch screw threads and the like; addition, you can meet the drilling, boring Kong, nesting and other technical requirements, but also applies
to conduct powerful cutting with carbide tools, processing a variety of ferrous and nonferrous metals.
2.The bed is large-span double sidewall ribs, the ribs and oblique muscle using a combination of box-shaped overall bed structure, the overall stiffness.
3.This machine has the power, low noise, high rigidity, high accuracy nd to maintain good accuracy the intrinsic characteristics, but also has a nice shape,
reasonably compact layout and other external characteristics, but also has a handle focus, signs image intuitive, flexible and easy to operate, safe reliable,
pleasant and good; addition, the machine uses AC frequency control device brand-name manufacturers to achieve fourth gear stepless speed, based on the original lathe improve work efficiency, stable and reliable.
4.The machine dragging by frequency conversion motor spindle, after slipping gears to achieve the 1.2.3.4 fourth gear shift frequency stepless speed,
with good torque characteristics and power characteristics, fast-moving slide plate has a function, easy to operate and flexible.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in machine tool CK61140 poreba heavy lathe machine torno, welcome to leave a message or send the inquiry to understand the details of machine.
