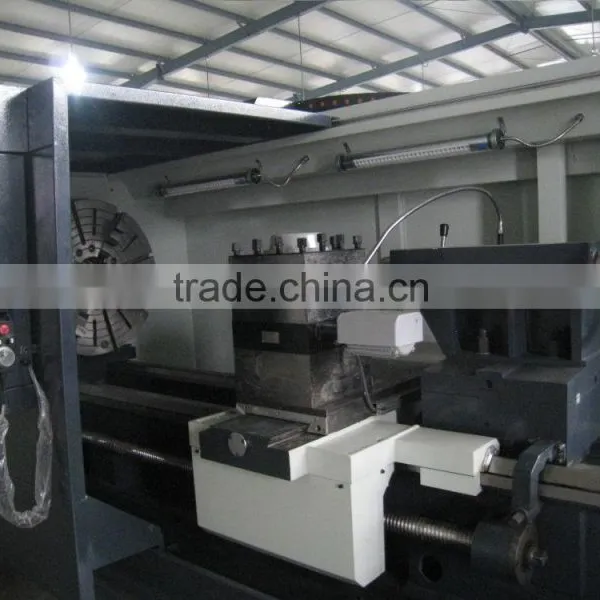

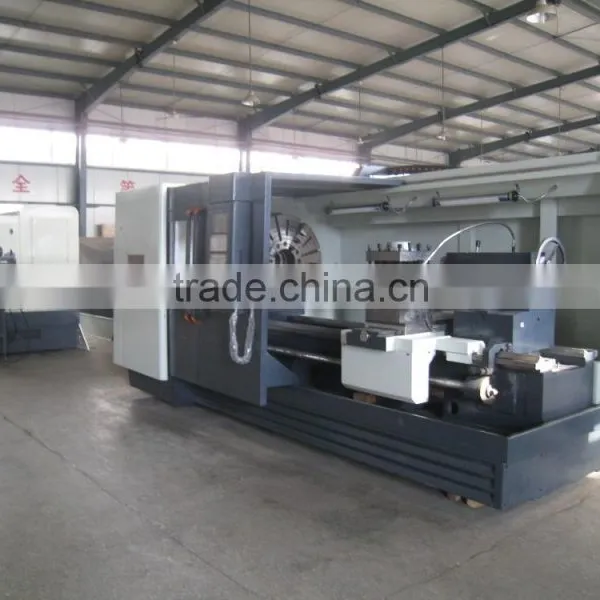

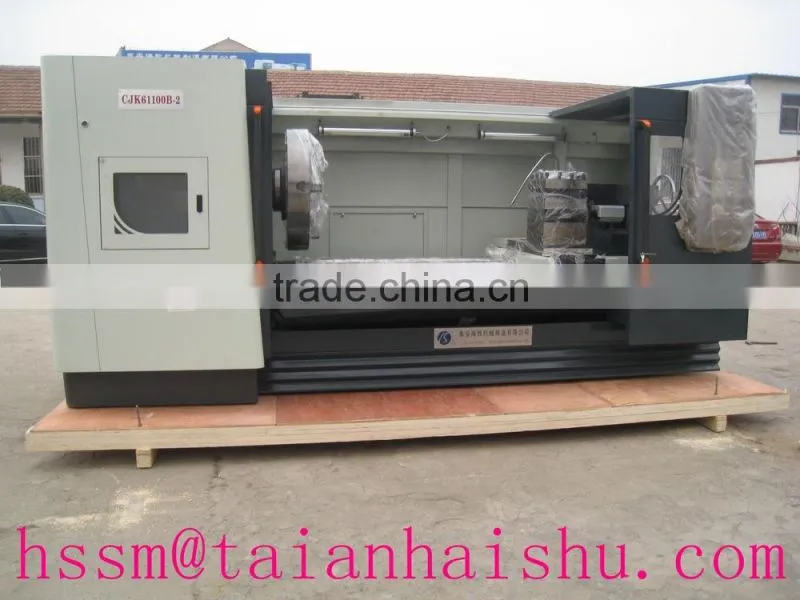

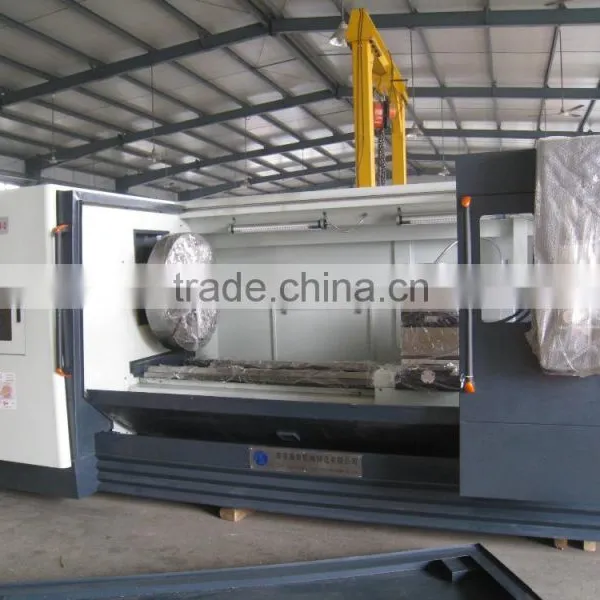

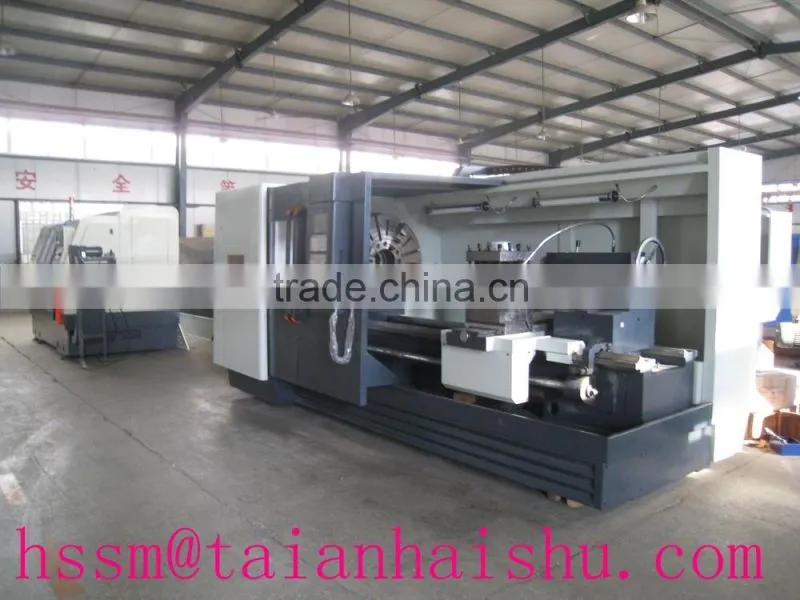

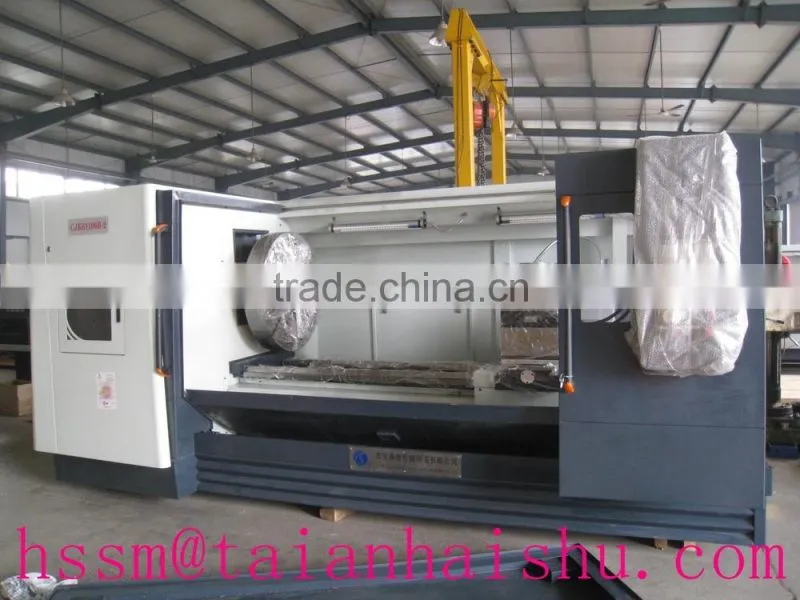

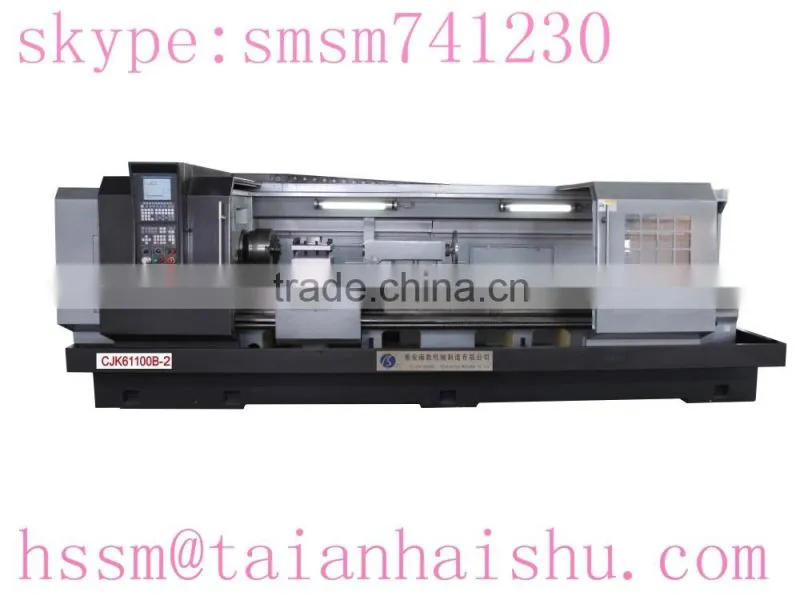

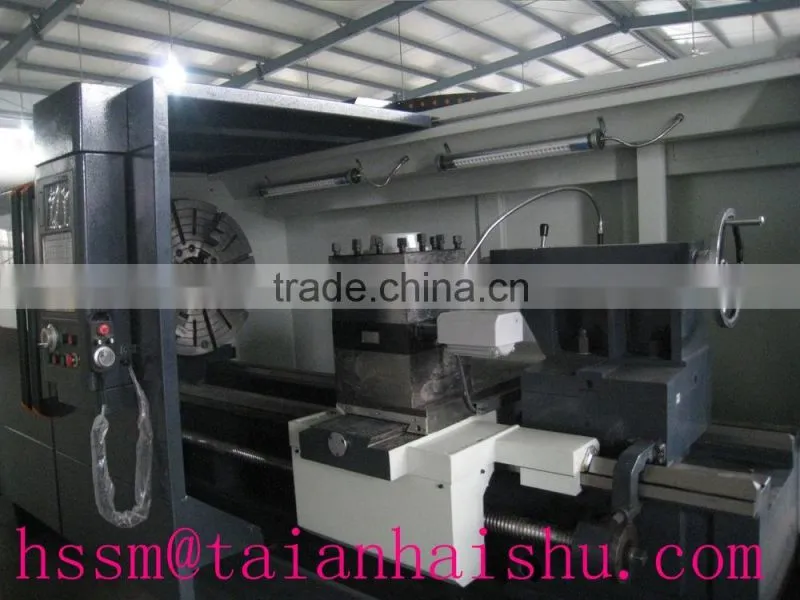

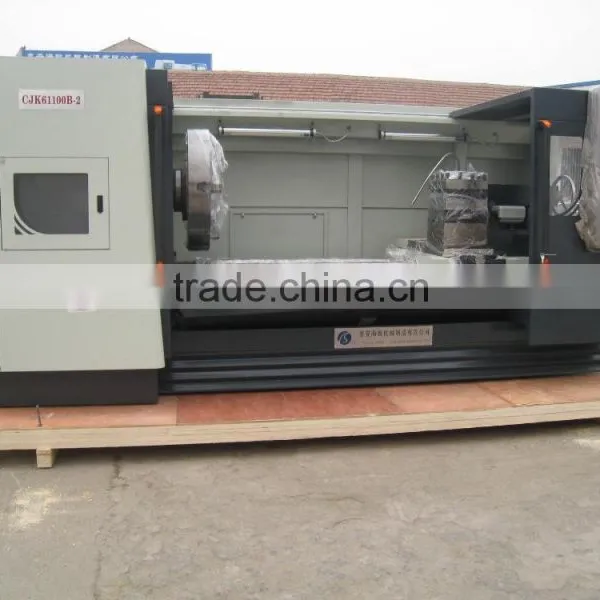

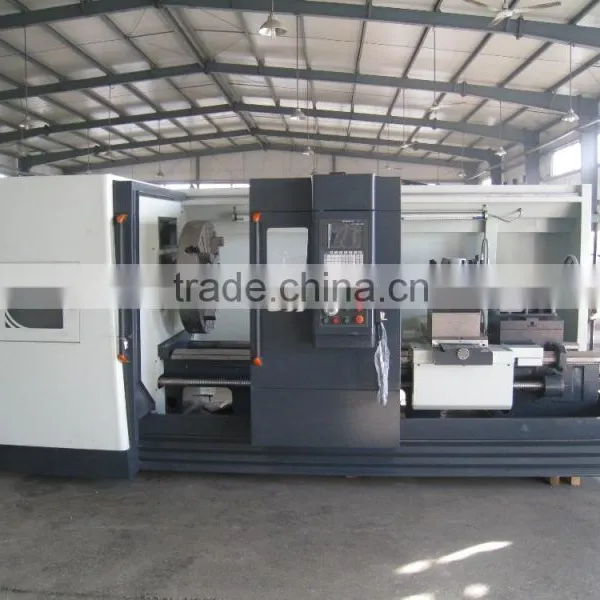

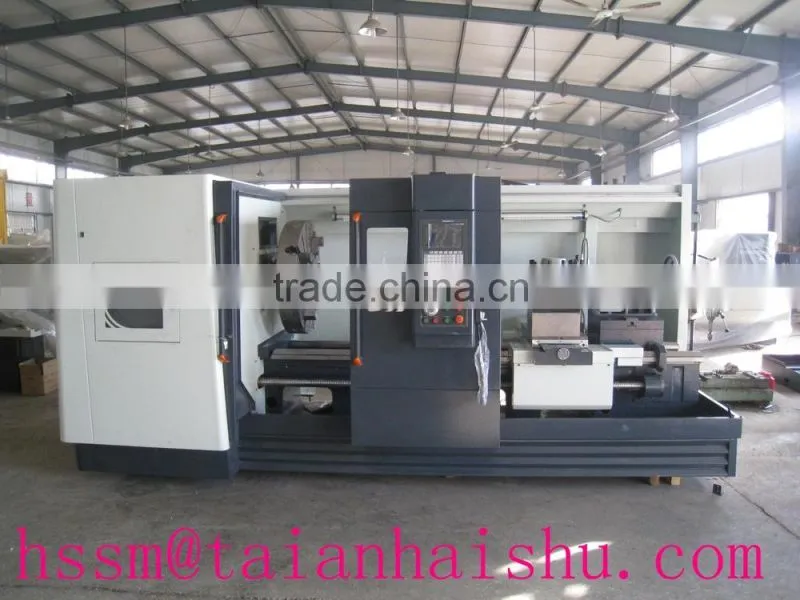

heavy machine tool CJK61100B-2X2000 poreba heavy lathe machine torno
1.General Specifications
CJK61100B-2×2000 | |
|
Maximum workpiece swing diameter over bed
|
Φ1000mm |
Maximum workpiece rotating diameter on the turret |
Φ660mm |
Max workpiece length |
2000mm |
Bed rail width and super audio quenching hardness |
660mm HRC46-52 |
Two centers maximum workpiece bearing weight |
3000kg |
Maximum plate workpieces allowable weight |
1300kg |
:Headstock
The height from Spindle center to bed |
500mm |
Spindle hole diameter |
Φ1 130mm |
Front spindle bearing diameter |
Φ1 180mm |
Headstock length |
850mm |
Spindle ends Code |
C11 |
|
Front spindle taper hole diameter and taper
|
Metric system 140mm 1:20 |
Spindle speeds (mechanical third gear) |
38-90-285r/min |
Spindle speed range (frequency stepless) |
15-500r/min |
Chuck (manual) four - jaw chuck |
K72800 Φ800mm |
Main motor type and power |
YVP180L-6-B5 15Kw 970r/min |
3. Feeding system:
X / Z to feed to the minimum increment |
0.001/0.001 mm |
|
X /Z to feed range |
1~2000mm/min |
X-axis ball screw diameter and pitch |
Φ40mm×6mm |
|
Z ball screw diameter and pitch
|
Φ1 63mm×10mm |
|
Servo drive motor rated torque
|
X:15N.m Z:23N.m |
Repeat accuracy |
X:0.012mm Z:0.020mm |
|
Positioning accuracy
|
X:0.030mm Z:0.045mm |
Items |
CJK61100B-1 |
CJK61125B-1 |
Max.swim over bed (mm) |
1000 |
1250 |
Max.swim over carriage(mm) |
660 |
880 |
Max.length of work piece(mm) |
1000/1500/3000 |
|
Spindle speed |
auto 3 gear steps,stepless speed change in the step |
|
Range of Spindle speed (r/min) |
18-600 |
|
spindle nose |
C11 |
|
Spindel bore(mm) |
φ105 |
|
taper hole of spindle |
120 1:20 |
|
Main motor model |
YVP180L-6-15KW |
|
Max.travel(mm) |
X 500 Z 1200,1650,3100 |
X 650 Z 1200,1650,3100 |
rapid speeds(mm/min) |
X 4000 Z 5000 |
|
Min.feed increment(mm) |
X 0.01 Z 0.015 |
|
workpiece accuracy |
IT6-IT7 |
|
surface roughness |
Ra1.6 |
|
diameter of tailstock quil(mm) |
100 |
|
travel of tailstock quill(mm) |
250 |
|
taper hole of tailstock quill |
Morse 6 |
|
stand configuraion |
Vertical 4-position electrical turre |
|
Packing size (mm) |
3750/4750/5500×1920×1800 |
|
weight |
5000/6000/7000 |
|
If you are interested in heavy machine tool CJK61100B-2X2000 poreba heavy lathe machine torno,welcome to leave a message or send the inquiry to understand the details of machine.
