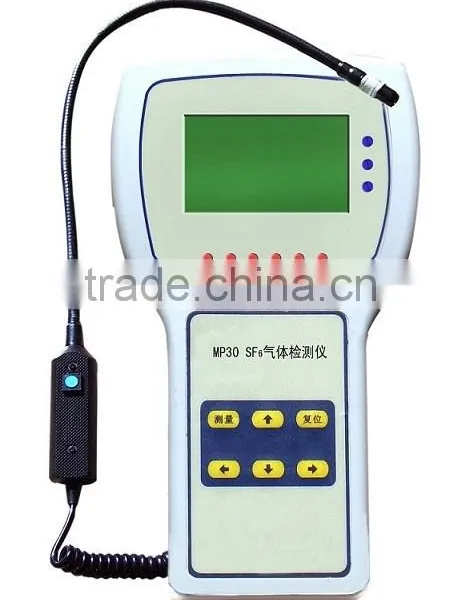

SF6 gas leakage detector is special for detecting leakage of SF6 gas.
1. It is small, light, portable and equipped with snake-shaped detector;
2. It has high sensitivity and stability, responds fast and can check leakage gas over 3g per year;
3. It is highly accurate with advanced calibration method and high accuracy standard line;
4. It displays with a LCD screen and equipped with acousto-optic alarming system;
5. It has rechargeable nickel-metal hydride battery inside and can continuously work more than 5 hours, which is very suitable for field test, SF6 HV switch factory and research institutions.
Main technical data of SF6 gas leak detector
1) Min. detecting value: 1 (x 10-6 volume)
2) Detecting range: 1~1000 (x 10-6 volume)
3) Corresponding time: < 1s
4) Resuming time: < 10s
5) Displaying value error: ≤±3%
6) Repeatability error: ≤1%
7) Max. sensitivity when sensor in static: 3g per year
8) Displaying method: digital displaying and acoustic & optical signals
9) Probe detecting length: handheld, no limit
10) Continuous working duration: 5 hours
11) Power supply: chargeable battery and AC
12) Ambient temperature: -5°C~+45°C, RH≤85%
13) Weight: 2kg
14) Dimension: 400 x 230 x 90mm
1. High quality product and delightful human after-sale service;
2. One year warranty service.
Founded in 2010,Xi’an YuanShun Electrical Co., Ltd is located at the central business district of Economic and Technology Developing Zone, which is the new center of Xi’an City, Shaanxi, China. Xi’an YuanShun Electrical Co., Ltd is a high-tech industry company with intensive technology orientation, which is engaged in development, production, sales and technology service for SF6 gas industry.
