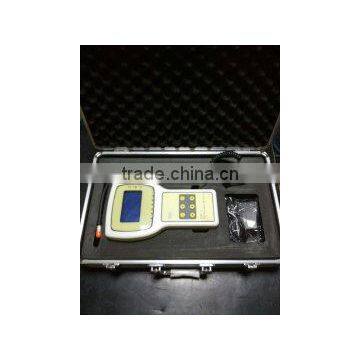

Professional SF6 gas leak detector
Product Description
SF6 gas leakage detector is special for detecting leakage of SF6 gas
Product Effects
1. It is small, light, portable and equipped with snake-shaped detector
2. It has high sensitivity and stability, responds fast and can check leakage gas over 3g per year
3. It is highly accurate with advanced calibration method and high accuracy standard line
4. It displays with a LCD screen and equipped with acousto-optic alarming system
5. It has rechargeable nickel-metal hydride battery inside and can continuously work more than 5
hours, which is very suitable for field test, SF6 HV switch factory and research institutions
Major technological index
1) Min. detecting value: 1 (x 10-6 volume)
2) Detecting range: 1~1000 (x 10-6 volume)
3) Corresponding time: < 1s
4) Resuming time: < 10s
5) Displaying value error: ≤±3%
6) Repeatability error: ≤1%
7) Max. sensitivity when sensor in static: 3g per year
8) Displaying method: digital displaying and acoustic & optical signals
9) Probe detecting length: handheld, no limit
10) Continuous working duration: 5 hours
11) Power supply: chargeable battery and AC
12) Ambient temperature: -5°C~+45°C, RH≤85%
13) Weight: 2kg
14) Dimension: 400 x 230 x 90mm
Our service
1. High quality product and delightful human after-sale service;
2. One year warranty service.
