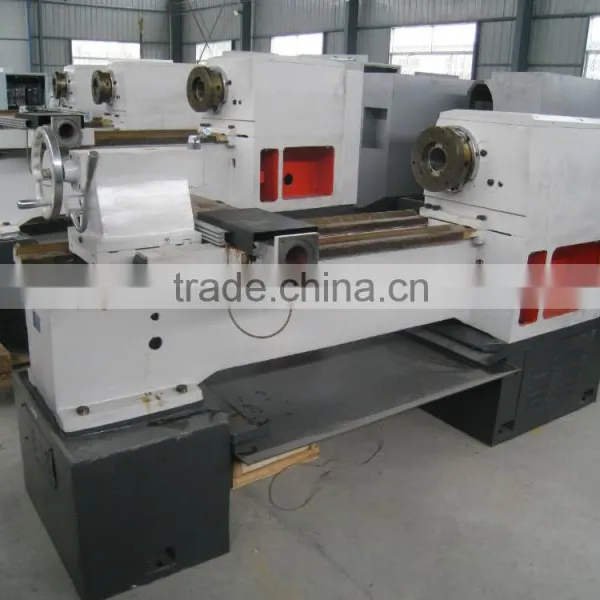

low cost machine CJK6150 cnc lathe machine

CJK6150 cnc lathe machine

Main features

1. Spindle brake way by electric brake

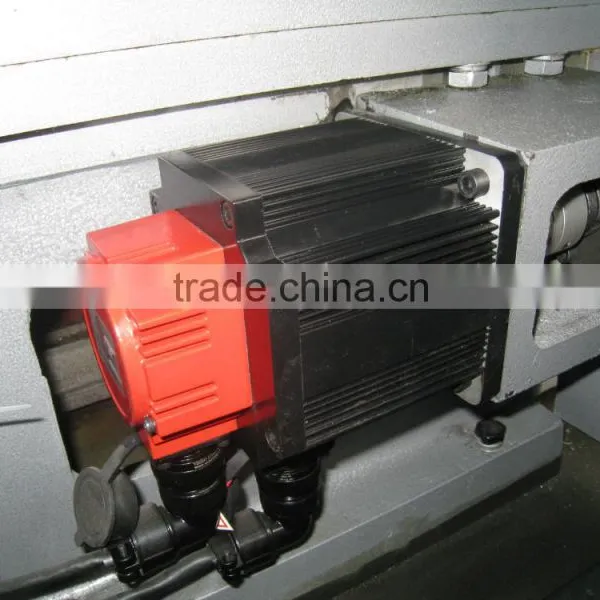

2.Feed of X.Z shaft are driven bu all screw with servo-motor or stepper motor

3.Rotary various workpiece surface automatically turning,precision maching

4.The carriage adopts plastic paste processing.wear small,high precision,long life.

5.Electronic hand wheel equipped,easy operation.

6.High efficiency,high precision

Standard configuration:

1.CNC system:GSK928

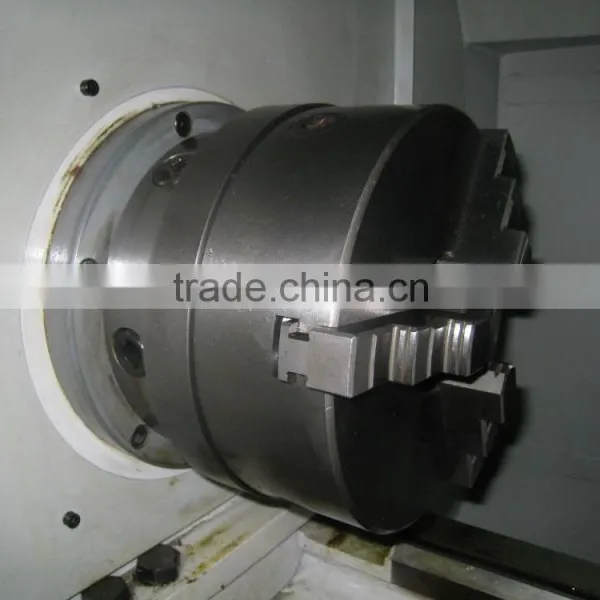

2.Manual chuck(250mm)

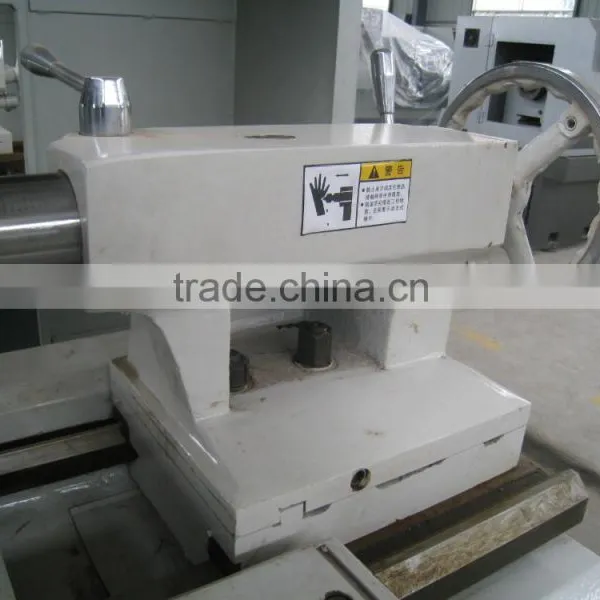

3.Manual tailstock

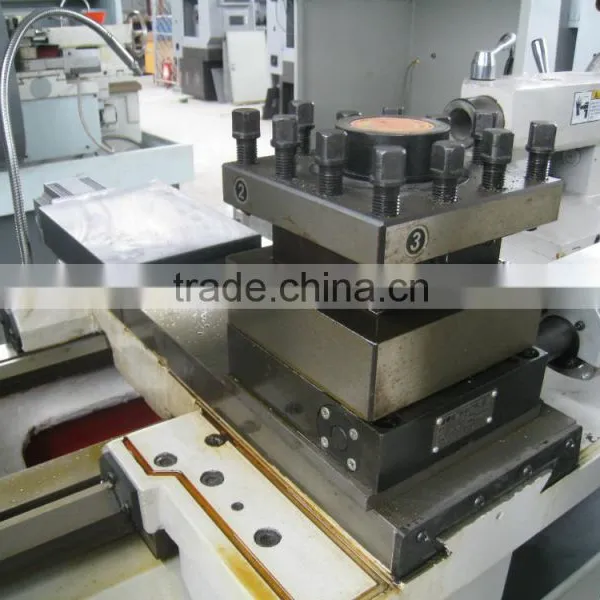

4.Vertical four-station electric turret

5.Automatic lubrication system

6.Turning the cooling system

Select configure:

1.CNC system:GSK 980,KND,Siemens,Fanuc,etc

2.Manual chuck(320mm)Hydraulic chuck(solid and hollow),pneumatic chuck

3.Hydraulic tailstock,pneumatic tailstock

4.Automatic feeder

5.Horizontal six-station turret,eight-station turret,tool row

Specifications

Max swiming over the bed   500mm

Max swiming over pallet     300/290mm

Max the workpiece length   750/1000mm

Bed foot structure                 Overall bed foot/Separate bed foot

Lathe bed width                   400/360mm

Main transmission form      Independent spindle,Three gears

Speed mode                         Frequency stepless speed

Range of spindle speed    150-2000/36-1600r/min

The form of the spindle head   8-D/8-A2

Hole diameter of spindle        82/70mm

Spindle centering axial taper  1:4

Spindle taper                       1:20

Chuck diameter            250(320)/250mm

Main motor power          7.5kw

Turret maximum stroke      X:320/300mm  Z:760/1020mm

Fast-moving feed           X:6000mm/min  Z:8000mm/min

Repeat posetioning accuracy    X:0.01mm   Z:0.015

Workpiece accuracy        IT6-IT7

Workpiece surface roughness  Ra1.6

Diameter of tailstock quill     75/70mm

Tailstock quill stroke          180/120mm

Taper of tailstock quill        MT5

Repeat positioning accuracy   0.008mm

Section of turning tool        25mmx25mm

The size of the machine      2650/3200x1600x1700/2300/2600x1500x1600(LxWxH)

Net weight of the machine     3200/3500

If you are interested in CJK6150 cnc lathe machine , welcome to leave a message or send the inquiry to understand the details of machine.
