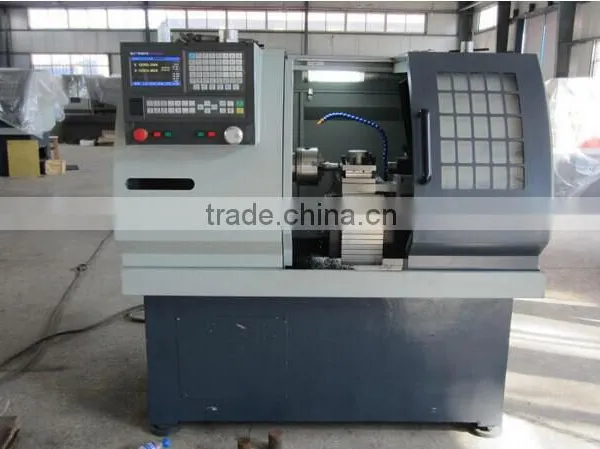

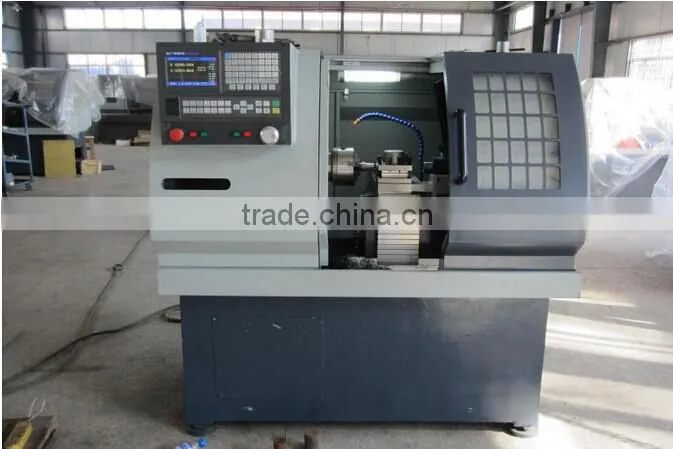

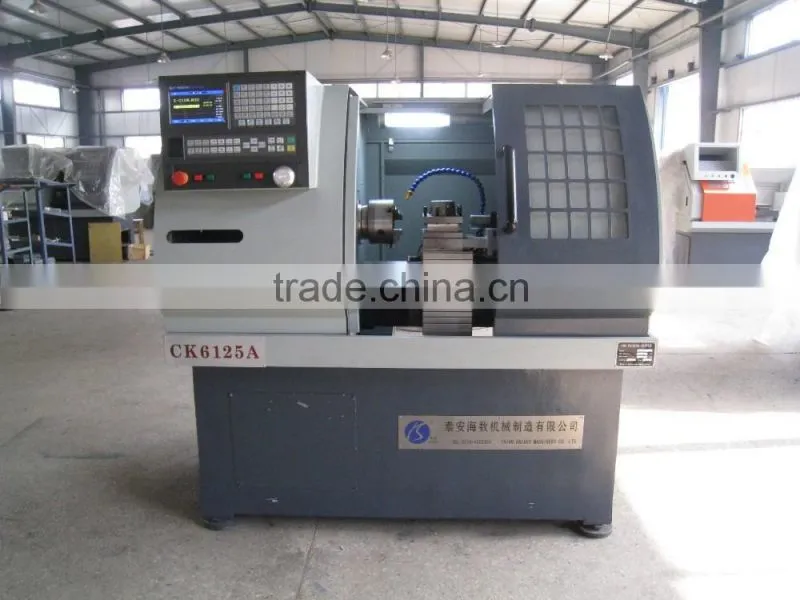

cnc turning machine CK6130A mini lathe
Standard configuration:
CNC system: GSK928,
Manual chuck ,
Manual tailstock,
Vertical four-station electric turret,

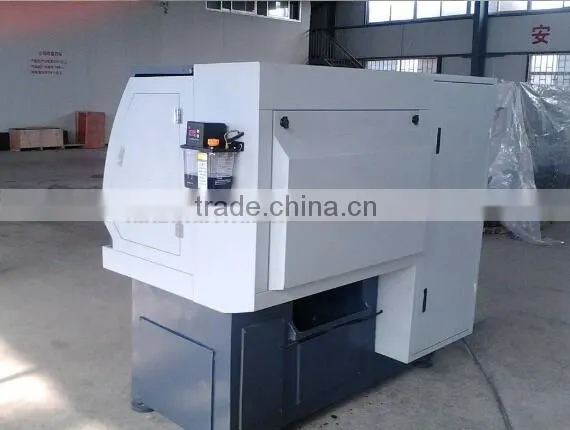

Automatic lubrication system,
Turning the cooling system.

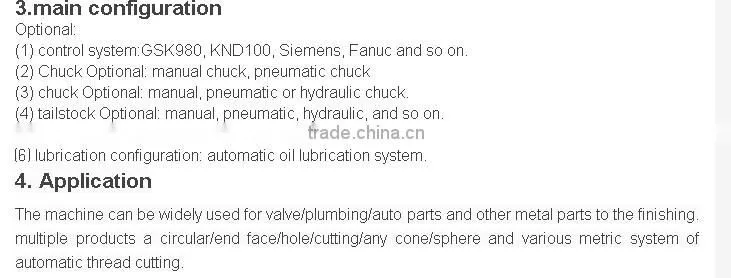

High profile CK6130A cnc lathe machine price from haishu Select configure
CNC system: GSK980, KND, Siemens, Fanuc, etc.,
Hydraulic chuck (solid and hollow), pneumatic chuck, manual collet, pneumatic collet;
Hydraulic tailstock, pneumatic tailstock,
Automatic feeder,
Horizontal six-station turret, tool row.
Item |
Unit |
Specifications |
|
|
|

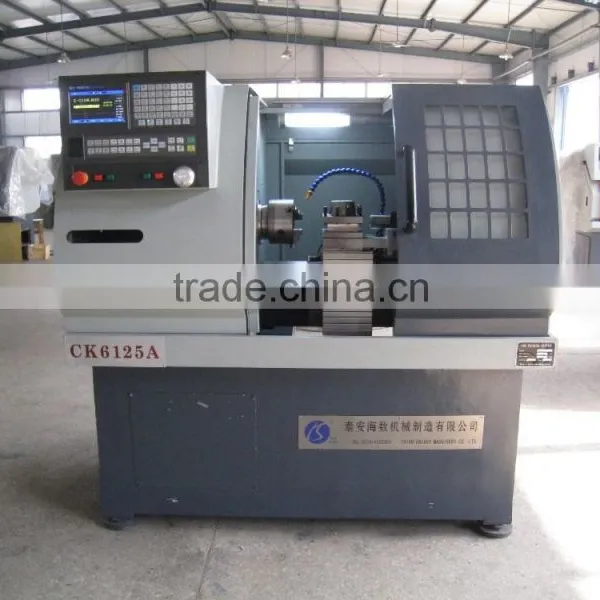

CK6125A |
CK6130A |
Max. rotation diameter over bed |
mm |
Φ300 |
|
Max. rotation diameter over pallet |
mm |
Φ100 |
|
Max. workpiece length |
mm |
Collet 320/Chuck240 |
Collet 400/Chuck320 |
Spindle head form |
|
A2-5 |
|
Spindle bore |
mm |
Φ48 |
|
Trombone hole diameter |
mm |
Φ40 |
|
X/Z repeat positioning accuracy |
mm |
0.012/0.013 |
|
X/Z maximum stroke |
mm |
280/350 |
280/400 |
X/Z fast-moving feed |
mm/min |
5000/10000 |
|
Spindle speed range |
r/min |
150-2200 |
|
Tailstock quill taper |
|
Morse 4 |
|
Tailstock quill stroke |
mm |
90 |
100 |
Main motor power |
kw |
3 |
|
Overall dimensions (L×W×H) |
mm |
1650×1150×1500 |
1770×1200×1600 |
Net weight |
kg |
1000 |
1220 |
If you are interested in cnc turning machine CK6130A mini lathe, welcome to leave a message or send the inquiry to understand the details of machine.
