CNC Lathe Machine for Turning Aluminum Metal
- Qing Dao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 400mm | Place of Origin | Shandong, China | |
| Brand Name | HaiShu | Model Number | CK6136H | |
| Voltage | 220V/380V | Power(W) | 5.5KW | |
| Dimension(L*W*H) | 2400*1450*1650 | Weight | 1800kg | |

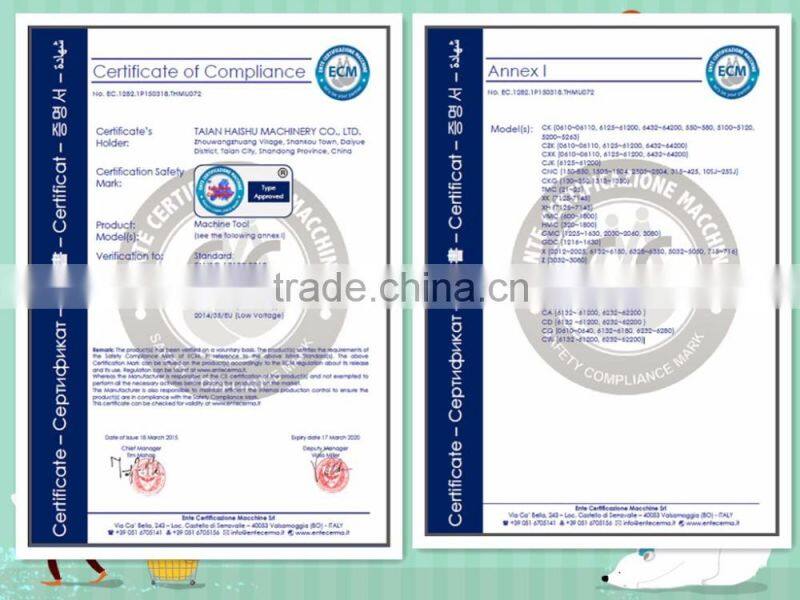

| Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

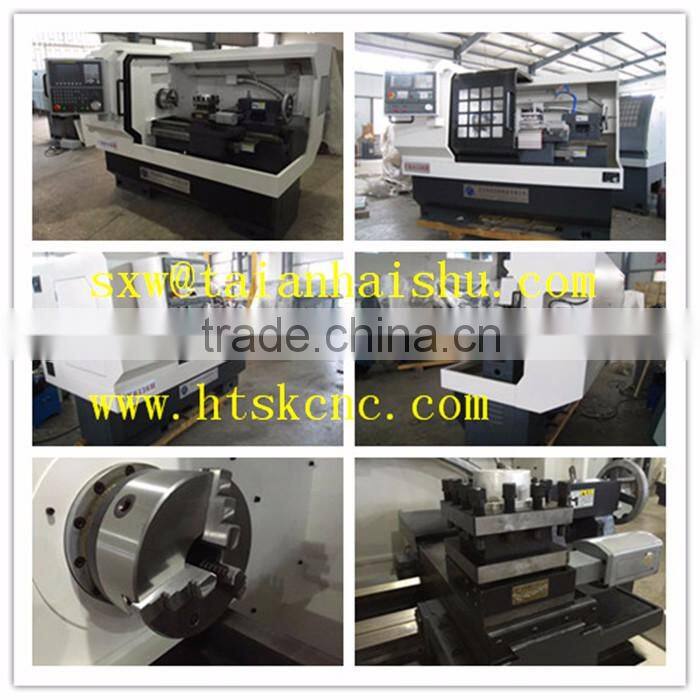

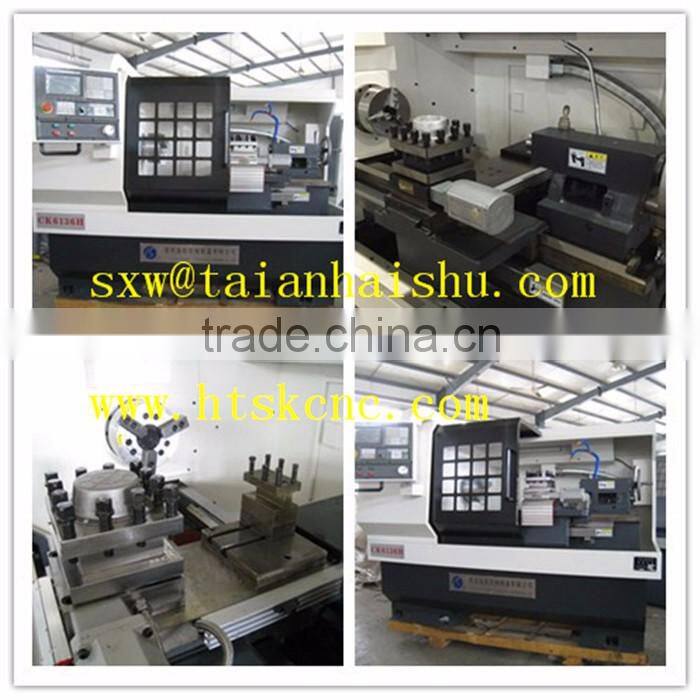

CK6136H CNC Lathe Machine
(high precision, high speed)
1. Technical parameters
Item | Project name | Technical paramaters |
technical specifications | Max.swiming over the bed dia. (mm) | Φ420 |
Max.swiming over pallet(mm) | Φ210 | |
Max.the workpiece length(mm) | 750 | |
Main transmission | Main transmission form | Independent spindle; frequency conversion stepless |
Number of spindle speeds | stepless | |
Range of spindle speed(r/min) | 200~3000 | |
The form of the spindle head | NO.6 A2type | |
Spindle bore(mm) | Φ58 | |
Chuck dia. (mm) | Φ200 | |
Main motor power(kw) | 5.5kw | |
Feed system | Turret maximum stroke(mm) | X - axis: 295 Z - axis:750 |
Fast-moving feed(mm/min) | X - axis:6000 Z - axis:8000 | |
Repeat positioning accuracy(mm) | X - axis:0.01 Z - axis:0.015 | |
Workpiece accuracy | IT6-IT7 | |
Workpiece surface roughness | Ra1.6 | |
tailstock | Dia. of tailstock quill(mm) | Φ60 |
Tailstock quill stroke(mm) | 120 | |
Taper of tailstock quill | MT4 | |
Tool post | Standard accessories | 4 station electric tool |
Opinional accessories | Horizontal 6,8-station electric turret or gang-type tool camier | |
Repeat positioning accuracy(mm) | 0.008 | |
Section of turning tool(mm) | 20*20/25*25 | |
Size and weight | The size of the machine (length*width*height)(mm) | 2150*1450*1650mm |
Net weight of the machine(kg) | 1800 |
2. Main features
1.) big swim over the bed dia (Φ420mm)
2.) high spindle speed (3000rpm)
3.) main motor power is 5.5kw
4.) horizontal flat bed structure
5.) X-axis maximum stroke (290mm)
6.) the guide rail width (335mm)
7.) independent spindle and frequency conversion stepless
8.) Feed of X Z axis are driven by ball screw with servo-motor
9.) The spindle bore dia is bigger to 58mm,(usually is 52mm)
10.) the guideway use hyperacoustic quenching.
11.) Hardended and ground bed guide way coated with Turcite-B
12.) high pression ball screw, High rigid precision composite bearing structure
13.) ball screw and the guide surface combination use automatic lubrication system.
3. Configuration
(1)the controller system: GSK (Guangzhou), KND (Beijing), Guangtai, Simens (Germany), Fanuc (Japan)
(2) Chuck optional: manual, pneumatic or hydraulic chuck.
(3) Tailstock optional: manual, pneumatic, hydraulic.
(4) Turret optional: Vertical four, horizontal six, horizontal eight,gang-type tool carrier and ect
(5) Lubrication configuration: automatic oil lubrication system.
4. Uses
Suitable for rough turning and precision machining of steel castings, iron castings and other materials.
