Titanium Marine Use Plate Type Heat Exchanger Heat Exchanger Boat

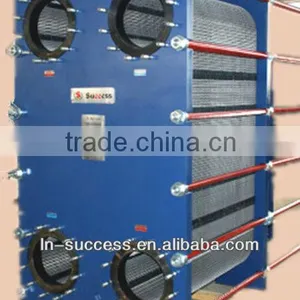

Titanium Marine Use Plate Type Heat Exchanger Heat Exchanger Boat thumbnail-1
Titanium Marine Use Plate Type Heat Exchanger Heat Exchanger Boat photo-1
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Liaoning, China
Brand Name:
SUCCESS, SUCCESS
Contact Supplier Request Quote Chat Now
Liaoning Success Thermal Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Liaoning, China
Brand Name SUCCESS, SUCCESS
Model Number M30, M30
Structure Plate Heat Exchanger
Liquid Flow Rate 1310m3/h
Maximum Working Pressure 1.6Mpa
Voltage 220v
Weight 4150kg, 4150kg
Dimension(L*W*H) 1815*1125*2000
Power(W) 100w
Certification Other, ISO9001:2008
Warranty 1 YEAR
After-sales Service Provided Overseas service center available

Specifications

heat exchanger boat
1 long functional life
2 more compact
3 imported material
4 high efficiency heat exchanger

Heat exchanger parameters



Parameters

S30D-I

Heat transfer area of plate m2

1.1

Chevron depth mm

3.5

Chevron angle º

1

60

2

120

Chevron normal pitch mm

10.9

Equivalent diameter mm

7

Hole diameter mm

300

Center Distance of holes mm

H

1320

W

598

Center distance of suspension mm

1564

Cross section ofsingle passage mm2

3272

Overall dimension of plate mm

L

1705

W

982

The max. heat transfer coefficient

                   (water to water)W/ m2.ºC

7500

The max. Working temp.ºC

180

The max. testing pressure Mpa

1.6

The max. flow rate M3/h

1310











































































 titanium marine use plate type heat exchanger heat exchanger boat

Company introduction



Liaoning Success Thermal Technology Co., Ltd is a highly dedicated company in the domain of development and manufacturing of heat exchangers at world-wide standards. The heat exchangers with up to 1500 m2 exchange surface are supplied for all usual industrial applications as well as for the ranges heating, climate, ventilation, food production, pharmaceuticals.



We are one of the largest manufacturers of plate heat exchangers, gaskets for plate heat exchangers, plates for plate heat exchangers, moulds for plate heat exchangers as well as other accessories related with plate heat exchanger in China.

Consistent development in the field of sealed plate heat exchangers has resulted in a wide variety of plate version with respect to surface structure, material and gaskets for various media on heat exchange.

Plate heat exchanger can offer additional flexibility by changing the number of plates. It can also be adapted to other thermal operating conditions.

Computer programs determine the optimum heat exchanger for your operation conditions based on latest technology.

We provide a wide range of plate heat exchangers to domestic and foreign customers with high quality and low price.



titanium marine use plate type heat exchanger heat exchanger boat



1.Plate Material

Stainless steel suitable for clean water, river water, edible oil and mineral oil

Titanium suitable for sea water, salt water, salt

Hastelloy suitable for sulfuric acid, hydrochloric acid, phosphoric acid



2.Design and Selection

The plate heat exchanger produces by our company strictly follows the rule listed in GB16409-1996 “plate heat exchanger”.



3.Overview

Plate heat exchanger is compact and efficient heat exchange equipment. After the assembly of plates, it forms a special channel which can generate turbulence. The turbulence can easily destroy the fluid boundary layer which greatly reduces thermal resistance and efficiently enhances the heat transfer.

titanium marine use plate type heat exchanger heat exchanger boat

titanium marine use plate type heat exchanger heat exchanger boat

Pls feel free to contact us as following for further communication:



Helen Export manager

Liaoning Success Thermal Technology Co., LTD

ADD: Xiliu Industry Park, Haicheng City, Liaoning Provience, China

TEL: 0086-412-3814777FAX: 0086-412-3824333

Mobile: 0086-138 897 03395

SKYPE: successhelen1
