heating exchanger air air high heat transfer efficiency M20
- 300 Set / Sets per Month
- Dalian
- T/T
- New Aluminum 15L Capapity air oil cooler for concrete mixer truck
- 12L Capapity air oil cooler for concrete mixer truck
- Standard New Oil Cooler for concrete mixer truck
- Standard Hydraulic Oil Cooler for Concrete Mixer Truck
- Aluminum Plate and Bar Hydraulic Oil Cooler for Concrete Mixer Truck
- Hydraulic Oil Cooler for Concrete Mixer Truck
Product Details
Condition: | New | Place of Origin: | Liaoning, China | Brand Name: | SUCCESS, SUCCESS |
Model Number: | M20, M20 | Structure: | Plate Heat Exchanger | Liquid Flow Rate: | 565m3/h |
Maximum Working Pressure: | 2.5Mpa | Voltage: | 220v | Weight: | 1950kg, 1950kg |
Dimension(L*W*H): | 1850*740*2025 | Power(W): | 100w | Certification: | Other, ISO9001:2008 |
Warranty: | 1 YEAR | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
1 long functional life2 more compact
3 reliable
4 high quality
5 over 10 years experience
Parameters | S20D-II | |
Heat transfer area of plate m2 | 0.85 | |
Chevron depth mm | 4 | |
Chevron angle º | 1 | 60 |
2 | 120 | |
Chevron normal pitch mm | 15 | |
Equivalent diameter mm | 8 | |
Hole diameter mm | 200 | |
Center Distance of holes mm | H | 1478 |
W | 341 | |
Center distance of suspension mm | 1810 | |
Cross section ofsingle passage mm2 | 2184 | |
Overall dimension of plate mm | L | 1746 |
W | 609 | |
The max. heat transfer coefficient (water to water)W/ m2.ºC | 7500 | |
The max. Working temp.ºC | 180 | |
The max. testing pressure Mpa | 2.5 | |
The max. flow rate M3/h | 565 |
No. | ASSY Area m2 | No.of plate | The max. testing pressure Mpa | Dimension mm | Theoretical weight(kg) | ||
L | W | H | |||||
1 | 80 | 95 | 2.5 | 1150 | 740 | 2025 | 1480 |
2 | 100 | 118 | 2.5 | 1250 | 740 | 2025 | 1590 |
3 | 120 | 142 | 2.5 | 1450 | 740 | 2025 | 1720 |
4 | 140 | 165 | 2.5 | 1650 | 740 | 2025 | 1830 |
5 | 160 | 189 | 2.5 | 1850 | 740 | 2025 | 1950 |
6 | 180 | 212 | 2.5 | 2050 | 740 | 2025 | 2060 |
Company Introduction
Liaoning Success Thermal Technology Co., Ltd is a highly dedicated company in the domain of development and manufacturing of heat exchangers at world-wide standards. The heat exchangers with up to 1500 m2 exchange surface are supplied for all usual industrial applications as well as for the ranges heating, climate, ventilation, food production, pharmaceuticals.
We are one of the largest manufacturers of plate heat exchangers, gaskets for plate heat exchangers, plates for plate heat exchangers, moulds for plate heat exchangers as well as other accessories related with plate heat exchanger in China.
Consistent development in the field of sealed plate heat exchangers has resulted in a wide variety of plate version with respect to surface structure, material and gaskets for various media on heat exchange.
Plate heat exchanger can offer additional flexibility by changing the number of plates. It can also be adapted to other thermal operating conditions.
Computer programs determine the optimum heat exchanger for your operation conditions based on latest technology.
We provide a wide range of plate heat exchangers to domestic and foreign customers with high quality and low price.
Certificates

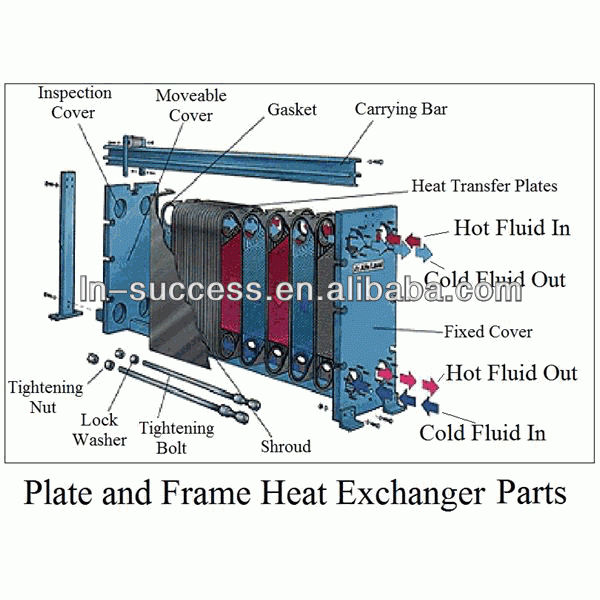

Working Principle
Contact
Address: Xiliu Industrial Park, Haicheng City, Liaoning Province China
Tel: 0086-412-3814777
Fax: 0086-3235096
Mobile: 0086-13940518316
Skype: Sutton.liu
Your any inquiry would be much appreciated by us.
We promise to give you the best service and products.
Regards.
